2-2.1b Hydraulic Gear Pump Electrical Components

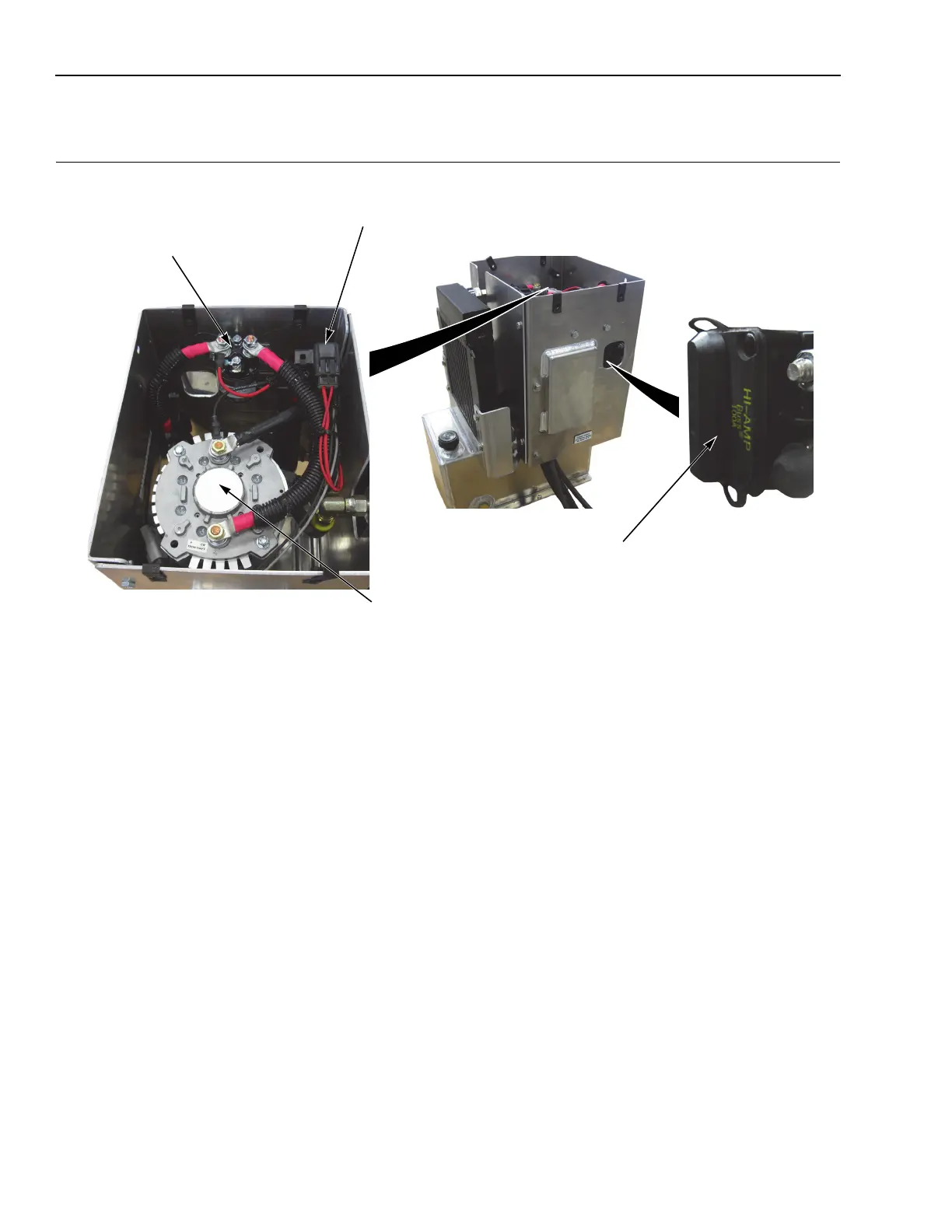

Figure 2-2: Hydraulic Gear Pump Electrical Components
1365A, 1366, 1367A
Hydraulic Gear Pump Electrical Components located in the main assembly consist of the following:
• ON / OFF Relay;
• 10 amp Fuse Holder;
• DC Motor;
• 100 amp Manual Reset Circuit Breaker.
100 amp Manual Reset Circuit Breaker
12 VDC Electric Motor
ON / OFF Relay
10 amp Fuse Holder
