Pilatus PC12 - Evaporator Module Disassembly Procedures; Figure 3 Brush Removal Details

Component Maintenance Manual
EFFECTIVITY: ALL
21-00-09
Page 3005
JULY 18/ 2007

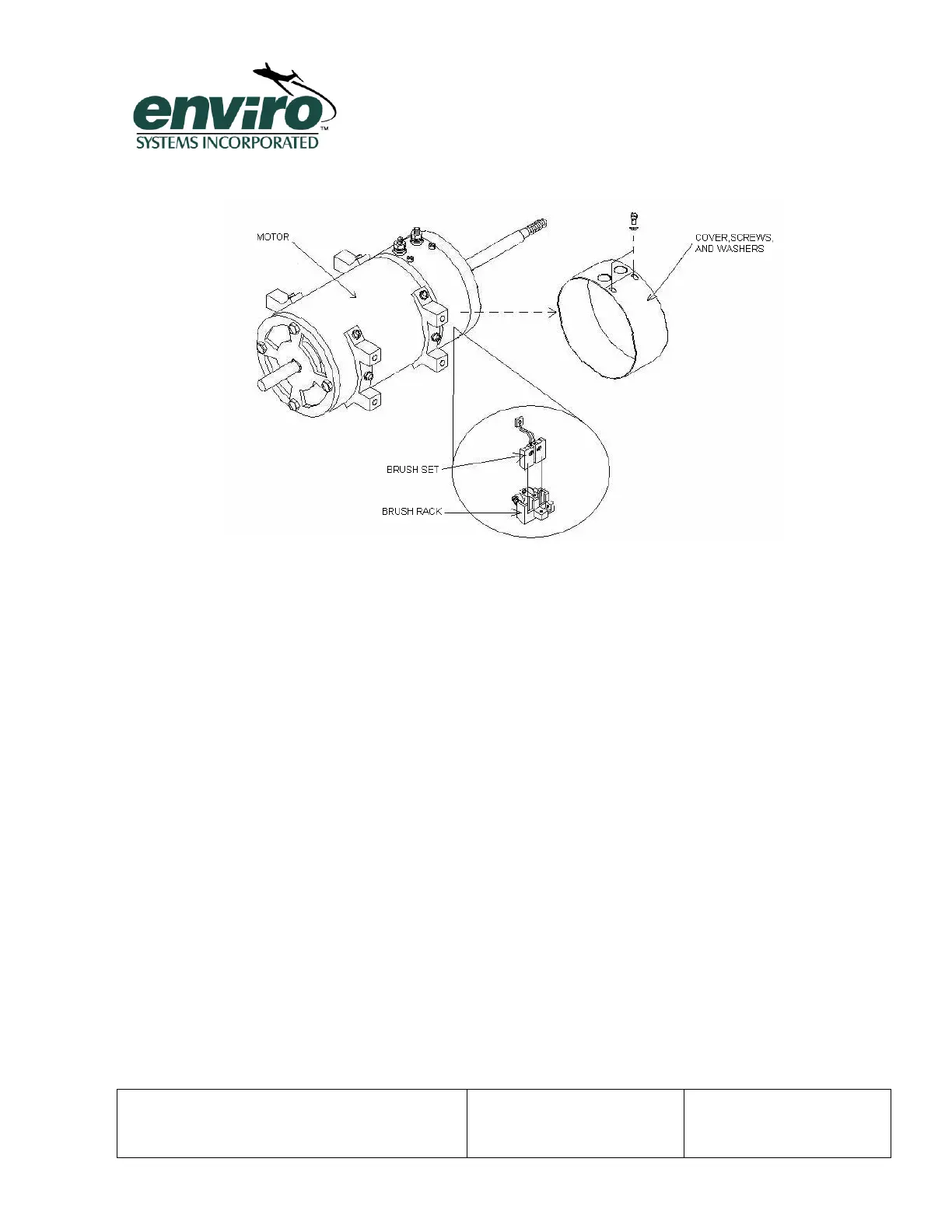

Figure 3 Brush Removal Details
SUBTASK 21-00-22-00-002
5.3 Evaporator Module Disassembly Procedures
(refe
r to Figure 10002):
5.3.1 Removal of Evaporator Module Assembly
5.3.1.1 Refer to aircraft maintenance manual for removal of Evaporator Module Assembly.
5.3.2 Removal of Expansion Valve
5.3.2.1 Disconnect refrigerant plumbing lines and cap off immediately.
5.3.2.2 Remove expansion valve from evaporator fitting and cap off fitting immediately.
5.3.3 Removal of Air Filter
5.3.3.1 Carefully pull air filter from evaporator. Air filter is secured to evaporator with Velcro.
