Pilatus PC12 - Figure 7 Belt Tensioning Reference

Component Maintenance Manual
EFFECTIVITY: ALL
21-00-22
Page 7006
JULY 21, 2011

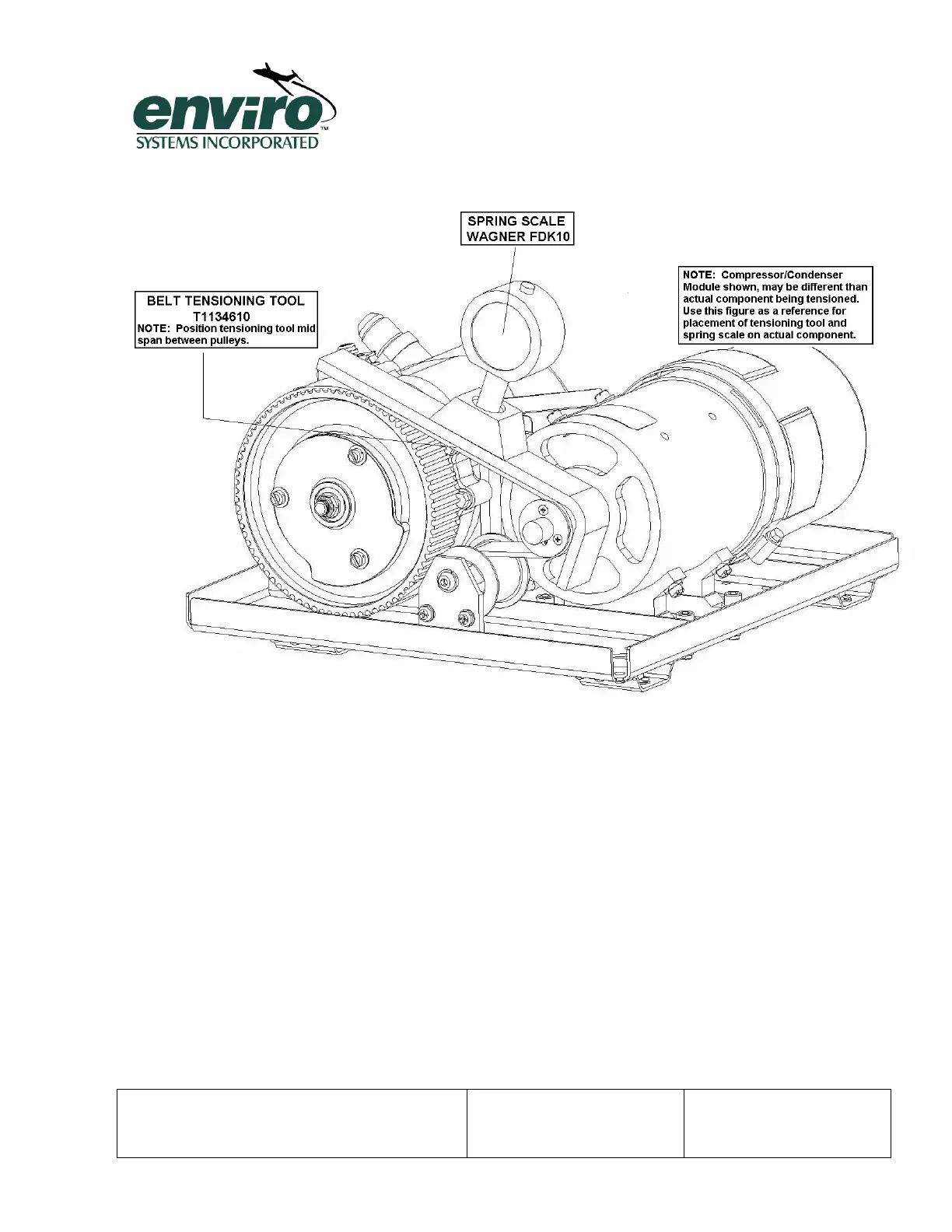

Figure 7 Belt Tensioning Reference
9.2.9 Assembly of Power Relay
9.2.9.1 Carefully slide power relay into position and attach using mounting hardware.
9.2.9.2 Connect electrical connections and install boots for protection.
9.2.10 Assembly of Hour Meter
9.2.10.1 Carefully slide hour meter into hour meter opening and secure with attaching
hardware (refer to table 1, Section 1.3 for torque specifications).
9.2.10.2 Connect electrical terminals.
9.2.11 Assembly of Compressor Condenser Module Assembly
9.2.11.1 Refer to aircraft maintenance manual for installation of compressor condenser module
assembly.
