PNOZ e1p
Operating Manual PNOZ e1p
21242-EN-13
| 21

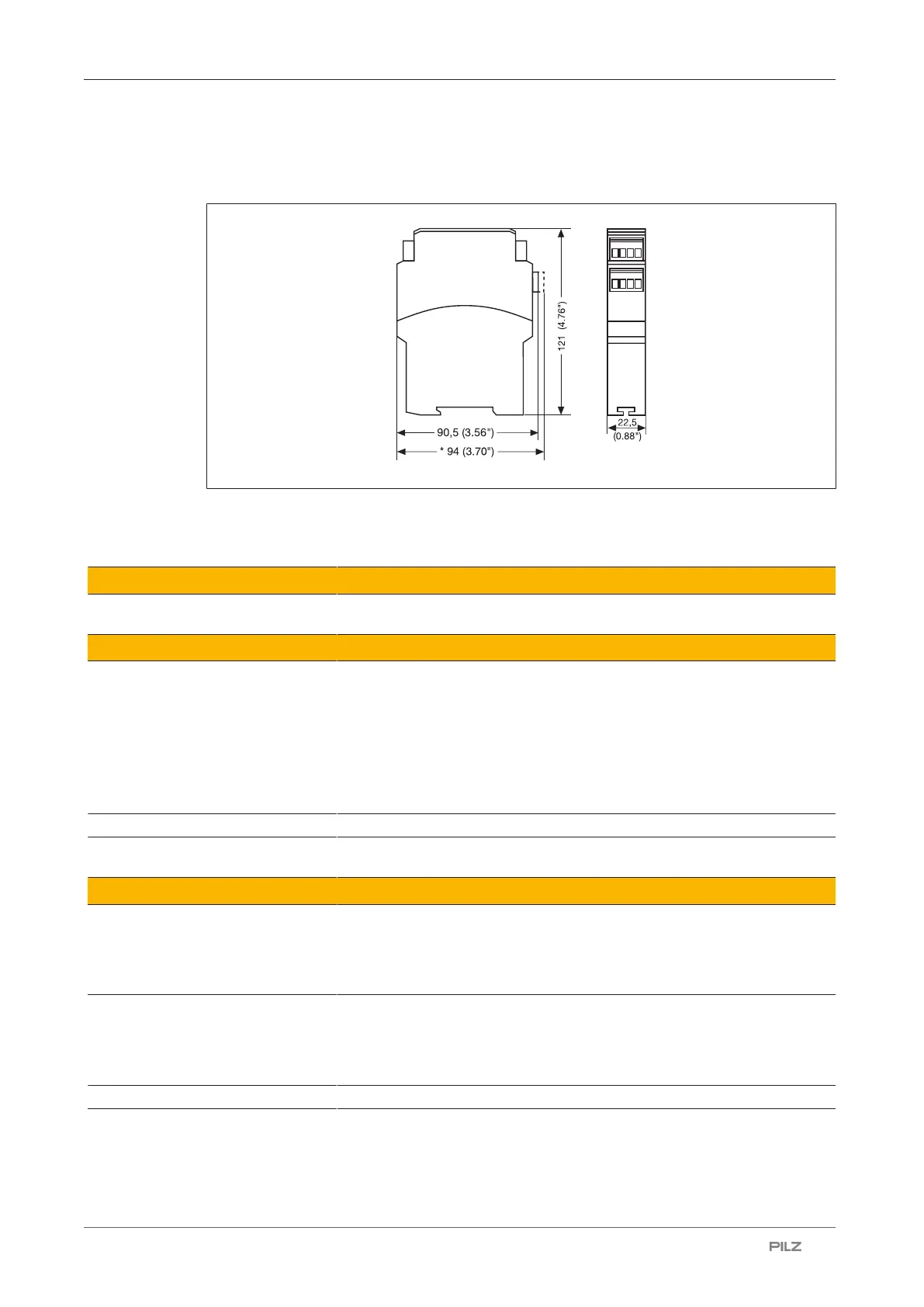

Dimensions
* With spring-loaded terminals
Technical details
General 774130 784130
Certifications
CE, EAC, TÜV, UKCA,
cULus Listed
CE, EAC, KOSHA, TÜV, UKCA,
cULus Listed
Electrical data 774130 784130
Supply voltage
Voltage 24 V 24 V
Kind DC DC
Voltage tolerance -20 %/+25 % -20 %/+25 %
Output of external power supply
(DC) at no load 2 W 2 W
Residual ripple DC 20 % 20 %
Duty cycle 100 % 100 %
External unit fuse protection F1
max. 6 A slow/10 A quick 6 A slow/10 A quick
Inputs 774130 784130
Voltage at
Input circuit DC 24 V 24 V
Start circuit DC 24 V 24 V
Feedback loop DC 24 V 24 V
Current at
Input circuit DC 5 mA 5 mA
Start circuit DC 5 mA 5 mA
Feedback loop DC 5 mA 5 mA
Min. input resistance at power-on 3.780 Ohm 3.780 Ohm
