Operating Manual PNOZ e1vp
21236-EN-06
14
CAUTION!
Do not connect the contacts from external contactors in series to the start
circuit.
Set delay time:
Set the delay time t
V
by connecting Y6 and Y7 to terminals A1, S11 and S21 in accordance
with the table.
Y6 A1 A1 A1 S11 S11 S11 S21 S21 S21
Y7 A1 S11 S21 A1 S11 S21 A1 S11 S21
tv [s] with PNOZ e1vp 10 s 0 0.15 0.5 1 2 3 5 7 10
tv [s] with PNOZ e1vp 300 s 0 15 25 50 100 150 200 250 300
Examples:
If you wish to set a delay time of 1 s for the unit type PNOZe1vp 10 s, connect Y6 to S11
and Y7 to A1. If you wish to set a delay time of 100 s for the unit type PNOZe1vp 300 s,
connect Y6 to S11 and Y7 to S11.

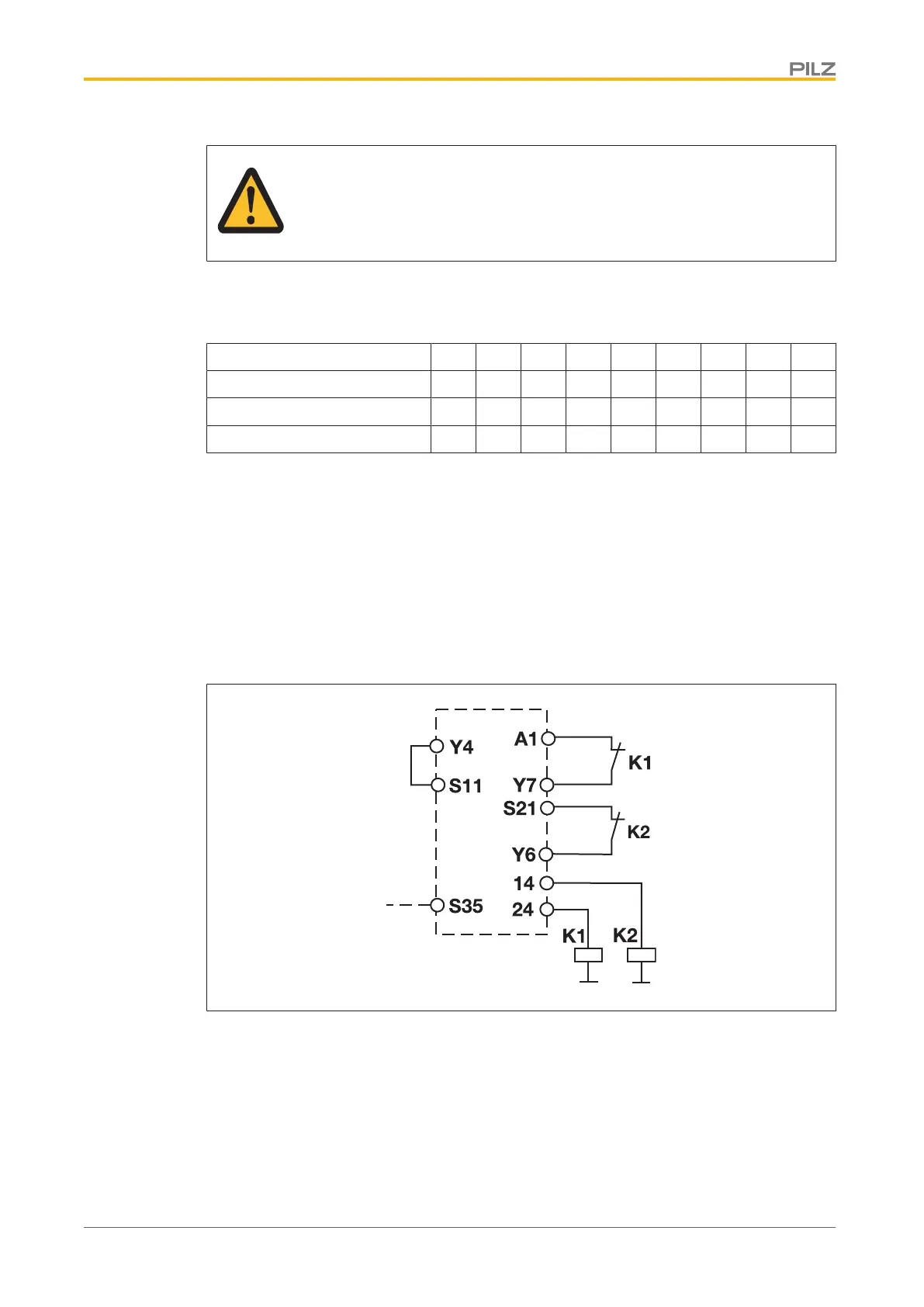

Examples
} Example 1:
Output 24, delayed: tv = 5 s
Feedback loop is connected to Y7 or Y6. Only a logic OR connection is possible with
this wiring at Y4.
