} Example 2:

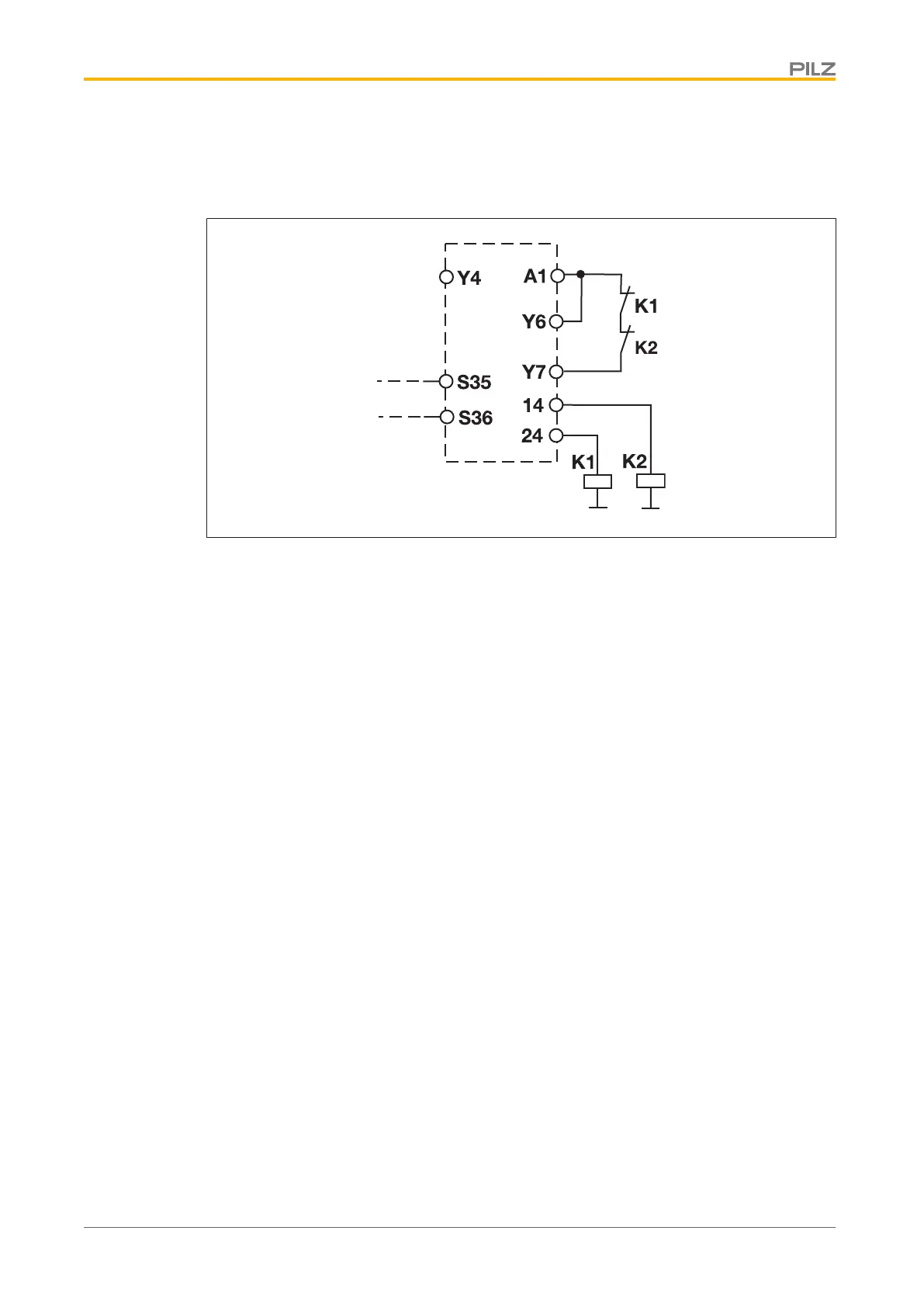

Both outputs are instantaneous, the feedback loop is connected to Y7. This wiring en-
ables a logic AND plus an OR connection, as Y4 has not been connected.
