Commissioning
Operating Manual PNOZ mm0.1p
1002101-EN-04
22
*Two loads may be connected to each safety output with advanced fault detection, even on
applications in accordance with EN IEC 62061, SIL CL 3. Prerequisite: Feedback loop is
connected, shorts across contacts and external power sources are excluded (e.g. through
separate multicore cables). Please note that, in the event of an error in the feedback loop,
the safety system switches to a safe condition and shuts down all the outputs.
Feedback loop Redundant output
Contacts from external contactors
K1
L+
L-
K2
O0 (O2)
O1 (O3)
IM0
L-

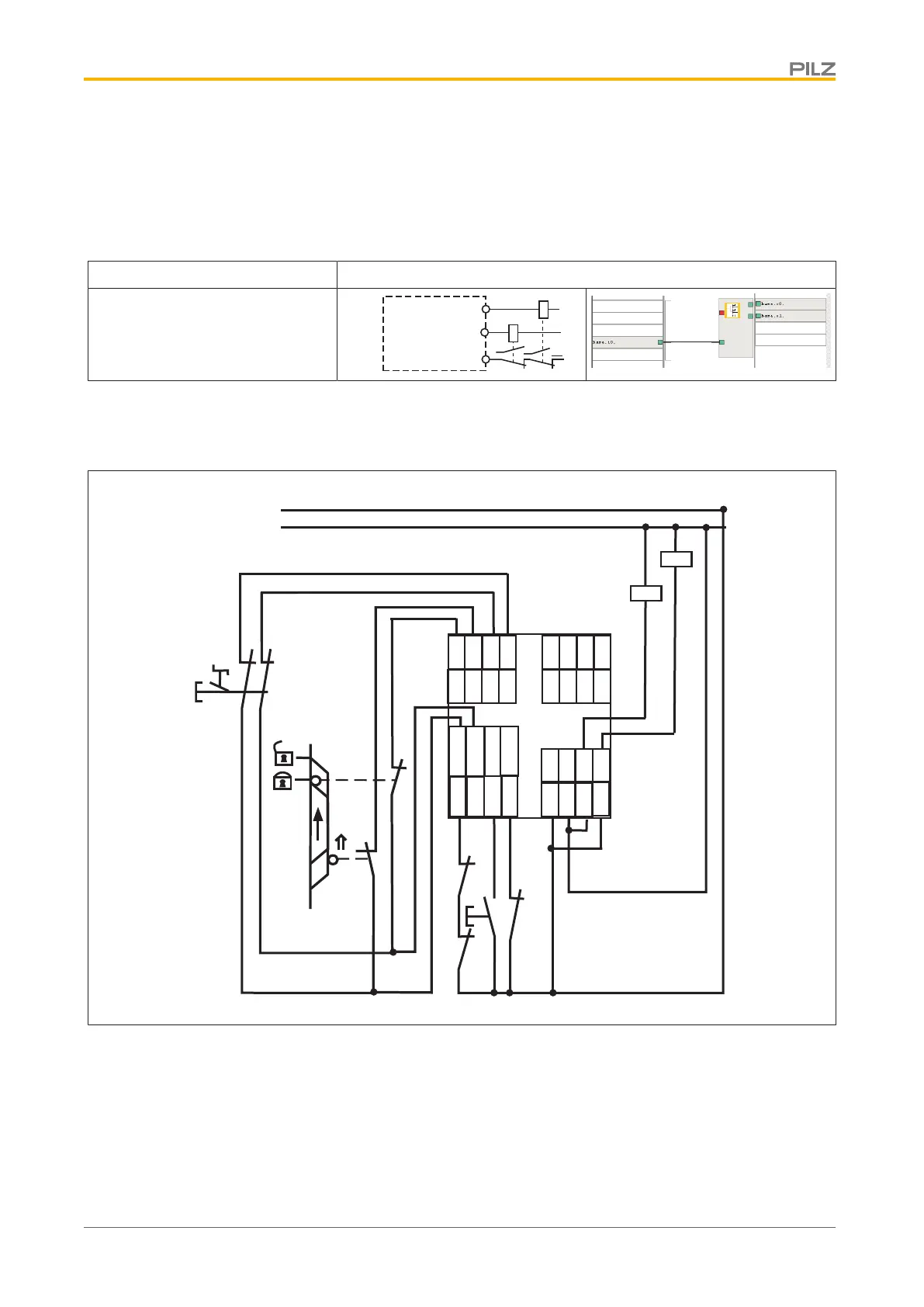

6.3 Connection example
Dual-channel E-STOP and safety gate wiring, monitored start (IM18), feedback loop (IM16)
IM0 IM1 IM2 IM3 I4 I5 I6 I7
I8 I9 I10 I11 I12 I13 I14 I15
IM16 IM17 IM18 IM19
T0M20 T1M21 T2M22 T3M23
O0 O1 O2 O3
A1 A2
24V
0V
K1
K2
S1
K2
K1
S2
S3
L+
L-
