Supplementary data
Operating Manual PNOZ mm0.1p
1002101-EN-04
35
9 Supplementary data

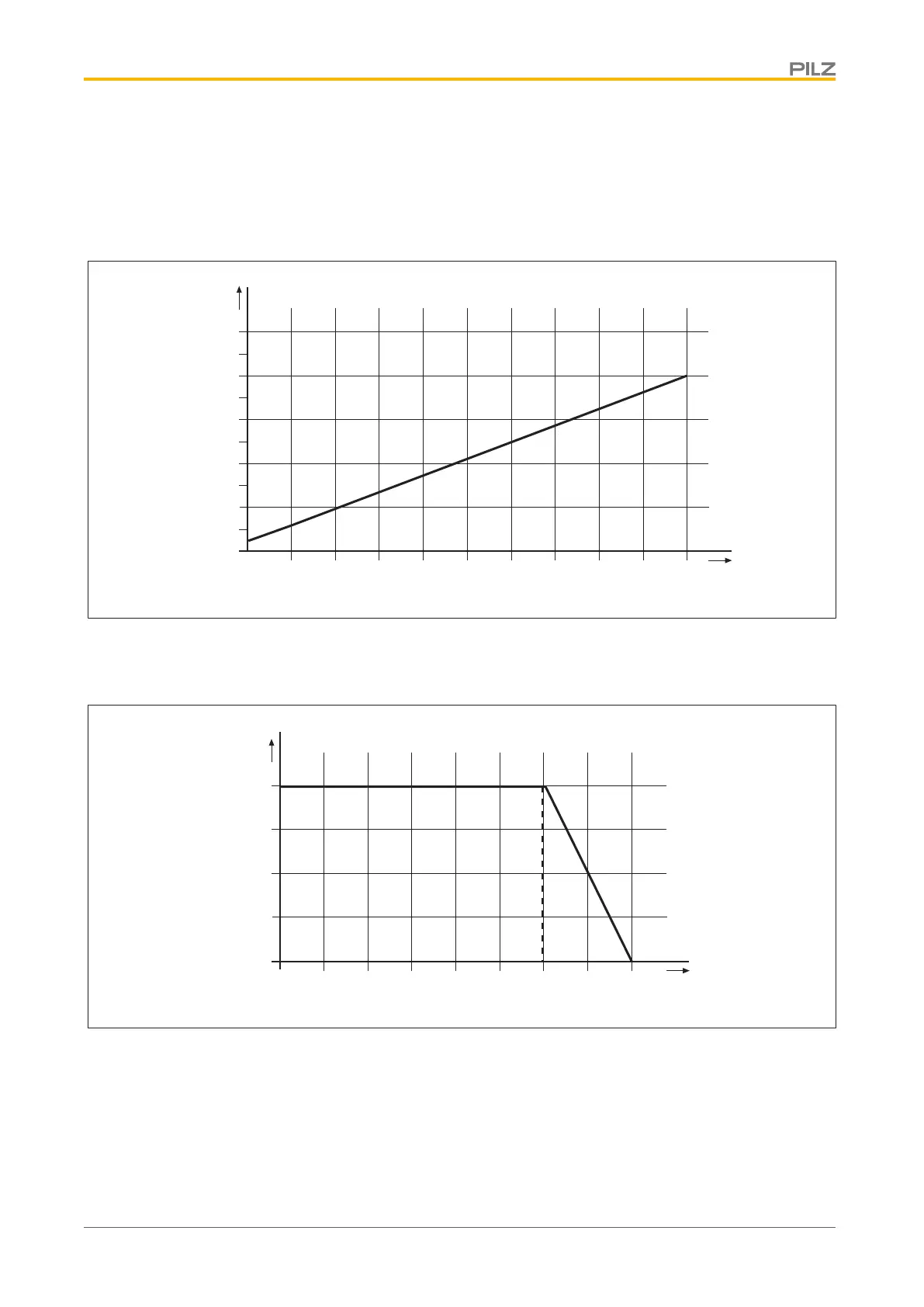

9.1 Maximum capacitive load C (μF) with load current I (A) at the
semiconductor outputs
4
8
12
16
20
0
0,2 0,4 0.6 0,8 1 1,2 1,4 1,6 1,8 2
I [A]
C [µF]
9.2 Maximum permitted total current of the semiconductor
outputs
100
200
300
400
0
1 2 3 4 5 6 7 8
IHL [A]
ICfg[mA]
0
I
Cfg
: Total current of the configurable semiconductor outputs (auxiliary outputs)
I
HL
: Total current: Semiconductor outputs (safety outputs)
