Operation
Operating Manual PNOZ mm0.1p
1002101-EN-04
26
7.2.1 Rotary knob
7.2.1.1 Function
The menu settings are made on the unit's display via a rotary knob. You have the option to
make the settings on the knob by hand or with a screwdriver. If you make the settings with
a screwdriver, the knob can remain within the unit.

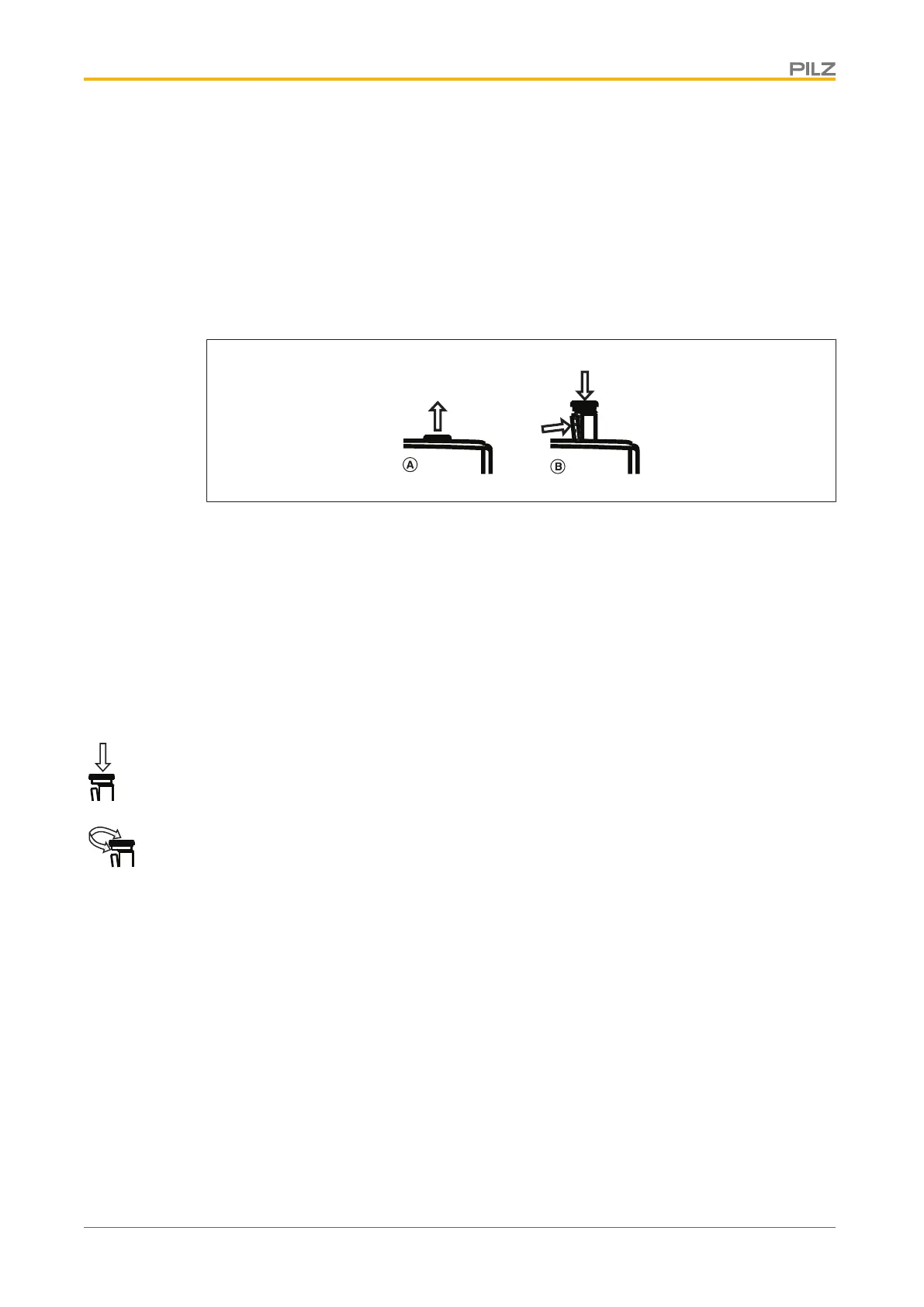

7.2.1.2 Pull out and retract the knob
[1]
[2]
Pull out knob (A):
} until it locks into position
} Release knob (B) and push it back into the unit:
– Press the bar on the side of the knob [1] towards the centre of the knob. This re-
leases the knob.
– Press the knob downwards [2] while keeping the bar pressed in
7.2.1.3 Rotate and press the knob
The settings are made via the rotary knob, as follows:
Press the knob
} Confirm selection/setting
} Switch to menu
Rotate knob
} Select menu level
