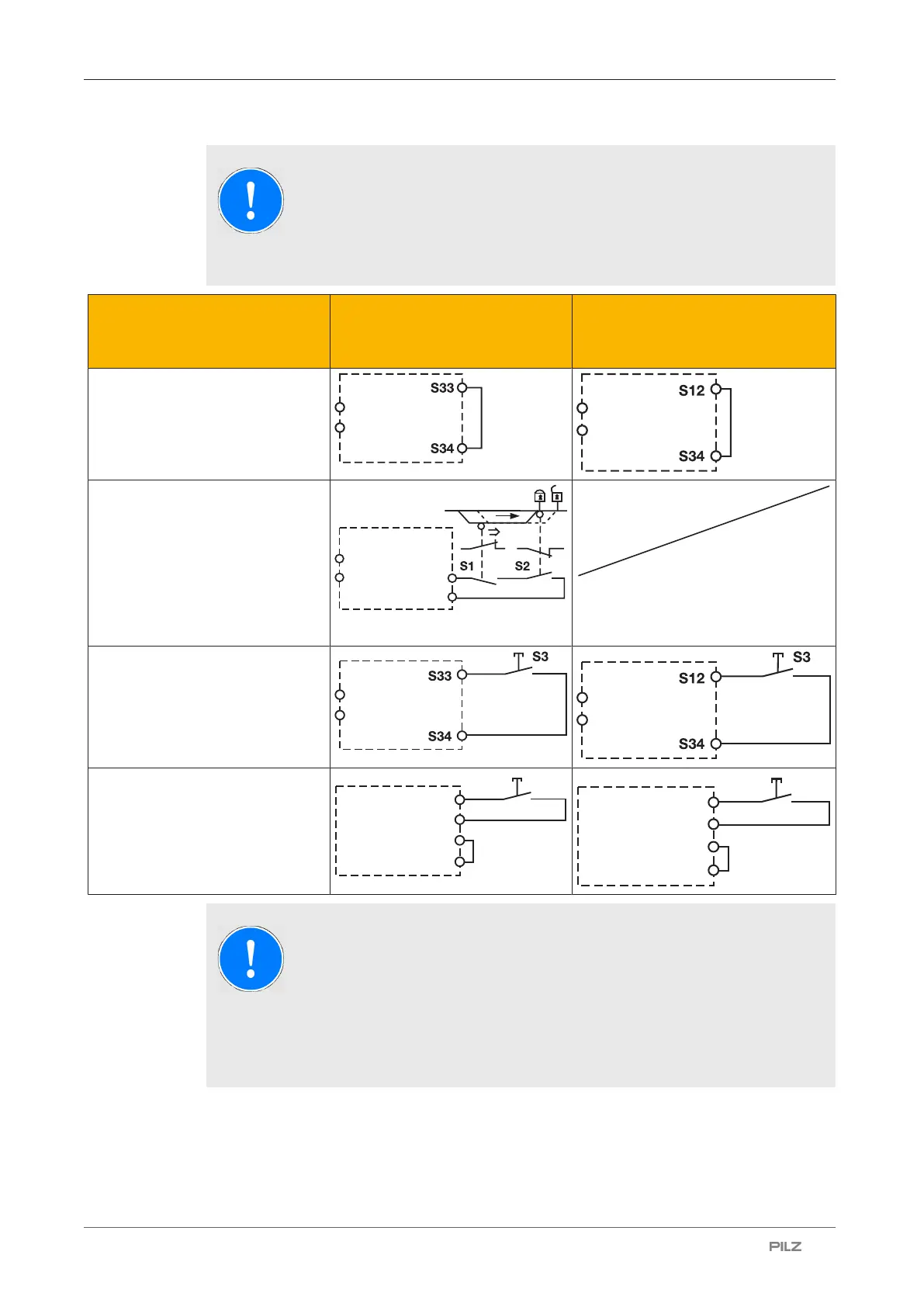

NOTICE
Operation with a light guard or safety switch
It must not be possible to switch off the supply voltage for the PNOZ X10.1
separately from the supply voltage for the light guard or safety switch.
Start circuit Single-channel, dual-channel
without detection of shorts
across contacts
Dual-channel with detection of
shorts across contacts
Automatic start
Y1
S37
Y1
S37
Automatic start with start-up test
Y1
S37
S33
S34
Simultaneity S1 and S2: 150ms
Manual start
Y1
S37
Y1
S37
Monitored start
S33
S34
S3
S37
Y1
S12
S34
S3
S37
Y1
NOTICE
In the event of an automatic start or manual start with bridged start
contact (fault):
The unit starts up automatically when the safeguard is reset, e.g. when the
E-STOP pushbutton is released. Use external circuit measures to prevent
an unexpected restart.
