- 5 -
Erreurs - Défaillances
Défaut de masse du PNOZ X3
- AC: la tension d’alimentation s’effondre
et les contacts desortie s’ouvrent.
- DC: un fusible électronique entraîne
l’ouverture des contacts de sortie. Une
fois la cause du défaut éliminée et la
tension d’alimentation coupée pour
environ 1 minute, l’appareil est à
nouveau prêt à fonctionner.
Défaut de fonctionnement des contacts de
sortie: en cas de soudage d’un contact lors
de l’ouverture du circuit d’entrée, un
nouvel réarmement est impossible.
LED "Power" éteinte: tension
d'alimentation non présente ou court-
circuit interne.
Faults
Earth fault on PNOZ X3
- AC operation: The supply voltage fails
and the safety contacts are opened.
- DC operation: An electronic fuse causes
the output contacts to open. Once the
cause of the fault has been removed
and operating voltage is switched off for
approx. 1 minute, the unit will be ready
for operation.
Contact failure: In the case of welded
contacts, no further activation is possible
following an opening of the input circuit.
LED "Power" is not illuminated if short-
circuit or the supply voltage is lost.
Fehler - Störungen
Erdschluss bei PNOZ X3
- Betrieb mit Wechselspannung: Die
Versorgungsspannung bricht zusammen
und die Sicherheitskontakte werden
geöffnet.
- Betrieb mit Gleichspannung: Eine
elektronische Sicherung bewirkt das
Öffnen der Ausgangskontakte. Nach
Wegfall der Störungsursache und
Abschalten der Versorgungsspannung
für ca. 1 min ist das Gerät wieder
betriebsbereit.
Fehlfunktionen der Kontakte: Bei ver-
schweißten Kontakten ist nach Öffnen des
Eingangskreises keine neue Aktivierung
möglich.
LED "Power" leuchtet nicht: Kurzschluss
oder Versorgungsspannung fehlt
S32
S34
S33
S31
S11
S22
S12
S21
S1
S3
S12
S34
S33
S11
S21
S32
S22
S31
S1
S2
S3
S12
S14
S13
S11
S21
S32
S22
S1
S2
S31

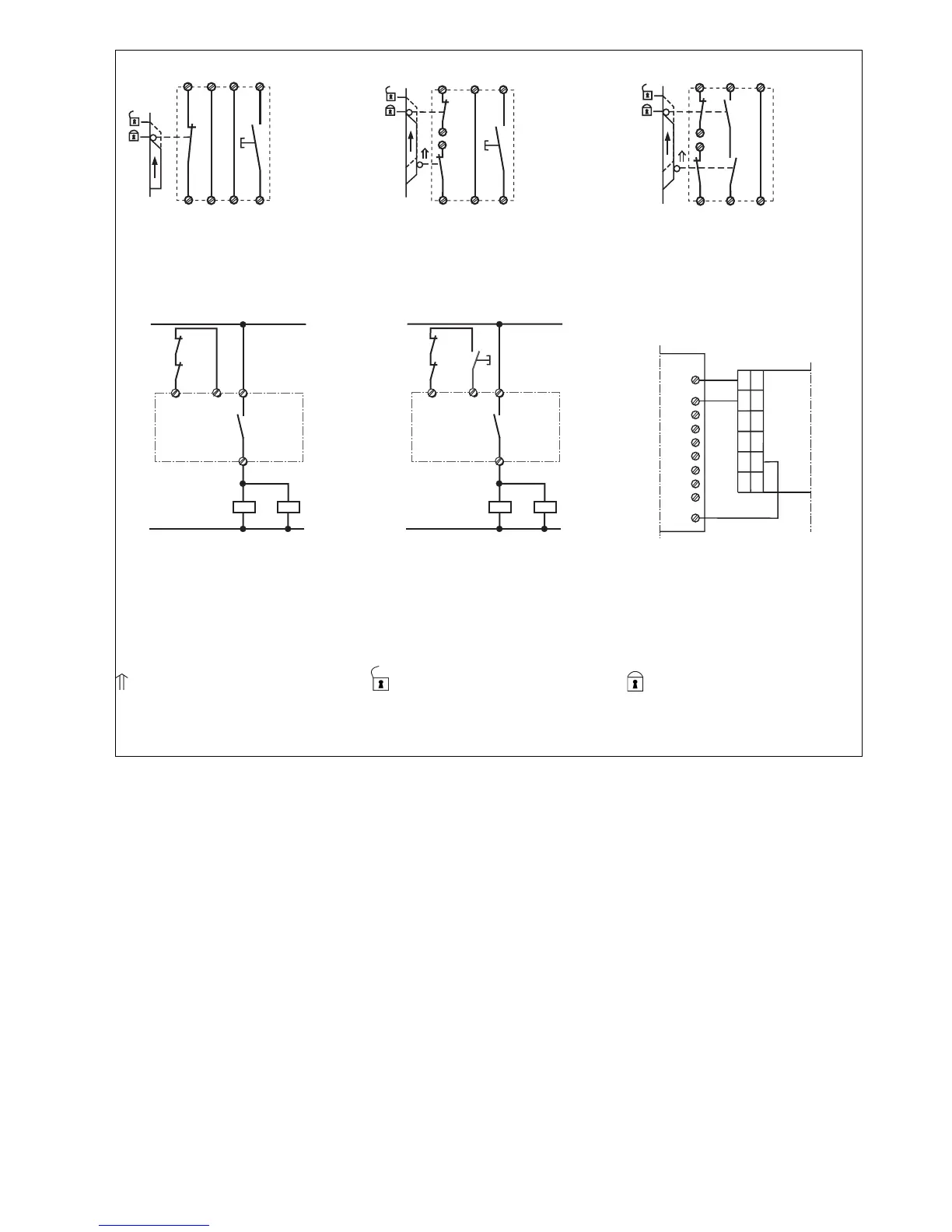

Fig. 7: Schutztürsteuerung zweikanalig,
automatischer Start/Two- channel safety gate
control, automatic reset/Surveillance de
protecteur, commande par 2 canaux,
validation automatique
Fig. 6: Schutztürsteuerung zweikanalig,
überwachter Start/Two-channel safety gate
control, monitored reset/Surveillance de
protecteur, commande par 2 canaux,
surveillance du poussoir de validation
Fig. 5: Schutztürsteuerung einkanalig,
überwachter Start/Single-channel safety gate
control, monitored reset/Commande par 1
canal, surveillance du poussoir de validation
betätigtes Element/Switch
activated/élément actionné
Tür nicht geschlossen/Gate open/
porte ouverte
Tür geschlossen/Gate closed/
porte fermée
S1/S2: NOT-AUS- bzw. Schutztürschalter/Emergency Stop Button, Safety Gate Limit Switch/Poussoir AU, détecteurs de position
S3: Starttaster/Reset button/Poussoir de réarmement
Fig. 9: wie Fig. 8 mit überwachtem Start/like
Fig. 8 with monitored reset/comme Fig. 8
avec surveillance du poussoir de validation
Fig. 8:Anschlussbeispiel für externe Schütze,
einkanalig, automatischer Start/Connection
example for external contactors/relays,
single-channel, automatic reset/Branchement
contacteurs externes, commande par 1
canal, validation automatique
Fig. 10: Anschlussbeispiel für Halbleiteraus-
gang/Connection of semiconductor output/
Câblage de la sortie statique
E0.0
+ 24V
E0.1
E0.2
E0.3
A0.0
A0.1
A0.2
A0.3
0V
SPS
S21
Y32
Y31
24
34
42
B2
A2
PNOZ X3
S22
14
S33
S34
14
K5 K6
13
S13 S14
K5
K6
1L1
1L2
14
K5 K6
13
S33 S34
K5
K6
1L1
1L2
S3
