– Mappings of the signal outputs to the sensor are automated by the SDD.
This prevents wiring errors and an expansion or reduction of the sensors is possible
without the need to change existing wiring.
– Wiring in accordance with IP20: Rapid installation in the control cabined is enabled.
– Wiring in accordance with IP67: Various passive junctions can be used (see Order
references for accessories [ 27]) to connect several sensors with only one
cable from the field in the control cabinet.
Further information on Safety Device Diagnostics can be found in Additional documents
that apply [ 7].

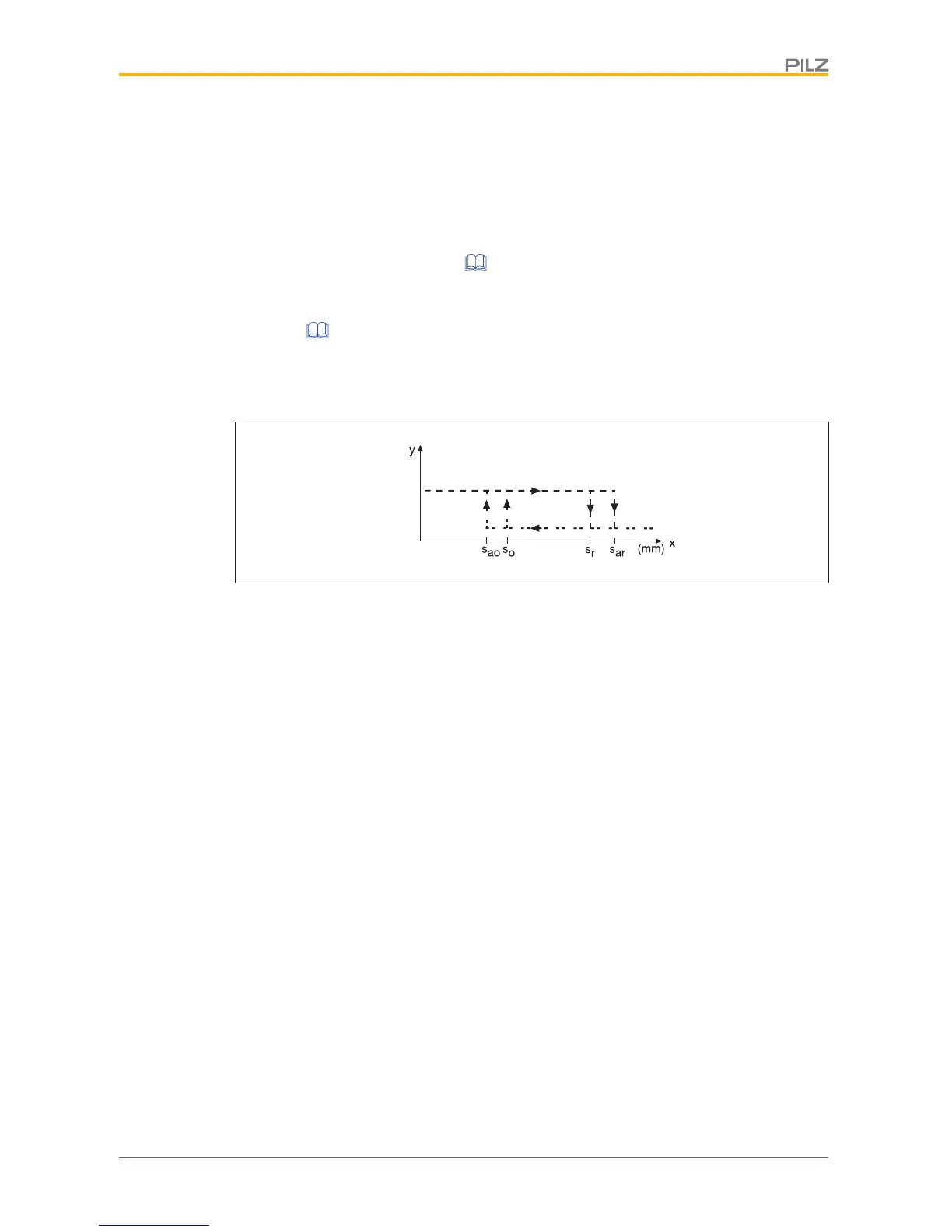

Operating distances
On
Off
Legend:
} S
ao
: Assured operating distance: 15 mm
} S
o
: Typical operating distance: 21 mm
} S
r
: Typical release distance: 32 mm
} S
ar
: Assured release distance: 40 mm
