Pilz PSEN cs1.1p - Single connection; Connection diagram, single connection without SDD

PSEN cs1.1p
Operating Manual PSEN cs1.1p
21095-EN-10
14
CAUTION!
Do not connect the signal output to 0 V!
If the signal output Y32 is connected to 0 V, the safety switch may be dam-
aged as a result. Connect the signal output Y32 to a consumer, e.g. to the
input on a control system, or leave the signal output unconnected. Also note
the max. current (see Technical details [ 23]).

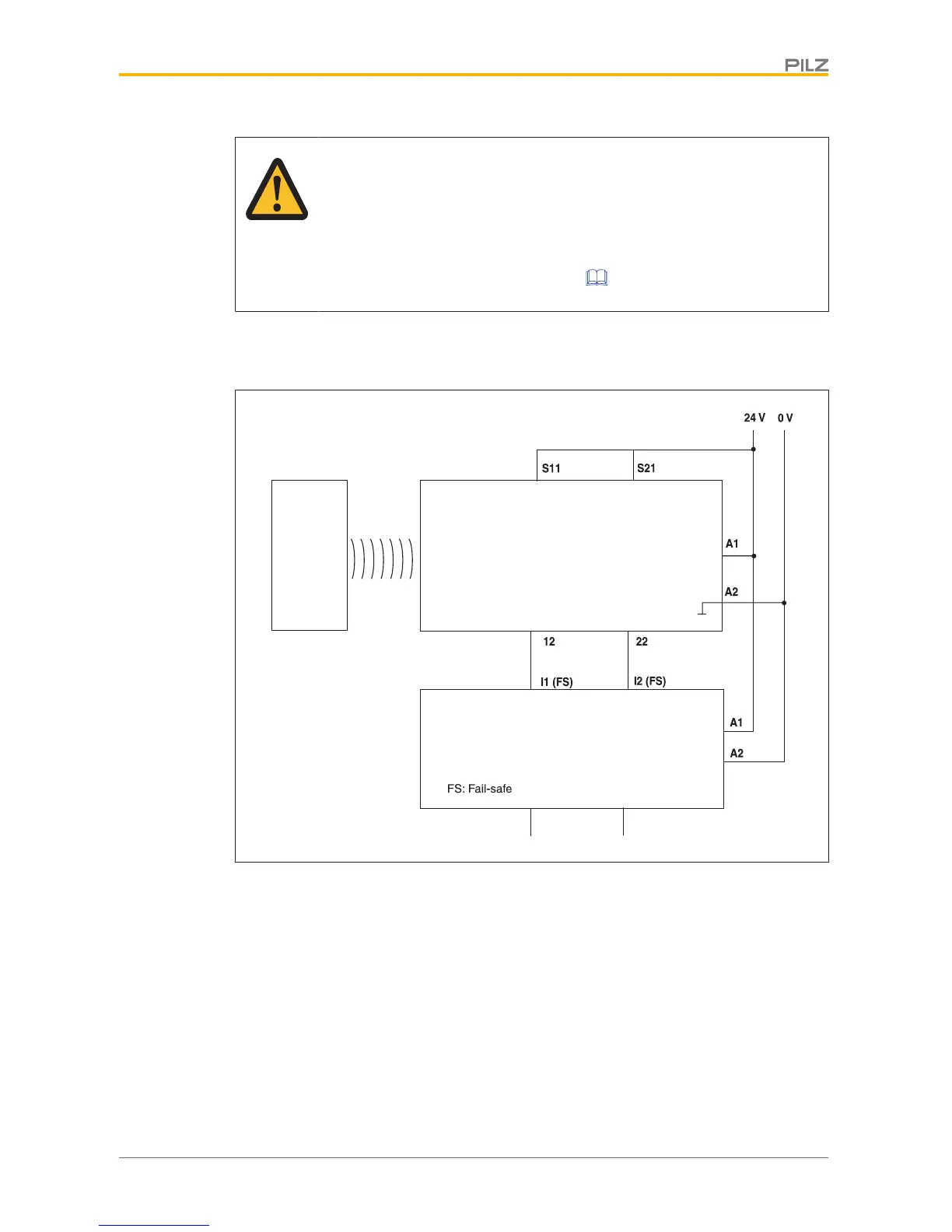

Single connection
Connection diagram, single connection without SDD
Actuator Receiver
Evaluation device
