PSEN sl-1.0p 1.1/1.1 VA

Operating Manual PSEN sl-1.0p 1.1/1.1 VA

1003821-EN-12

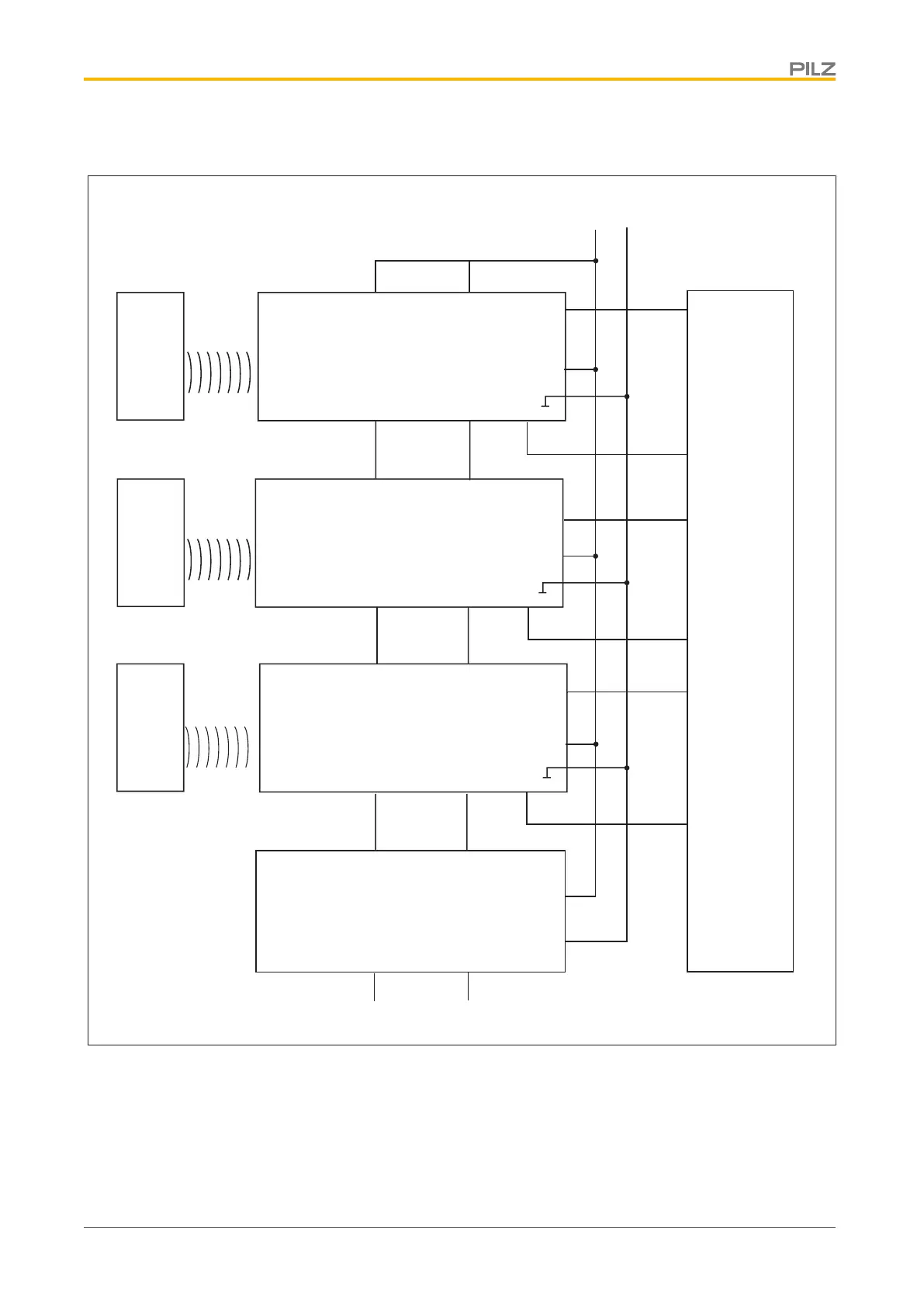

Connection diagram, series connection

Actuator

Safety switch

Evaluation device

Safety switch

S11 S21

24 V 0 V

S31

12 22

O1 (ST)

I1 (FS) I2 (FS)

FS: Failsafe

ST: Standard

S11 S21

12 22

S31

O2 (ST)

O3 (ST)

I1 (ST)

I2 (ST)

I3 (ST)

Y32

PLC

Y32
