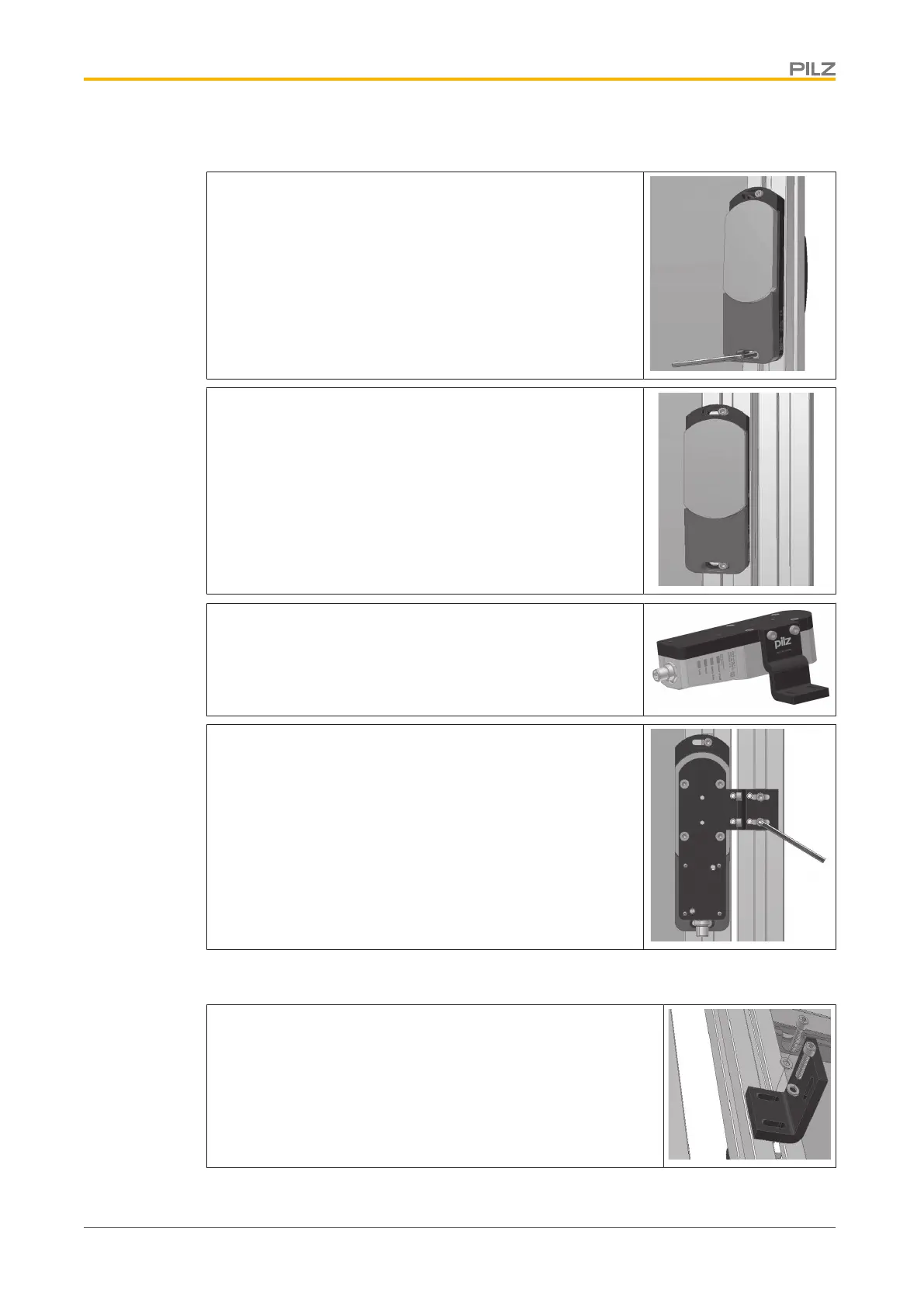

Installing on a swing gate
Align the actuator flush with the edge of the gate at the height
required and tighten the screws
Close gate.
Align the mounting bracket flush with the safety switch and
tighten the screws.
Align the safety switch and mounting bracket with the actuator
and tighten the screws.
Installing on a sliding gate
Align the actuator mounting bracket flush with the sliding gate
and tighten the screws.
