PSEN sl-1.0p 1.1/1.1 VA

Operating Manual PSEN sl-1.0p 1.1/1.1 VA

1003821-EN-12

Connection to evaluation devices

Make sure that the selected evaluation device has the following properties:

} 2-channel with feasibility monitoring

} OSSD signals are evaluated

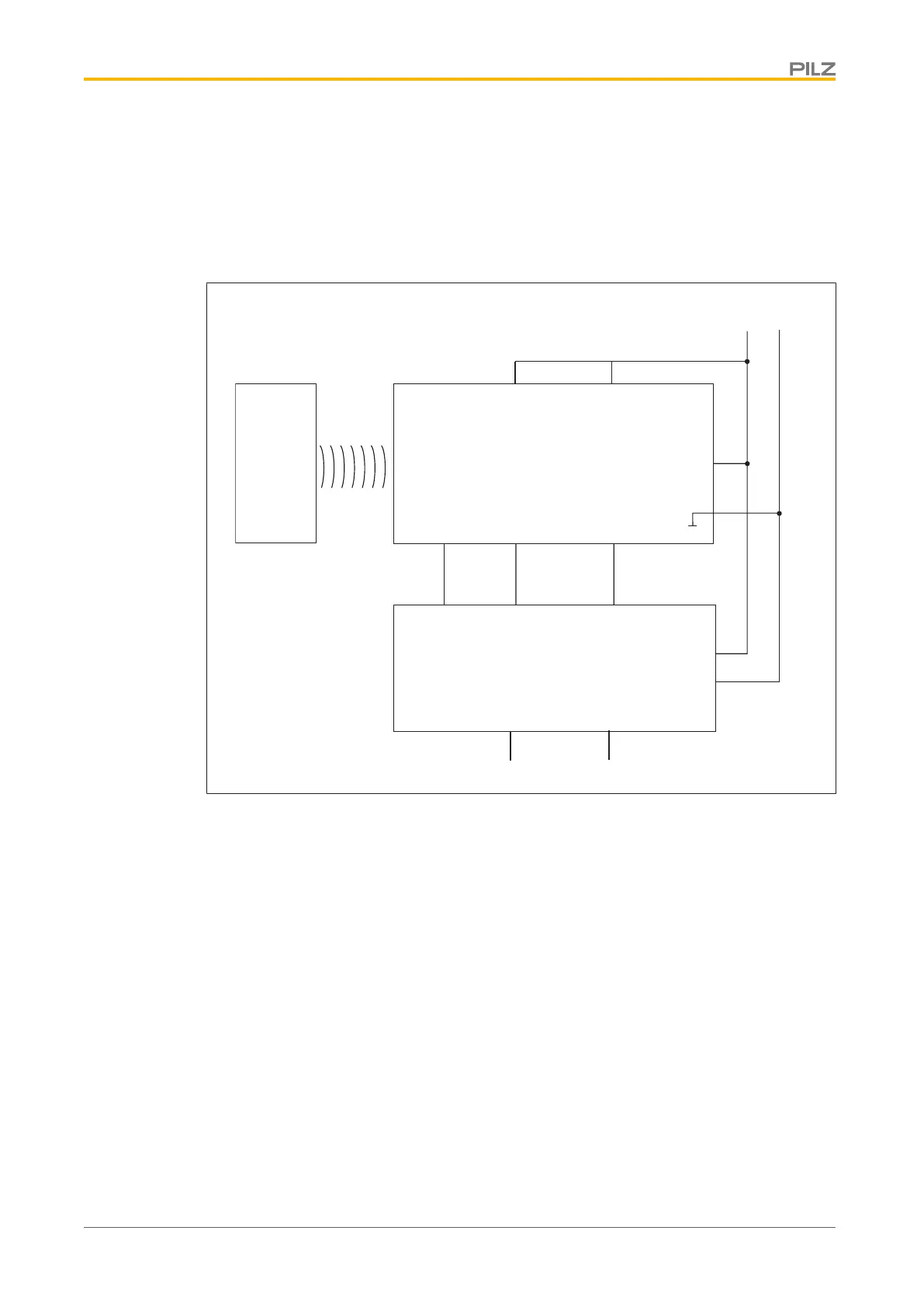

Connection diagram, single connection

S11 S21

24 V 0 V

S31 12 22

O1 (ST) I1 (FS) I2 (FS)

FS: Failsafe

ST: Standard

Actuator Safety switch

Evaluation device
