Pinnacle microguard - Appendix C: Replacement Parts; Controller Module Replacement Parts

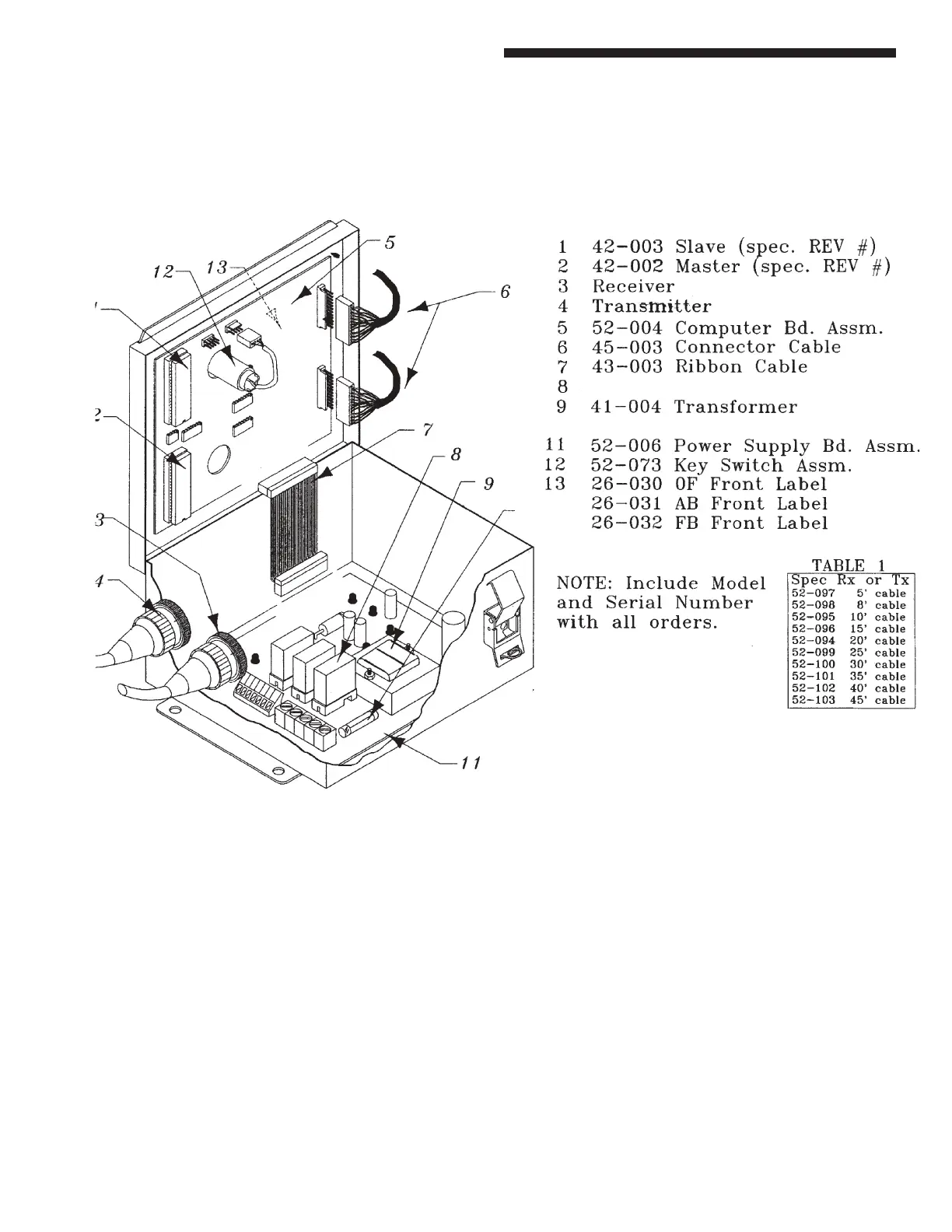

Figure 14: Controller Module Replacement Parts
C - 1
Appendix “C”
Replacement Parts
Figure 14: Controller Module Replacement Parts
32-001 or 32-098 (green) Safety Relay
NOTE:
42-002 & 42-003 computer chips, must specify square or rectangle shape.
32-001 White,Clear, or Blue are 2 pole Safety Relays.
32-098 Green is a 3 pole Safety Relay.
20-001 Glass, 20-022 SMT 1A slo-blo
11-183 Standard Single pedestal mounting bracket
11-184 Special Dual pedestal mounting bracket.
Has 2 mounting studs 90deg apart. Allows both
Emitter & Receiver pylon on 1 pedestal. Requires
SMB option on pylons
C-1
Appendix “C”
Replacement Parts
21-019 Rubber Shock-Mount (Male-Female) 1” dia x 1” tall
5/16-18 thread
