Pinnacle microguard - Pylon Replacement Parts

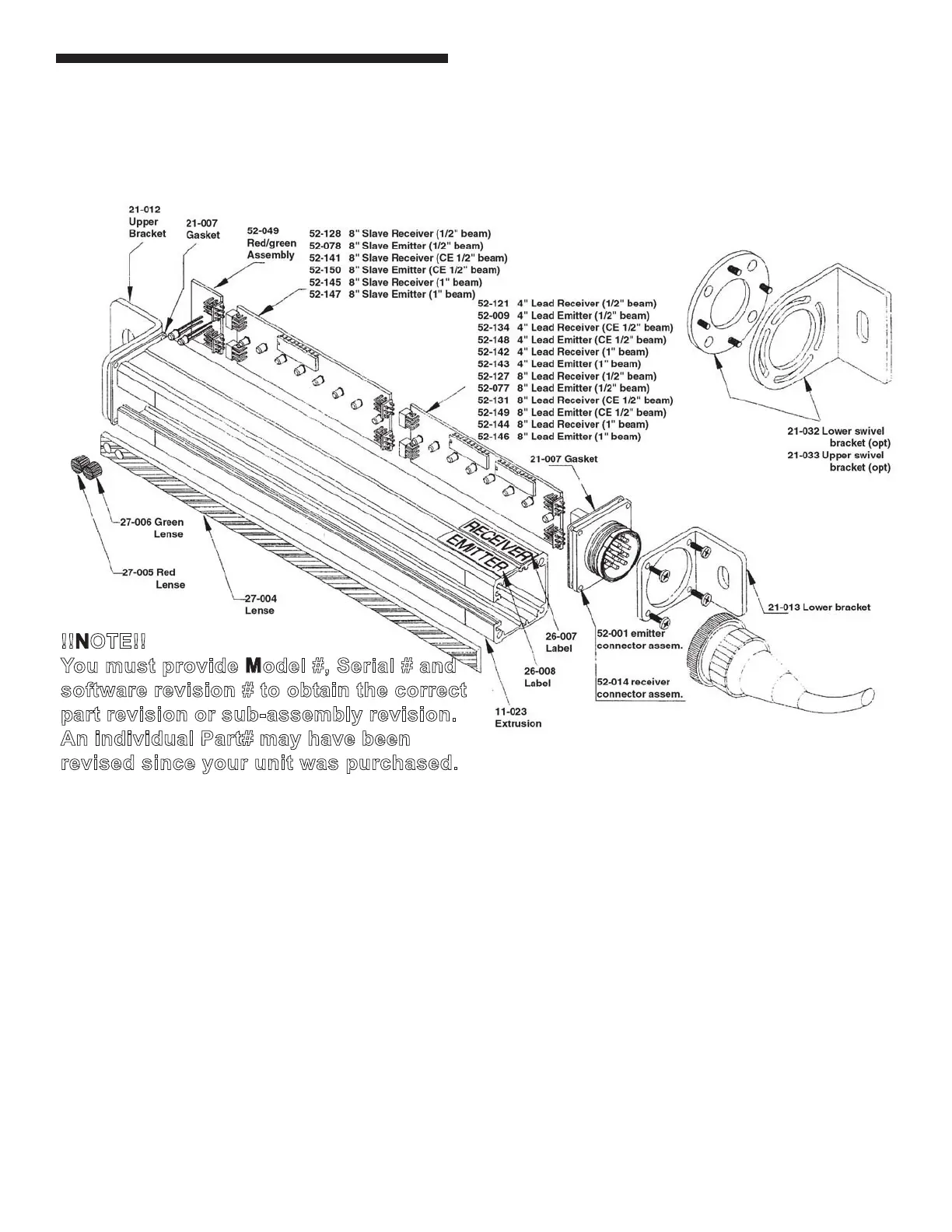

Figure 15: Pylon Replacement Parts
52-013 4” Slave receiver
52-080 8” Slave receiver
52-012 4” Lead receiver
52-079 8” Lead receiver
Part Numbers for Units made prior to 1998
C - 2
Appendix “C”
Replacement Parts
Figure 15: Pylon Replacement Parts
52-013 4” Slave receiver
52-080 8” Slave receiver
52-012 4” Lead receiver
52-079 8” Lead receiver
!!NOTE!!
You must provide Model #, Serial # and
software revision # to obtain the correct
part revision or sub-assembly revision.
An individual Part# may have been
revised since your unit was purchased.
Part Numbers for Units made prior to 1998
Appendix “C”
Replacement Parts
C-2
