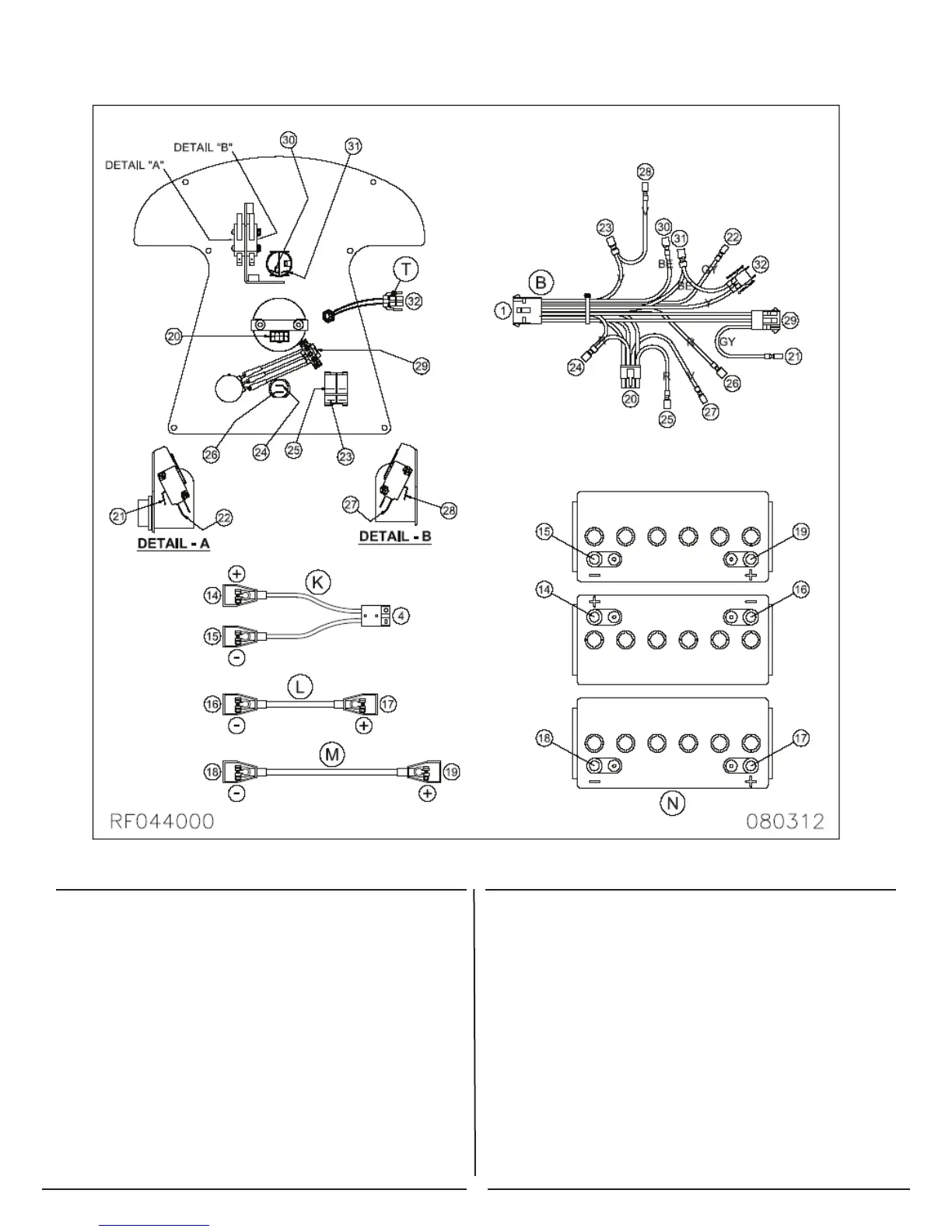

Connections (Traction) Continued
Ref. Part # Description Qty.
A MP432200 HARNESS, MAIN, TRACTION 1
B MP432100 HARNESS, CONT. PAN., TRAC. 1
C MP426800 HARNESS, MOTOR, BURNISH 1
D MP427000 HARNESS, SWITCH, TILT, HEAD 1
E MP427200 CABLE, BATTERY, 2 AWG, ASM. 1
F1 MP424200 MOTOR, 2000 RPM (20" & 30"), ASM. 1
F2 MP434100 MOTOR, 1800 RPM (24"), ASM. 1
G1 MP414800 BREAKER, CIRCUIT, 70A (20" & 24") 1
G2 MP444100 BREAKER, CIRCUIT, 50A (30") 1
H MP207000 SOLENOID, 36 VDC, SPNO 1
I MP234700 FUSE, GLASS, 3 AMP 1
J1 SA027500 CHARGER, 110V, 36V, ASM. 1
J2 SA027600 CHARGER, 220V, 36V, ASM. 1
J3 SA028100 CHARGER, AUSTRALIAN, ASM. 1
K MP279700 CABEL, BATT./ CONNECTOR 1
Ref. Part # Description Qty.
L MP238200 CABLE, BATTERY, 13.5", 1
M MP279800 CABLE, BATT./ CONNECTOR 1
N1 MP223500 BATTERY, 12V, LEAD ACID 3
N2 MP413600 BATTERY, 12V, SEALED 3
O MP426900 HARNESS, WIRING, TRANSAXLE 1
P MP424500 TRANSAXLE, 36 VDC, ASM. 1
Q MP409401 CONTROLLER, TRACTION, 1
R MP414900 BREAKER, CIRCUIT, 40 AMP 1
S MP254600 DIODE, 400VDC, 6 AMP, ASM. 1
T SA028000 LED, RED, REPLACEMENT, KIT 1
U MP318400 SWITCH, MICRO, 12V, 15A, 1" LEVER 1
V MP427500 WIRE, 10 AWG, RED, 3"L 1
W MP427600 WIRE, 10 AWG, RED, 16"L 1
X MP427700 WIRE, 10 AWG, BLACK, 12"L 1
