Pioneer AVIC-F77DAB Installation Manual

Black plate (11,1)
Violet/white (REVERSE-GEAR SIGNAL INPUT)
This is connected so that this product can detect whether
the vehicle is moving forwards or backwards. Connect the
violet/white lead to the lead whose voltage changes when
the reverse gear is engaged. Unless connected, the sensor
may not detect your vehicle travelling forward/backward
properly, and thus the position of your vehicle detected by
the sensor may be misaligned from the actual position.
When you use a rear view camera, please make
sure to connect this lead. Otherwise you cannot
switch to the rear view camera picture.

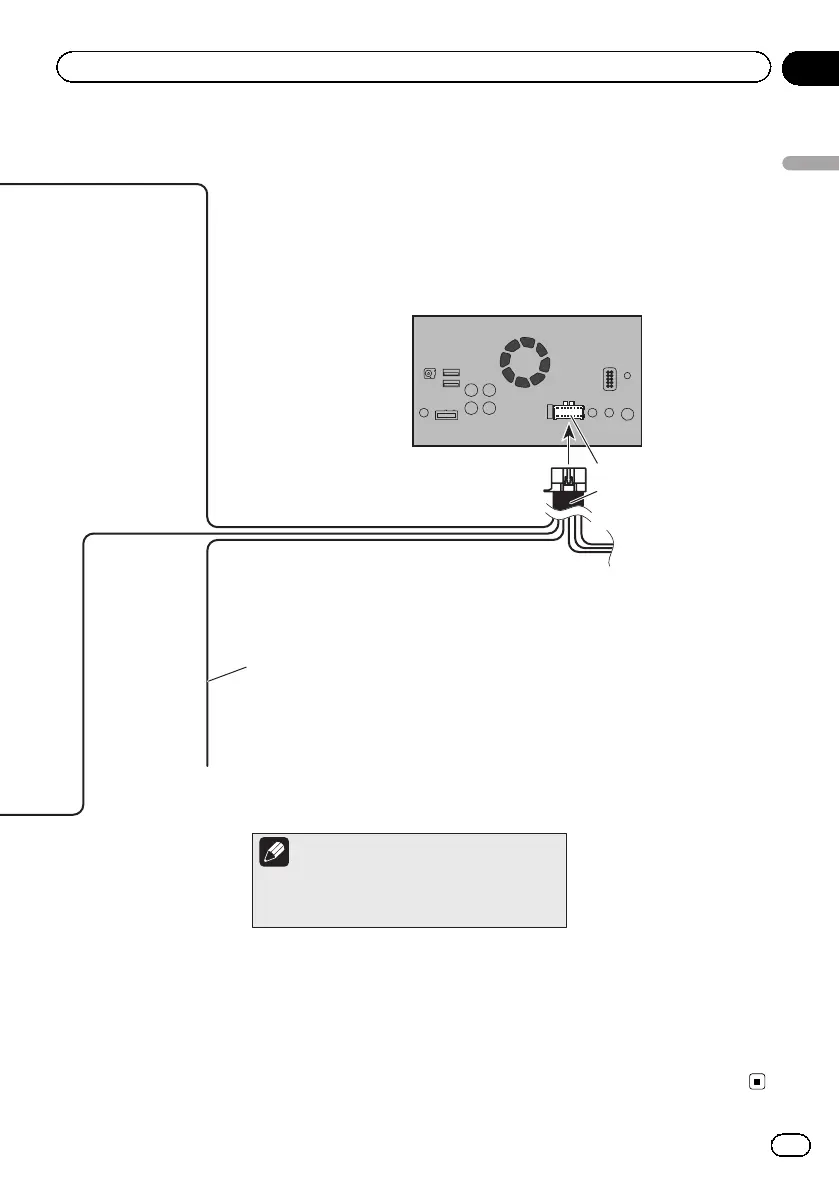

This product
Note
Power cord
Power supply
<CRB4539-A>11
Engb
11
Section
02
Connection
Connection

Pioneer AVIC-F77DAB Specifications

General

MP3 playback	Yes
Supported radio bands	AM, DAB+, FM
Preset stations quantity	24
DIN size	2 DIN
Product color	Black
DVD region code	2
Disc types supported	CD, DVD
Display diagonal	7 \
Display resolution	800 x 480 pixels
USB version	2.0
Apple docking compatibility	iPhone, iPod
Compatible memory cards	SD
