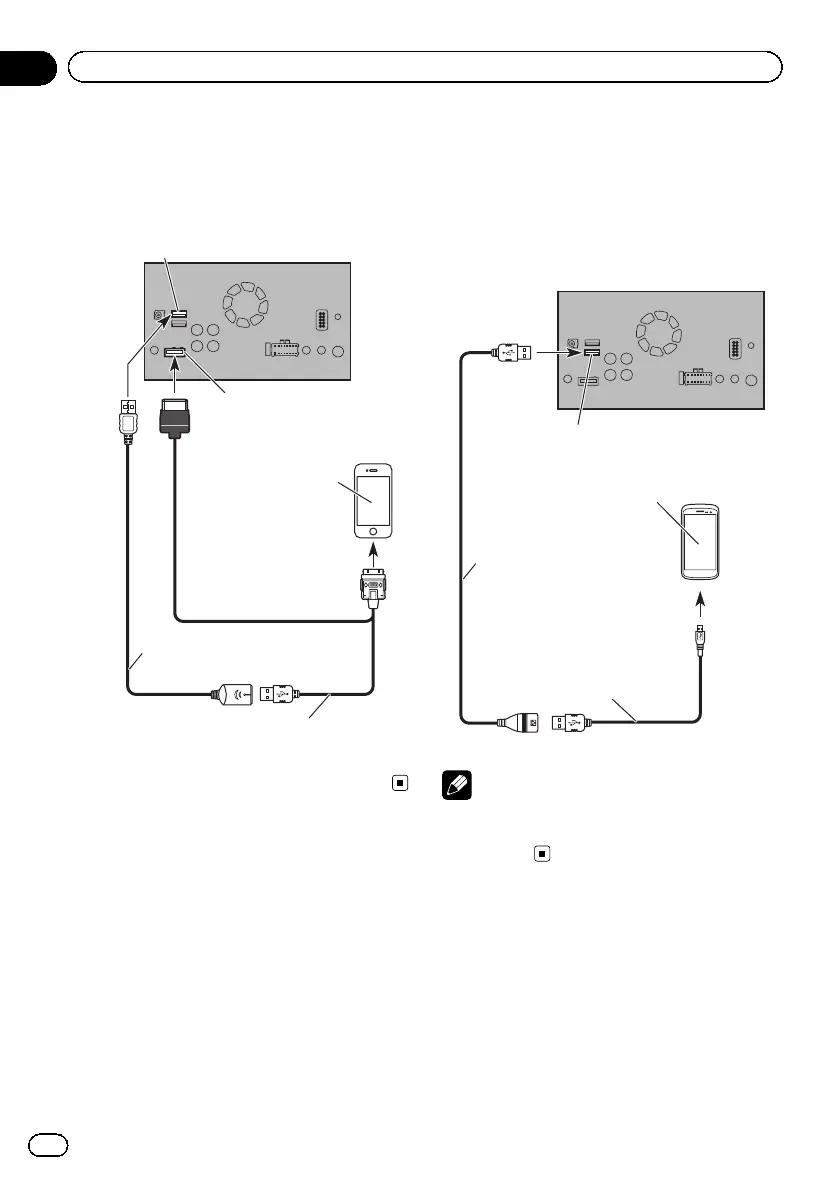

Connecting via the RGB input
The USB interface cable for iPod / iPhone (CD-
IU201S) (sold separately) is required for the
connection.
USB cable
1.5 m
USB interface cable for iPod / iPhone
(CD-IU201S) (sold separately)
This product
USB port 1
RGB input
iPhone with
30-pin connector
Connecting the Android or
MirrorLink
™
device
The USB interface cable for use with Android
or MirrorLink
™
devices (CD-AH200) (sold sepa-
rately) is required for the connection.
USB cable
(supplied with CD-AH200)
USB - micro USB cable
(Type USB A - micro USB B)
(supplied with CD-AH200)
This product
Android or MirrorLink device
USB port 2
Note
For details on how to connect an external device
using a separately sold cable, refer to the manual
for the cable.
<CRB4539-A>16
Engb
16
Section
02
Connection
