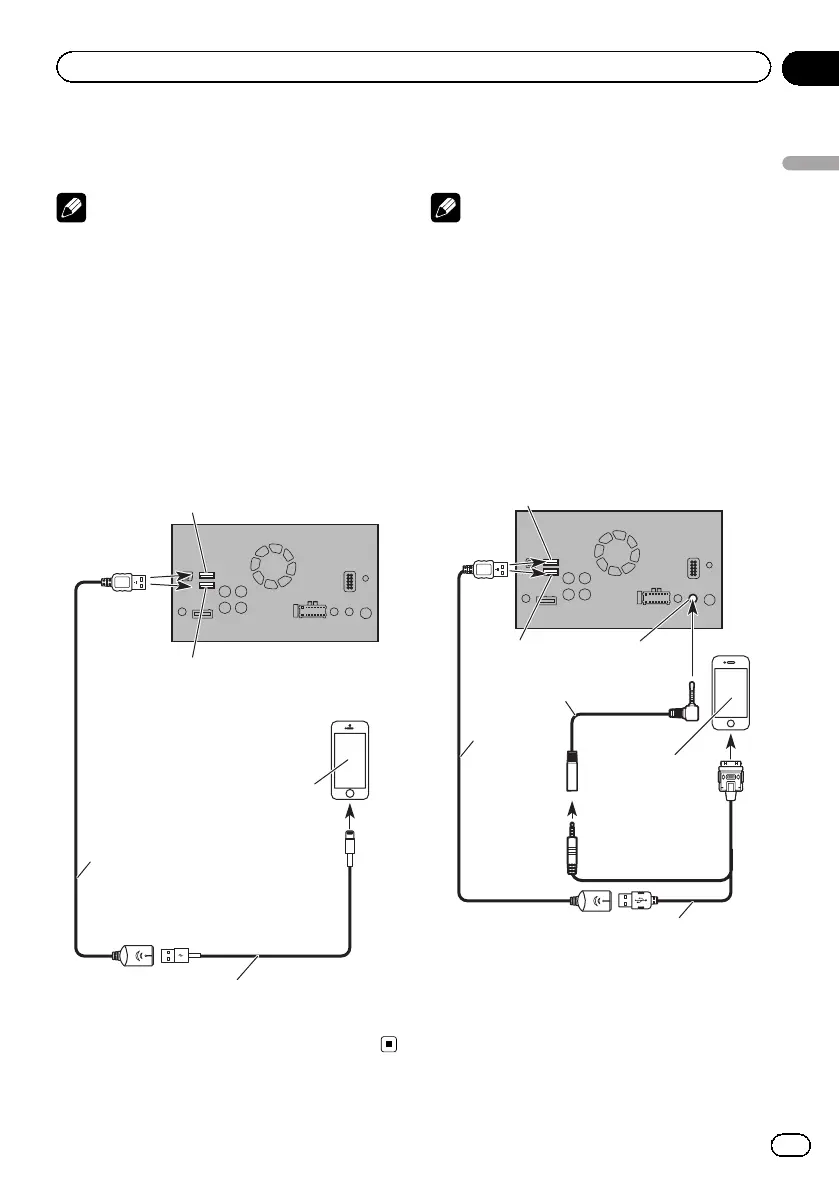

Connecting an iPhone with
Lightning connector
Notes
! For details on how to connect an external de-
vice using a separately sold cable, refer to the
manual for the cable.
! For details concerning the connection, opera-
tions and compatibility of iPhone, refer to Op-
eration Manual.
Connecting via the USB port
The USB interface cable for iPod / iPhone (CD-
IU52) (sold separately) is required for the con-
nection.
USB cable
1.5 m
USB interface cable for iPod / iPhone
(CD-IU52) (sold separately)
This product
USB port 1
iPhone with
Lightning connector
USB port 2
Connecting an iPhone with
30-pin connector
Notes
! For details on how to connect an external de-
vice using a separately sold cable, refer to the
manual for the cable.
! For details concerning the connection, opera-
tions and compatibility of iPhone, refer to Op-
eration Manual.
Connecting via the AUX input
The USB interface cable for iPod / iPhone (CD-
IU201V) (sold separately) is required for the
connection.
This product
USB interface cable for iPod / iPhone
(CD-IU201V) (sold separately)
USB cable
1.5 m
iPhone with
30-pin connector
AUX input
USB port 1
USB port 2
Mini-jack extension cable
(supplied with CD-IU201V)
<CRB4539-A>15
Engb
15
Section
02
Connection
Connection
