Black plate (10,1)
Connecting the power cord (2)
Pink (CAR SPEED SIGNAL INPUT)
This product is connected here to detect the distance the vehicle travels. Always connect the
vehicle’s speed detection circuit. Failure to make this connection will increase errors in the
vehicle’s location display.
LIGHT GREEN LEAD AT POWER CONNECTOR IS
DESIGNED TO DETECT PARKED STATUS AND
MUST BE CONNECTED TO THE POWER SUPPLY
SIDE OF THE HANDBRAKE SWITCH. IMPROPER
CONNECTION OR USE OF THIS LEAD MAY
VIOLATE APPLICABLE LAW AND MAY RESULT
IN SERIOUS INJURY OR DAMAGE.

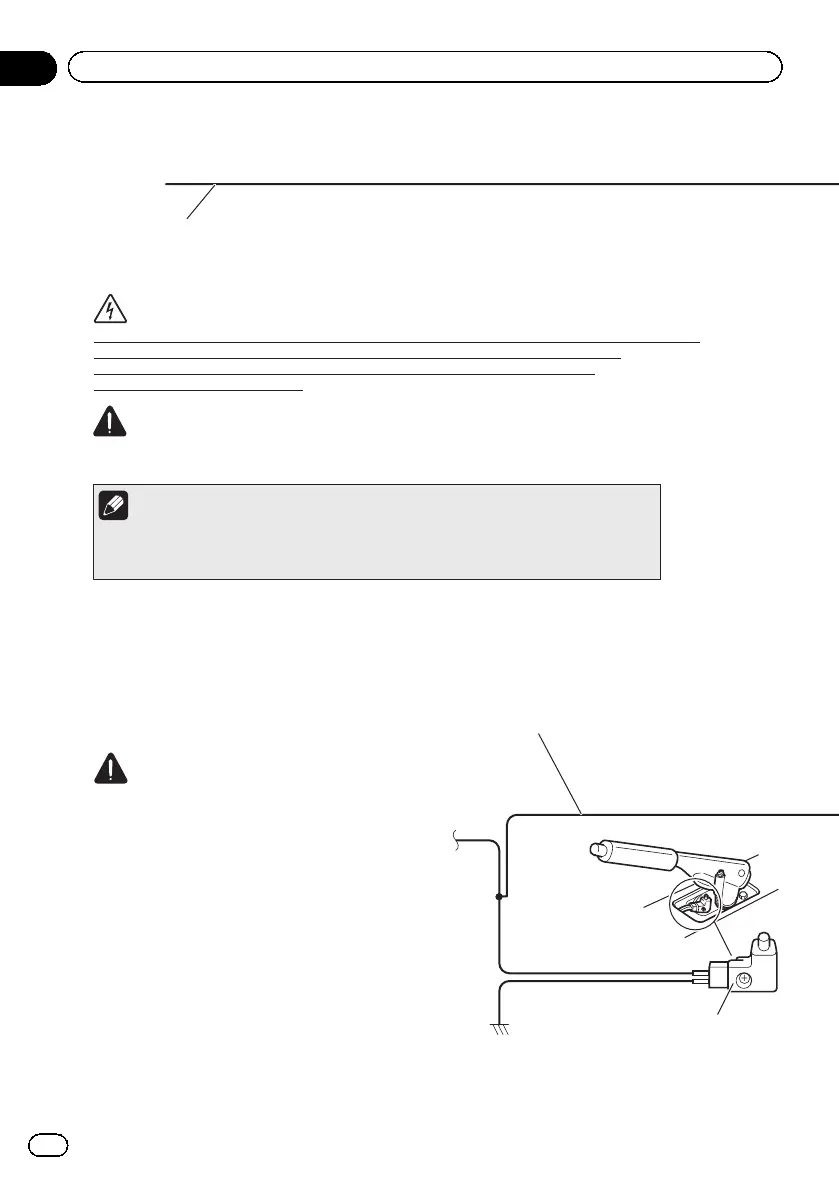

Light green (PARKING BRAKE)
Used to detect the ON/OFF status of the handbrake. This lead must be connected to the power supply side
of the handbrake switch.
If this connection is made incorrectly or omitted, certain functions of this product will be unusable.
Power supply side
Earth side
Handbrake switch
The position of the speed detection circuit and the position of the handbrake switch vary
depending on the vehicle model. For details, consult your authorised Pioneer dealer or an
installation professional.
Note
WARNING
CAUTION
It is strongly suggested that the speed pulse wire be connected for accuracy of navigation
and better performance.
IMPROPER CONNECTION MAY RESULT IN SERIOUS DAMAGE OR INJURY INCLUDING
ELECTRICAL SHOCK, AND INTERFERENCE WITH THE OPERATION OF THE
VEHICLE´S ANTILOCK BRAKING SYSTEM, AUTOMATIC GEARBOX AND
SPEEDOMETER INDICATION.
WARNING
<CRB4539-A>10
Engb
10
Section
02
Connection
