Pioneer AVIC-F77DAB Installation Manual

Black plate (8,1)

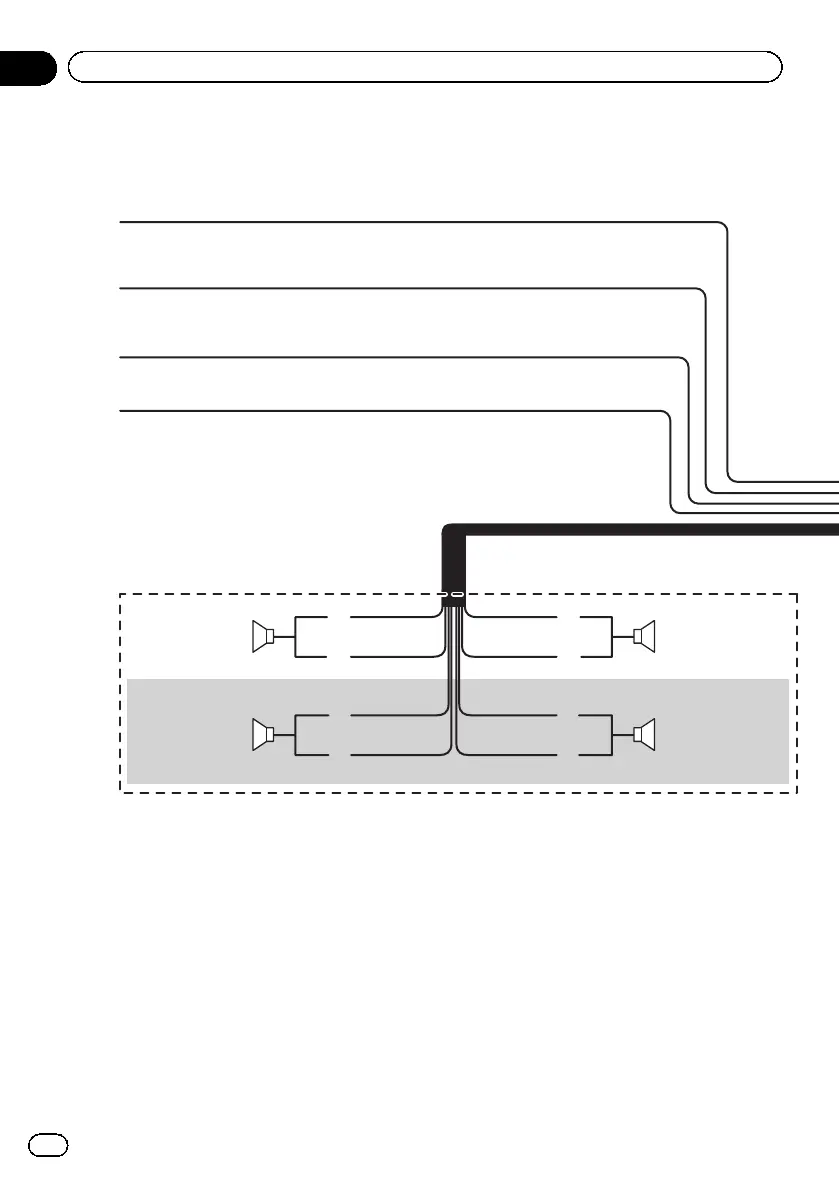

Connecting the power cord (1)








Yellow
To terminal supplied with power regardless of
ignition switch position.
Red
To electric terminal controlled by ignition
switch (12 V DC) ON/OFF.
Orange/white
To lighting switch terminal.
Black (earth)
To vehicle (metal) body.
With a two-speaker system, do not connect anything
to the speaker leads that are not connected to
speakers.
White
Grey
Front speakerFront speaker
White/black Grey/black
Left Right
Rear speaker Rear speaker
Green
Violet
Green/black
Violet/black
<CRB4539-A>8
Engb
8
Section
02
Connection

Pioneer AVIC-F77DAB Specifications

General

MP3 playback	Yes
Supported radio bands	AM, DAB+, FM
Preset stations quantity	24
DIN size	2 DIN
Product color	Black
DVD region code	2
Disc types supported	CD, DVD
Display diagonal	7 \
Display resolution	800 x 480 pixels
USB version	2.0
Apple docking compatibility	iPhone, iPod
Compatible memory cards	SD
