F77DAB F70DAB F970DAB
F9770DAB
By connecting the optional Vehicle Bus adap-
ter, you can display the operation status of the
vehicle’s parking sensor function and climate
control panel on the screen.
CAUTION
! For information on installing the Vehicle Bus
adapter, see the operating manual of the Vehi-
cle Bus adapter.
! After installing the Vehicle Bus adapter, be
sure to check operations.
! For details about vehicle models that are com-
patible with Vehicle Bus adapters, refer to the
information on our website.
! Functions and displays vary depending on the
vehicle model. For details of the functions
available according to the model, refer to the
information on our website.
Displaying obstacle
detection information
CAUTION
This function is intended solely to assist the dri-
ver’s vision. It does not detect all dangers and ob-
stacles and is not a substitute for your
attentiveness, judgement, and care while parking
your vehicle.

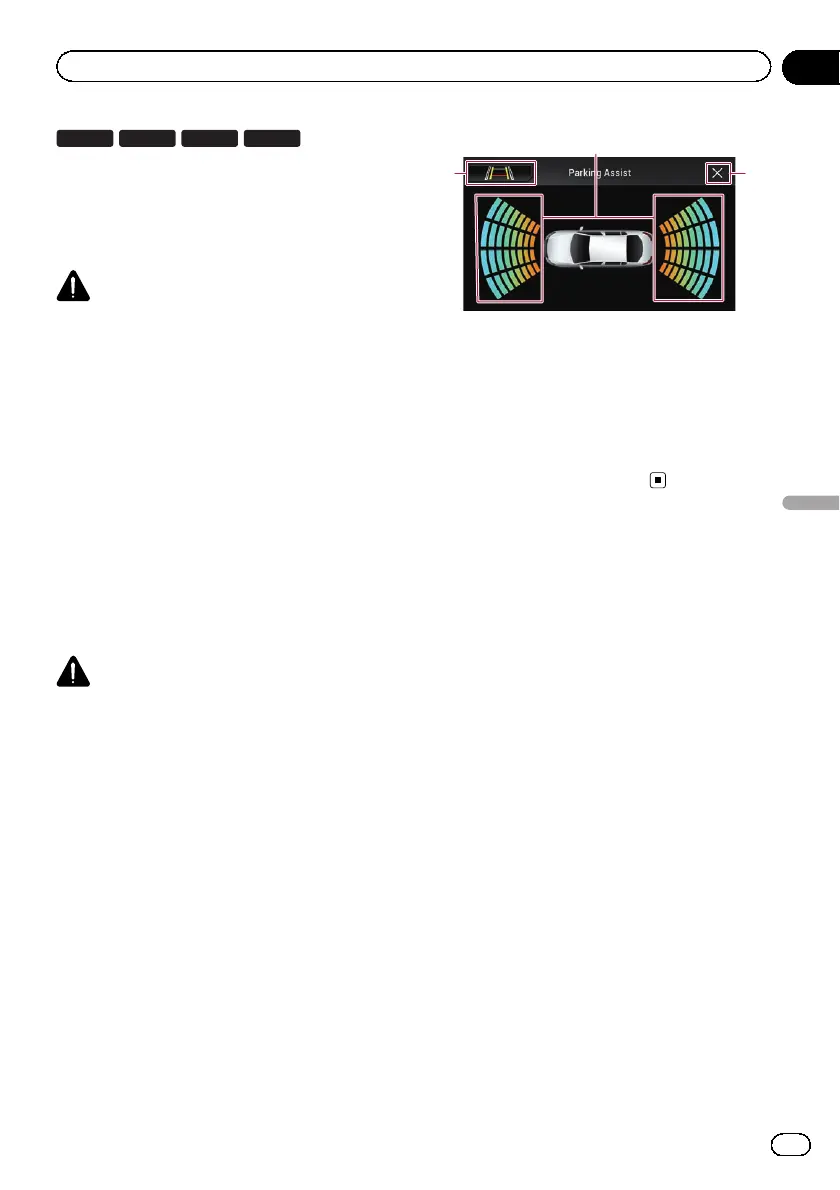

Turn on the parking assist sensor on your vehi-
cle, and the screen will switch to the “Parking
Assist” screen.
p This function is only available for vehicles
equipped with a parking sensor system.
p The “Parking Assist” screen is not dis-
played until the navigation screen has
started.
1
3
2
1 Switches the display to the rear view camera
image.
p The display switches only when the rear
view camera setting is set to “On” and
the gearstick is in the REVERSE (R) po-
sition.
2 Displays the position of detected obstacles.
3 The previous screen returns.
Displaying the operating
status of the climate
control panel
When you operate the climate control panel of
the vehicle, the screen switches automatically
to the “A/C Control” screen.
p The settings of the climate control panel
operated before this product is started are
not displayed on the screen.
p Any climate control panel settings of the
vehicle that are turned off are not displayed
on the screen.
p If the information displayed on the screen
is reversed for the left and right sides of the
vehicle, change the “Climate Reverse” set-
ting to “On”.
= For details of the operations, refer to Re-
versing the climate control status display
on page 164.
Engb
199
Chapter
34
Displaying the operation status of vehicle equipment
Displaying the operation status of vehicle equipment
To Next Page
