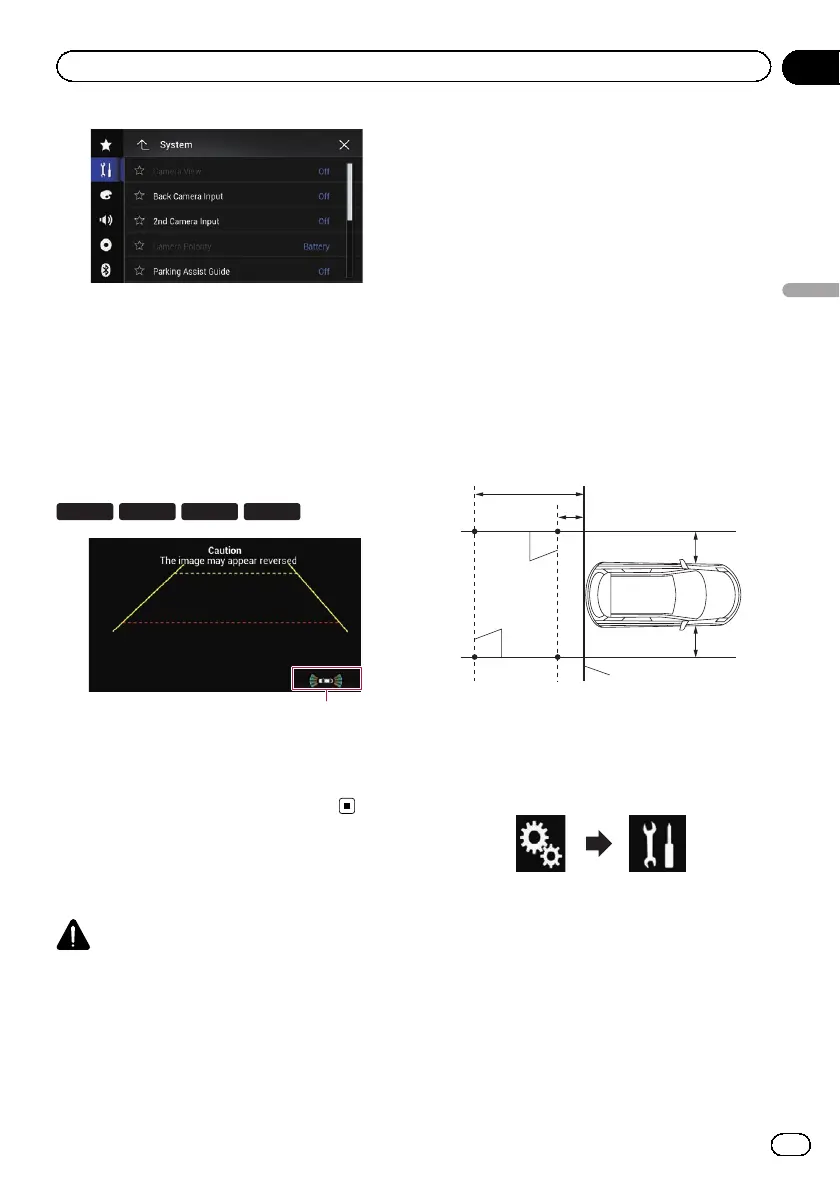

4 Touch [Parking Assist Guide] repeatedly
until the desired setting appears.
! Off (default):
Hides the guidelines.
! On:
Displays the guidelines.
When the gearstick is aligned to the REVERSE
(R) position after setting the rear view camera,
the rear view image appears.
F77DAB F70DAB F970DAB
F9770DAB
1
1 Switches the display to the “Parking Assist”
screen.
p If you press and hold the MAP button,
the rear view image disappears.
Setting guidelines on the
rear view image
CAUTION
! When adjusting the guidelines, be sure to
park the vehicle in a safe place and apply the
handbrake.
! Before getting out of the car to place the
markings, be sure to turn the ignition switch
off (ACC OFF).
! The range projected by the rear view camera
is limited. Also, the vehicle width and distance
guidelines displayed on the rear view camera
image may differ from the actual vehicle
width and distance. (The guidelines are
straight lines.)
! The image quality may deteriorate depending
on the usage environment, such as at night or
in dark surroundings.
1 Park your vehicle in a safe place and
apply the handbrake.
2 Using packing tape or similar, place
markings approximately 25 cm from each
side of the vehicle, and approximately
50 cm and 2 m from the rear bumper.
Rear bumper
25 cm
50 cm
25 cm
2 m
Markings
Markings
3 Press the HOME button to display the
Top menu screen.
4 Touch the following keys in the follow-
ing order.
The “System” screen appears.
5 Touch [Camera settings].
The following screen appears.
Engb
161
Chapter
29
System settings
System settings
To Next Page
