CONNECTIONS
6
En
Always turn off the power switch and disconnect the power plug from its outlet when making or changing connections.
CONNECTING INPUTS
Pioneer DJ CD players
The audio output connectors of a DJ-type CD player can be
connected to the
CD
input connectors (channel 1 or 2), or to the
LINE
input connectors (channel 1) of the DJM-700-S/DJM-700-K.
Connect the control cord to the
CONTROL
jack, and set the input
selector switch to [
CD
] or [
LINE
].
Analog turntable
To connect an analog turntable, connect the turntable’s audio
output cable to one of the channel 2 to 4
PHONO
input
connectors. Set the corresponding channel’s input selector switch
to [
PHONO
]. The DJM-700-S/DJM-700-K’s
PHONO
inputs support
MM cartridges.
Connect the ground wire from an analog turntable to the
SIGNAL GND
terminal of the DJM-700-S/DJM-700-K.
• Note that no
PHONO
input connector is provided for channel 1.
Connecting other line level output devices
To use a cassette deck or ordinary CD player, connect its audio
output connectors to one of the DJM-700-S/DJM-700-K’s
LINE
input connectors (channel 1, 3, or 4) or to the
CD
input connectors
(channel 1 or 2), and set the input selector switch to [
LINE
].
POWER
ON
OFF
BOOTH REC
L
R
L
R
L
R
L
R
L
R
PHONO LINE
CH-4 CH-3 CH-2 CH-1
PHONO LINE PHONO
SIGNAL GND
SEND
DIGITAL OUT
(MONO)
CD
RL
LINE
CONTROL
CONTROL
CD
1 GND
3 COLD
2 HOT
-6dB -3dB 0dB
MIC 2
RETURN
(MONO)
RL
RL
RL
MASTER1
MASTER2
MASTER
ATT.
48k 96k
fs(Hz)
MIDI OUT
Input selector switch

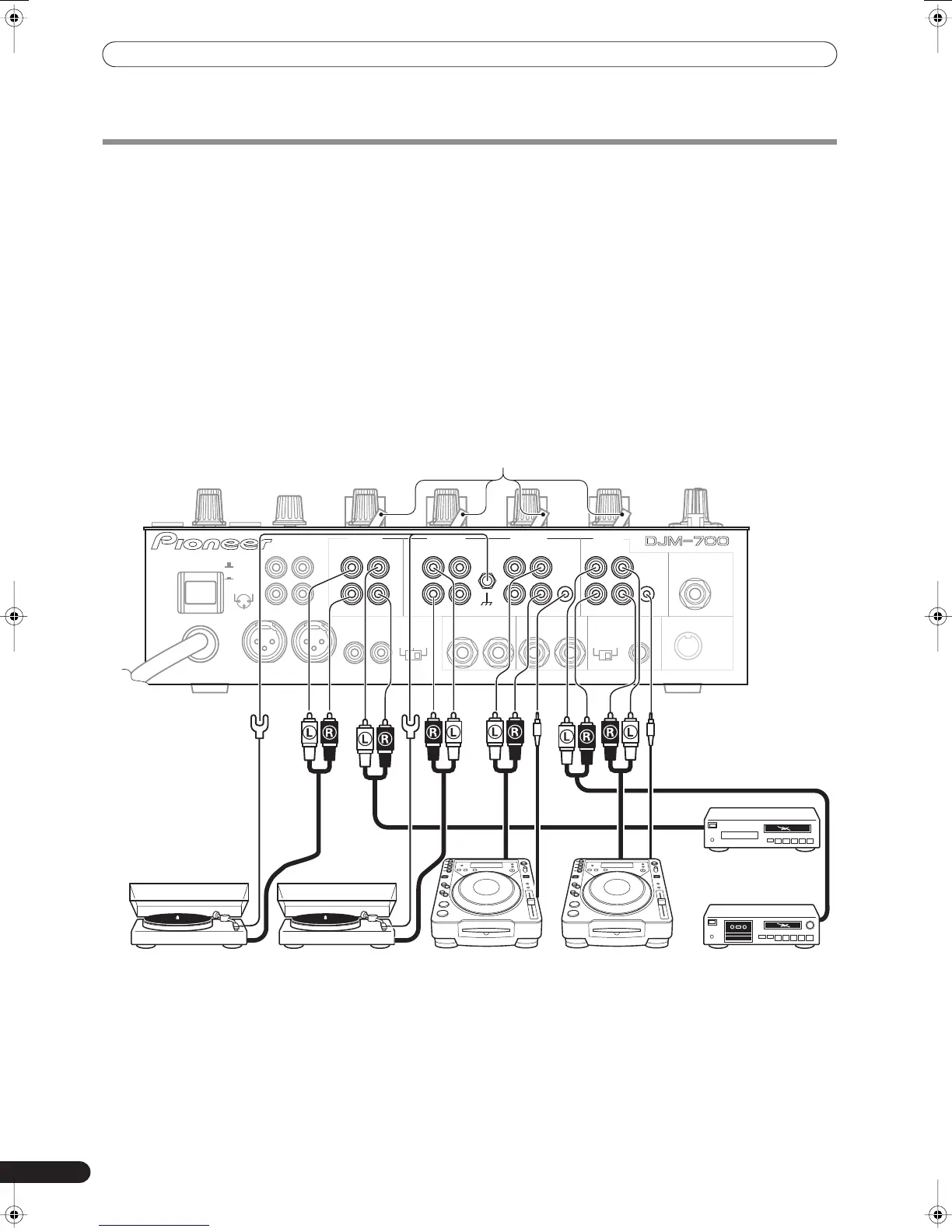

Analog turntable Analog turntable DJ CD player DJ CD player Cassette deck, etc.
CD player, etc.
