Pioneer DJM-700-K User Manual

CONNECTIONS
8
En
ABOUT MIDI CONNECTORS
See P. 21 regarding the functions of MIDI connectors.
CONNECTING MICROPHONE AND HEADPHONES
Microphone
A microphone with XLR-type plug can be connected to the MIC 1
connector on the Operation Panel (upper) .
The
MIC 2 jack on the connection panel can be used to connect a
microphone with Ø6.3 mm phone plugs.
• When using a microphone, set the operating panel’s
MIC switch
to [
ON ] or [ TALK OVER ], and adjust the LEVEL dial as
necessary.
When not using a microphone, it is recommended to set the
MIC switch to [ OFF ] and rotate the LEVEL dial fully
counterclockwise to the [–
∞ ] side.
Headphones
The PHONES jack on the upper surface of the operating panel can
be used to connect headphones with a Ø6.3 mm stereo phone
plug.
CONNECTING THE POWER CORD
Connect the power cord last.
• After completing all other connections, connect the power plug to an ordinary AC outlet.
MIC 2
MIDI OUT
d
OV
1
7
4
2
1
0
–
–
–
–
–
–
–
–
FADER START
MIC1
MIC1 LEVEL
0
MIC2 LEVEL
0
HI
MIC
CH-1 CH-2
OFF ON
TALK
OVER
+12-12
LOW
+12-12
EQ

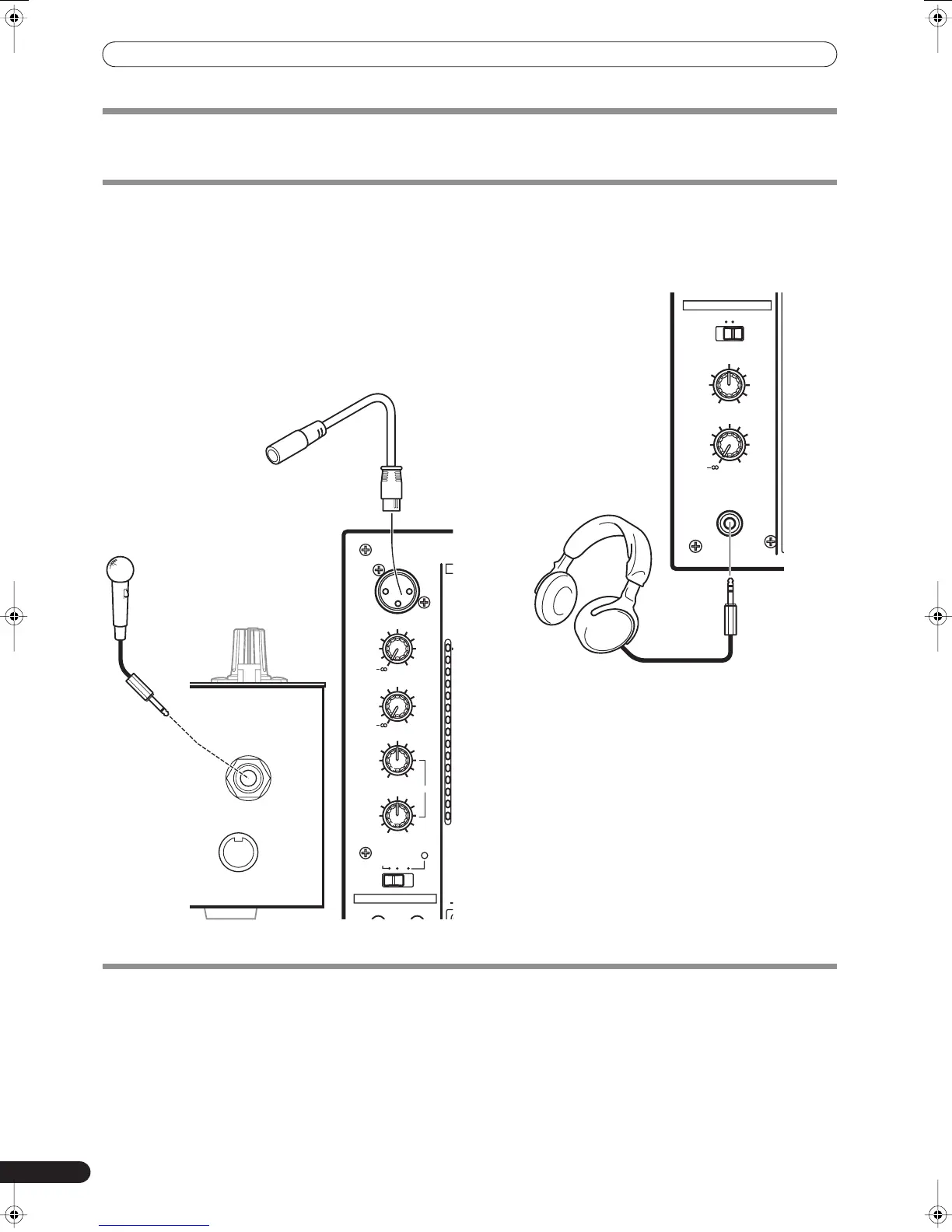

Microphone 1
Microphone 2
HEADPHONES
LEVEL
0
MIXING
MASTERCUE
MONO SPLIT STEREO
PHONES
Headphones
