Pioneer GM-3400T User Manual

Appendix
• C----:A=-d-=-d-=it---=i:--o-n-al=-i-n-fo-r-m-a-t-io-n---)

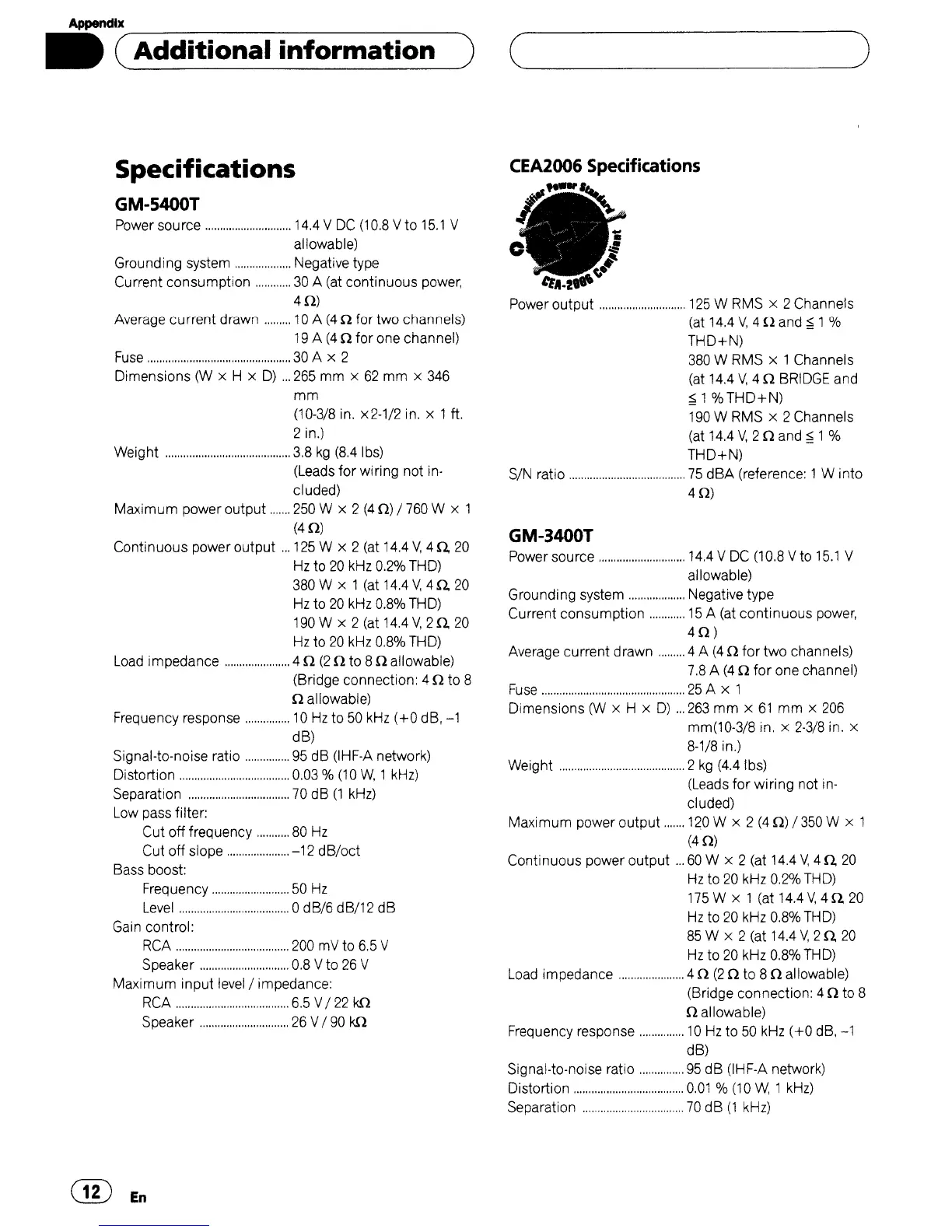

Specifications
GM-5400T
Power source 14.4 V DC (10.8 V to 15.1 V
allowable)
Grounding system , ' Negative type
Current consumption
30 A (at continuous power,
40)
Average current drawn ' ........ 10 A (40 for two channels)
19 A (40 for one channel)
Fuse .. , , 30 A x 2
Dimensions (W
x H x D) , .. 265 mm x 62 mm x 346
mm
(10-3/8 in. x2-1/2 in. x 1 ft
2 in.)
Weight
.. , , 3.8 kg (8.4 Ibs)
(Leads
for wiring not in-
cluded)
Maximum power output ,
.... , 250 W x 2 (40) /760 W x 1
(40)
Continuous power output ... 125 W x 2 (at 14.4 V, 4 n. 20
Hz to 20 kHz 0.2% THD)
380 W x 1 (at 14.4
V, 4 n. 20
Hz to 20 kHz 0.8% THD)
190 W
x 2 (at 14.4 V, 2 n. 20
Hz to 20 kHz 0.8% THD)
Load impedance , , 4 0 (20 to 80 allowable)
(Bridge connection:
40 to 8
o allowable)
Frequency response
.... ' .......... 10Hz to 50 kHz (+0 dB, -1
dB)
Signal-to-noise ratio ,
95 dB (IHF-A network)
D' t rt IS 0 Ion 0.03 % (10 W, 1 kHz)
Separation
70 dB (1 kHz)
Low pass filter:
Cut off frequency ,
80 Hz
Cut off slope , .. -12 dB/oct
Bass boost:
Frequency ,
50 Hz
Level 0 dB/6 dB/12 dB
Gain control:
RCA '
200 mV to 6.5 V
Speaker , 0.8
Vto 26 V
Maximum input level I impedance:
RCA , ,
6.5 V /22 kn
Speaker , , 26 V /90 kn
GD En
C~ )
CEA2006 Specifications
•
.. _~-:
C
·It
;:
<..*
CEj.Z'-
Power output , 125 W RMS x 2 Channels
(at 14.4
V, 40 and ;£ 1 %
THD+N)
380 W RMS x 1 Channels
(at 14.4
V, 40 BRIDGE and
;£ 1 % THD+N)
190 W RMS x 2 Channels
(at 14.4
V, 2 0 and ;£ 1 %
THD+N)
SIN ratio , .. 75 dBA (reference: 1 W into
40)
GM-3400T
Power source .. , 14.4 VDC (10.8 V to 15.1 V
allowable)
Grounding system , Negative type
Current consumption
15 A (at continuous power,
40)
Average current drawn ...... , .. 4 A (40 for two channels)
7.8 A
(4 0 for one c-hannel)
Fuse , , 25 A x 1
Dimensions (W
x H x D) 263 mm x 61 mm x 206
mm(10-3/8 in. x 2-3/8 in. x
8-1/8 in,)
Weight 2
kg (4.4 Ibs)
(Leads
for wiring not in-
cluded)
Maximum power output ,
...... 120W x 2 (40)/350W x 1
(40)
Continuous power output 0,.60 W x 2 (at 14,4 V, 4 n. 20
Hz to 20 kHz 0.2% THD)
175 W x 1 (at 14.4 V, 40,20
Hz to 20 kHz 0.8% THD)
85 W x 2 (at 14.4 V, 20, 20
Hz to 20 kHz 0.8% THD)
Load impedance
40 (20 to 80 allowable)
(Bridge connection:
40 to 8
o allowable)
Frequency response
......... , ..... 10Hz to 50 kHz (+0 dB, -1
dB)
Signal-to-noise ratio ,
95 dB (IHF-A network)
Distortion
0,01 % (10 W, 1 kHz)
Separation 70 dB (1 kHz)
