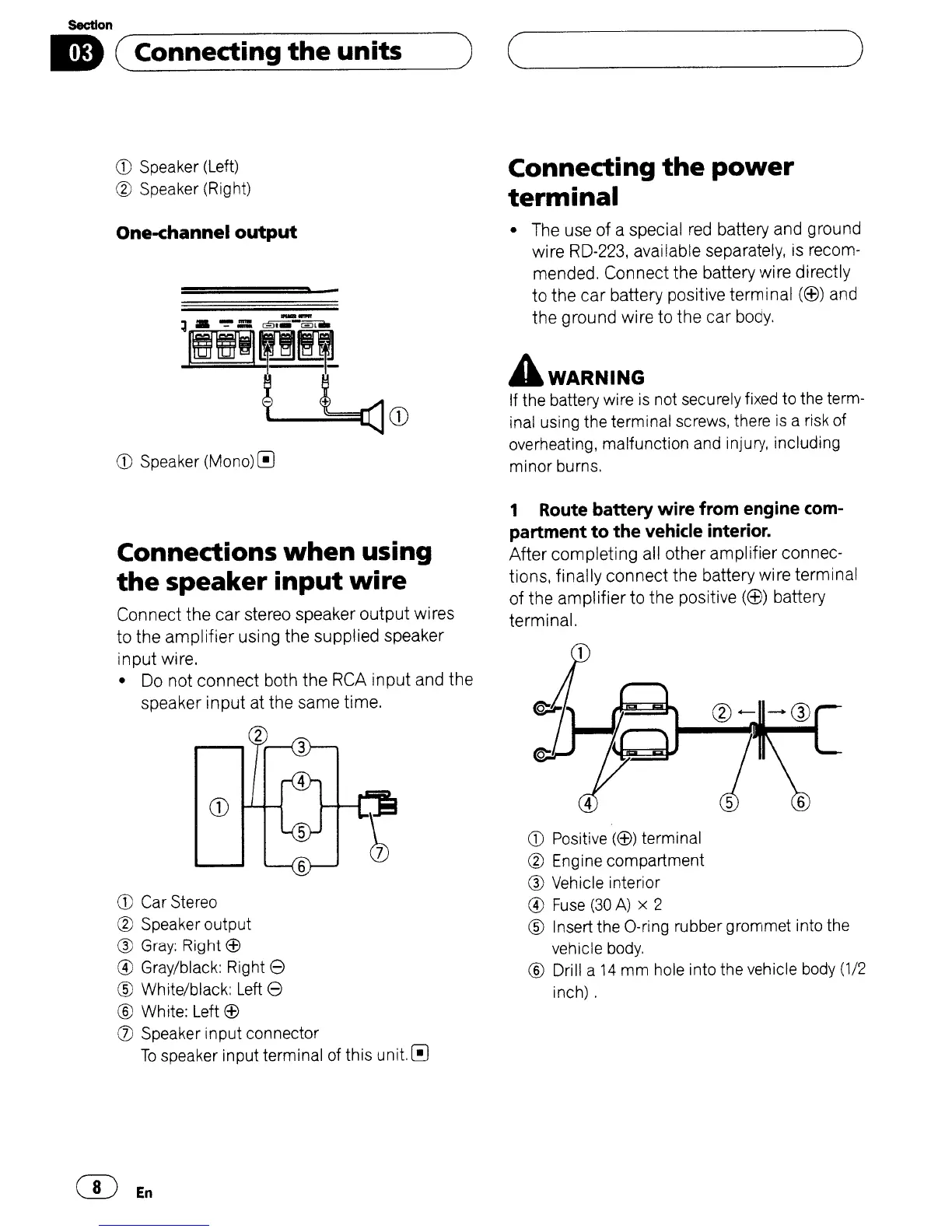

SectIon
II
(Connecting
the
units
)
(~----~)
CD
Speaker (Left)
® Speaker (Right)
Connecting
the
power
terminal
One-channeloutput
CD
Speaker (Mono) (!)
• The use
of
a special red battery and ground
wire RD-223, available separately, is recom-
mended. Connect the battery wire directly
to
the
car
battery positive
terminal
(f))
and
the
ground wire to
the
car body.
~WARNING
If the battery wire
is
not securely fixed to the term-
inal using the terminal screws, there
is
a risk of
overheating, malfunction and injury, including
minor burns.
CD
Positive
((±))
terminal
® Engine compartment
® Vehicle interior
®
Fuse
(30
A)
x 2
® Insert the O-ring rubber grommet into the
vehicle
body.
® Drill a
14
mm
hole into the vehicle
body
(1/2
inch) .
1
Route
battery wire from engine
com-
partment to the vehicle interior.
After
completing
all
other
amplifier
connec-
tions, finally
connect
the battery
wire
terminal
of
the
amplifier
to
the
positive (ffi) battery
terminal.
Connections
when
using
the
speaker
input
wire
Connect
the
car
stereo speaker
output
wires
to the
amplifier
using the supplied speaker
input
wire.
• Do not
connect
both
the
RCA
input
and the
speaker
input
at the same time.
2
....-
.......
CD
CD
Car Stereo
® Speaker output
®
Gray:
Right
(±)
® Gray/black: Right 8
® White/black:
Left
8
® White: Left
(±)
(J)
Speaker input connector
To
speaker input terminal of this unit. (!)
m
En
