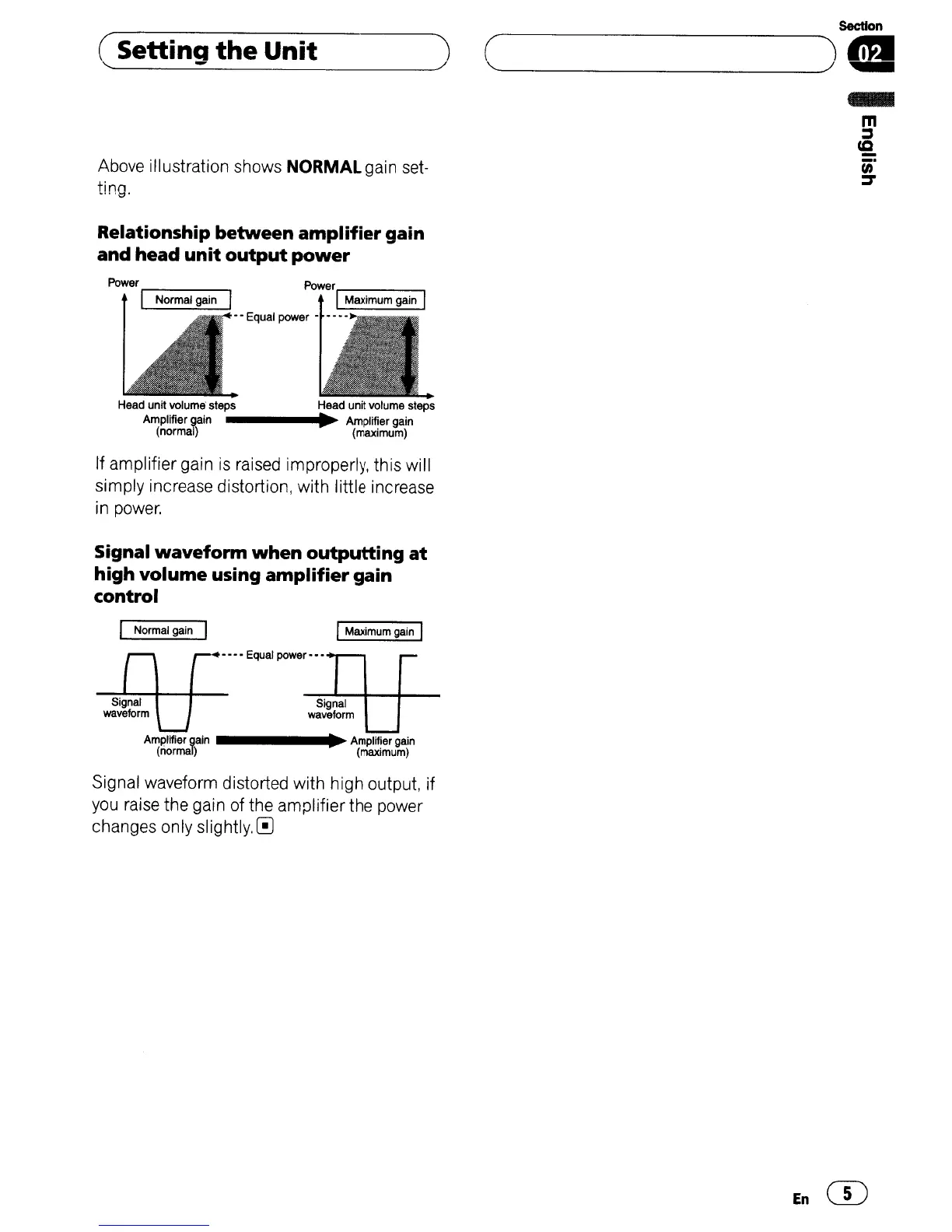

( Setting the Unit
Above illustration shows NORMAL gain set-
ting.
Relationship between amplifier gain
and head
unit output power
Power ---,
'--_--='---', IMaximum gain I
•• Equal power • • •••
)
section
( )&
-----------------
Head unit volume steps Head unit volume steps
Amplifier gain
---- ... ~ Amplifier gain
(normal) (maximum)
If amplifier gain is raised improperly, this will
simply increase distortion, with little increase
in power,
Signal waveform when outputting at
high volume using amplifiergain
control
I Normal gain I
I Maximum gain I
•••• Equal power •••
Signal
waveform
Amplifier gain ... ~Amplifier gain
(normal) (maximum)
Signal waveform distorted with high output, if
you raise the gain of the amplifier the power
changes only slightly,C!J
En CD
