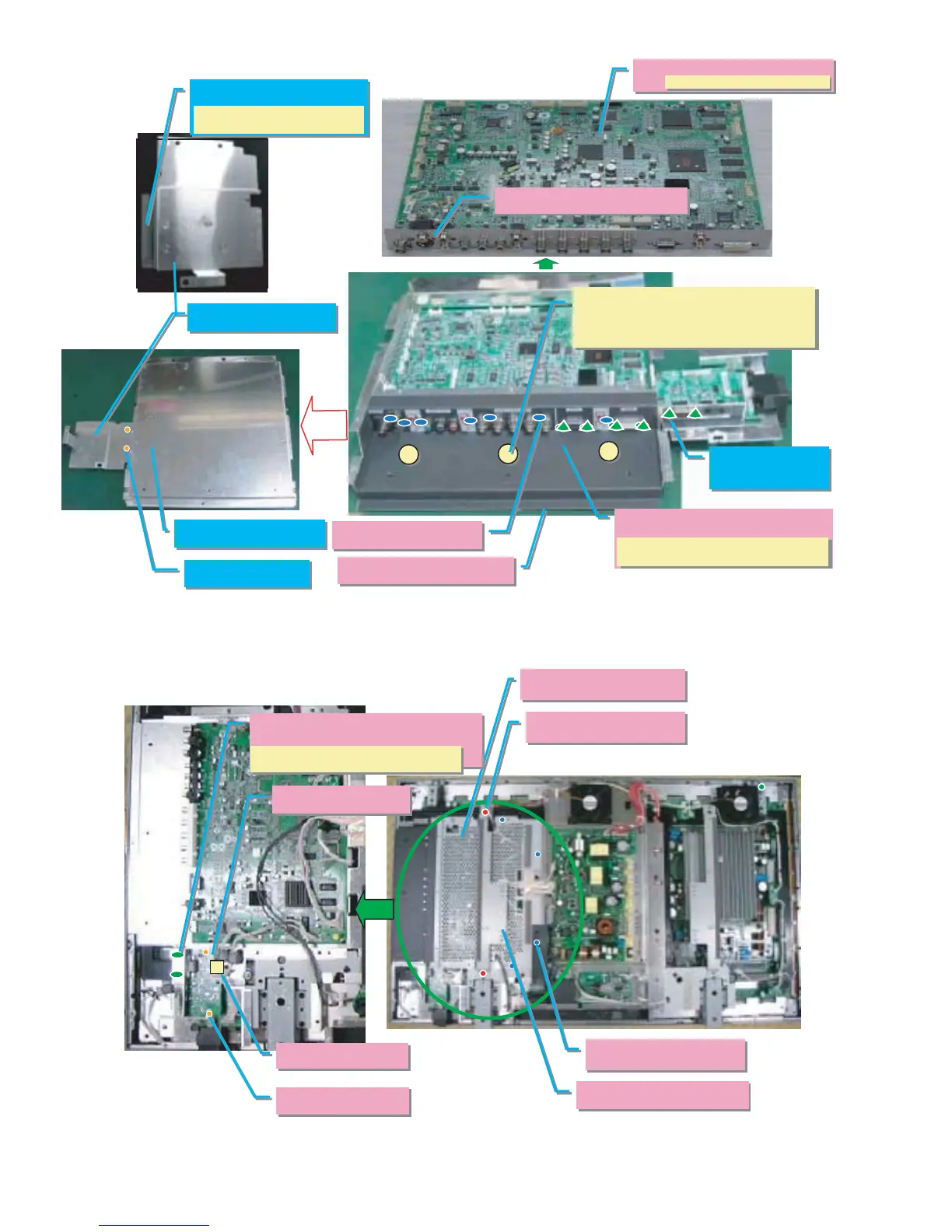

15. TERMINAL PANEL M/MAIN PWB
(3)M66 TERMINAL PANEL S
ASSY 29P01243
(2)SRW03 CBIPS*3*8*3
KF 24N03691 *7p
(1)SRW01 SCREW(UNC4-40/
4-40) 32990229 *4p+2p
(5)A01 MAIN PWB ASSY
(4)M41SHIELD PLATE MAIN
(42XM3) 29H03541
(Caution) After sticking the TERMINAL
SHEET to the TERMINAL PANEL, push
the peripheral area of the screw hole to
strengthen the adhesion. (In 3 positions)
Rear
side
(Caution) Use a hexagon head driver
(opposite side distance 5mm).
M35 BRACKET 232C
(42XM3) 29H03531
M33 BRACKET MAIN
(42XM3) 29H03511
GKT02 GASKET
(L70*10*T1) 29C00361
(Caution) Stick it in alignment
with the end face.
SRW18 TP-M3*6*3KF
24N045812p
M47
PLATE 232C
ASSY29H02791
(Caution) Refer to Parts List
16. BRACKET OPTION L/SHIEL COVER/232C PWB
(2)M40 BRACKET OPTION
L 29H02353
(1)SRW10 CBIPS*4*12*15
KFE 29N01401*2p
(5)CONNECTOR11p
(3)SRW08 CBIPS*3*8*3
KF 24N03691*4p
(4) M37 SHIELD COVER
MAIN 29H03571
(8) A02 232C PWB
ASSY 937F0SA1
(6) SRW21 TP-M3*6*3
KF 24N04581 2p
(7)SRW01 SCREW(UNC4-40/
4-40) 32990229 *2p
(Caution) Use a hexagon head driver
(opposite side distance 5mm).
