Pioneer PDP-434HDE

05Part Names
English
13
En

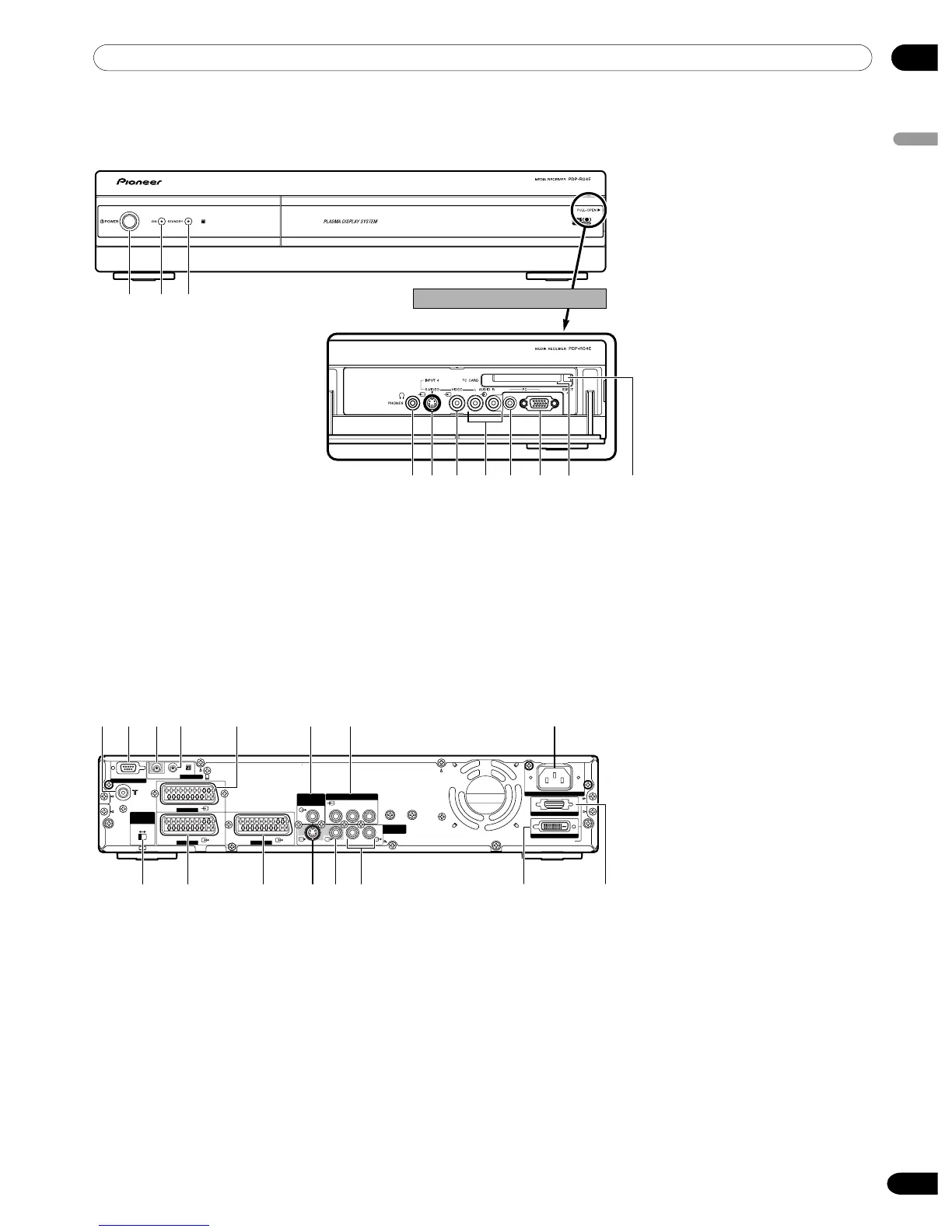

Media Receiver
Front view
1 POWER button
2 POWER ON indicator
3 STANDBY indicator
4 PHONES output terminal
5 INPUT 4 terminal (S-VIDEO)
Rear view
1 Antenna input terminal
2 RS-232C terminal (used in the factory
setup)
3 Control input terminal
4 Control output terminal
5 INPUT 1 terminal (SCART)
6 SUB WOOFER OUTPUT terminal
7 INPUT 3 COMPONENT VIDEO terminals
(Y, PB, PR)
8 AC INLET terminal
9 i/o link.A SELECT switch
0 INPUT 2 terminal (SCART)
- INPUT 3 terminal (SCART)
= MONITOR OUT terminal (S-VIDEO)
~ MONITOR OUT terminal (VIDEO)
! MONITOR OUT terminals (AUDIO)
@ SYSTEM CABLE terminal (WHITE)
# SYSTEM CABLE terminal (BLACK)
6 INPUT 4 terminal (VIDEO)
7 INPUT 4 terminals (AUDIO)
8 PC INPUT terminal (AUDIO)
9 PC INPUT terminal (ANALOG RGB)
0 PC CARD slot
- PC CARD eject button
1
2
3
5
4
6
8
9
7
-
0
SERVICE ONLY
i / o link.A
SELECT
CONTROL
SUB WOOFER
OUTPUT
INP UT 3
COMPONENT
S-VIDEO
VIDEO R-AUDIO-L
MONITOR
OUTPUT
YP
B P R
VIDEO
IN OUT
INPUT 1
INPUT 2 INPUT 3
AC INLET
BLACK
WHITE
SYSTEM CABLE
INPUT
23
1
2
3567
8
@
#
0
-
=~ !
9
4
Pull this section to open the door.
