PDP-434PU
47
5 678
56
7
8
C
D
F
A
B
E
6. ADJUSTMENT
6.1 ADJUSTMENT REQUIRED WHEN THE SET IS REPAIRED OR REPLACED
6.2 COMMAND
6.2.1 RS232C COMMAND
VRN Voltage adjustment.
43 X DRIVE Assy
When replaced
No adjustment is required, because necessary adjustment has
already been made.
43 Y DRIVE Assy
When replaced
The panel control items for the PDP-434PU system can be controlled with the RS-232C commands by connecting a PC through the
GGF1475 special communication device when the Media Receiver is not connected with the PDP.
Note: The special communication device for the PDP-503P cannot be used with this unit, because the control lines within the MDR cable are
different.

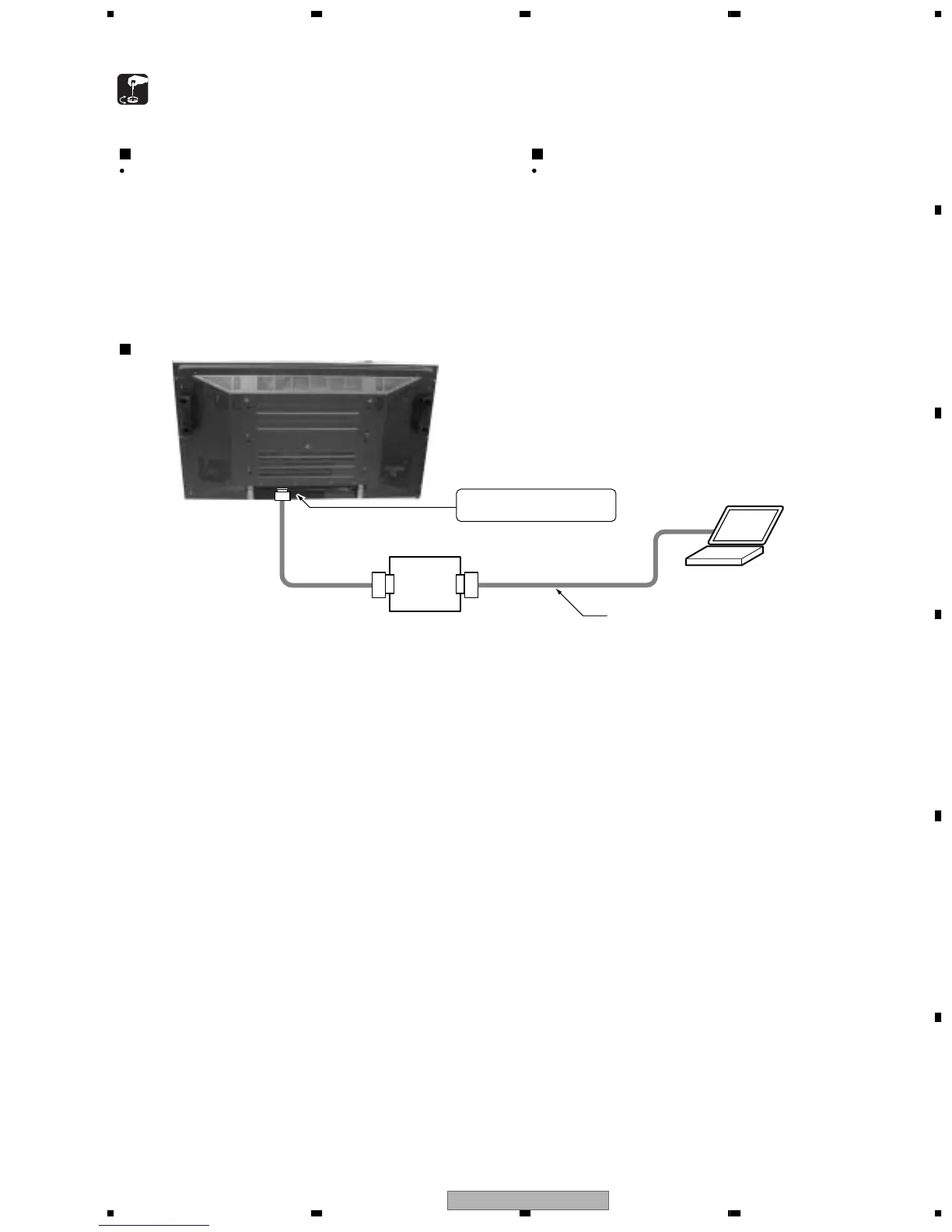

Connection
GGF1475 special
communication device
MDR
D-SUB 9-pin straight cable
PC for control
Connect to the D-SUB 9-pin connector.
Communication line:
Connect the system cable.
