PDP-434PU
54
1234
1234
C
D
F
A
B
E
7. GENERAL INFORMATION
7.1 DIAGNOSIS

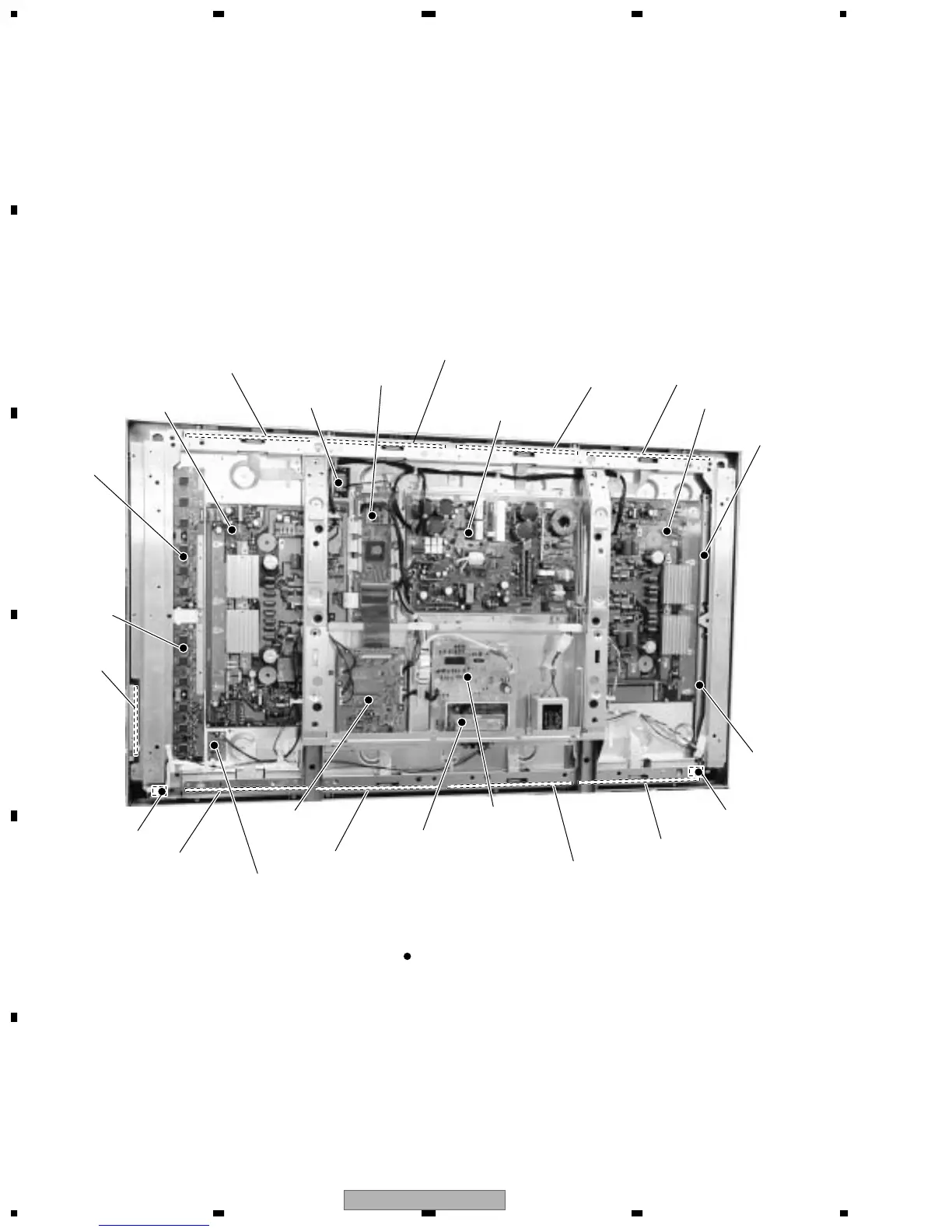

7.1.1 PCB LOCATION
POWER SUPPLY Unit
HD AUDIO
AMP Assy
PANEL IF Assy
DIGITAL VIDEO Assy
43 Y DRIVE Assy
43 SCAN B
Assy
43 SCAN A
Assy
KEY CONTROL Assy
X CONNECTOR
A Assy
X CONNECTOR
B Assy
HD SP
TERMINAL Assy
43 ADDRESS Assy
43 ADDRESS Assy
43 ADDRESS Assy
43 ADDRESS Assy
43 ADDRESS Assy
43 ADDRESS Assy
43 ADDRESS Assy
43 ADDRESS Assy
43 X DRIVE Assy
PANEL LED Assy
PANEL SENSOR
Assy
PANEL IR Assy
PANEL KEY
Assy
Rear view
