Appendix
12
English

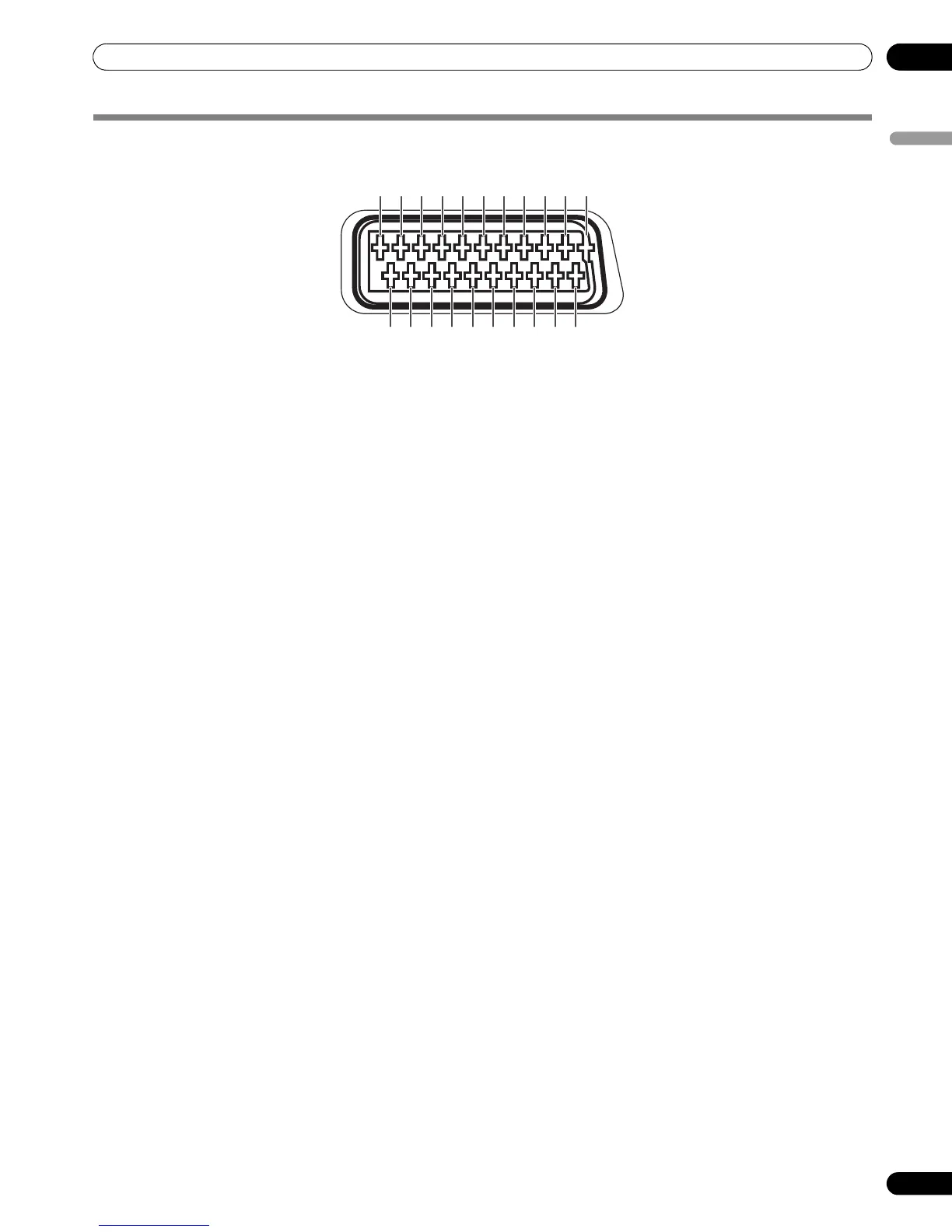

Connecting pin assignments for SCART
Various audio and video devices may be connected via the SCART terminals.
SCART (INPUT 1)
1. Audio right output 8. Audio-video control 15. Red input
2. Audio right input 9. Earth for green 16. Red/Green/Blue control
3. Audio left output 10. Not used 17. Earth for video
4. Common earth for audio 11. Green input 18. Earth for Red/Green/Blue control
5. Earth for blue 12.Not used 19. Video output
6. Audio left input 13. Earth for red 20. Video input
7. Blue input 14. Not used 21. Plug shield
SCART (INPUT 2)
1. Audio right output 8. Audio-video control 15. Chroma S-Video input
2. Audio right input 9. Earth 16. Not used
3. Audio left output 10. AV link control 17. Earth for video
4. Common earth for audio 11. Not used 18. Earth
5. Earth 12. Not used 19. Video output
6. Audio left input 13. Earth 20. Video input/S-Video input
7. Not used 14. Not used 21. Plug shield
SCART (INPUT 3)
1. Audio right output 8. Audio-video control 15. Red input/Chroma S-Video input
2. Audio right input 9. Earth 16. Red/Green/Blue control
3. Audio left output 10. AV link control 17. Earth for video
4. Common earth for audio 11. Green input 18. Earth
5. Earth 12. Not used 19. Video output
6. Audio left input 13. Earth 20. Video input/S-Video input
7. Blue input 14. Not used 21. Plug shield
13579111315171921
2468101214161820
PDP-506FDE.book Page 47 Wednesday, June 29, 2005 4:00 PM

Pioneer PDP-436FDE Specifications

General

Depth	92 mm
Width	1076 mm
Height	632 mm
Weight	25800 g
Pixel pitch	0.99 mm
Aspect ratio	16:9
Product color	Black
Display diagonal	43 \
Display brightness	1100 cd/m²
Display resolution	1024 x 768 pixels
Display technology	Plasma
SCART ports quantity	3
Contrast ratio (typical)	3000:1
Display diagonal (metric)	109 cm
Power consumption (standby)	0.4 W
Power consumption (typical)	292 W
