7
<ARE1350> En
Part Names and Functions
English
INPUT3
G B R
[ON SYNC] [H/V SYNC]
75Ωj2.2kΩ
MAIN POWER
OFF ON
AC INLET
9 0 - = ~
SPEAKER
L
+–
8 Ω – 16 Ω
HD VD

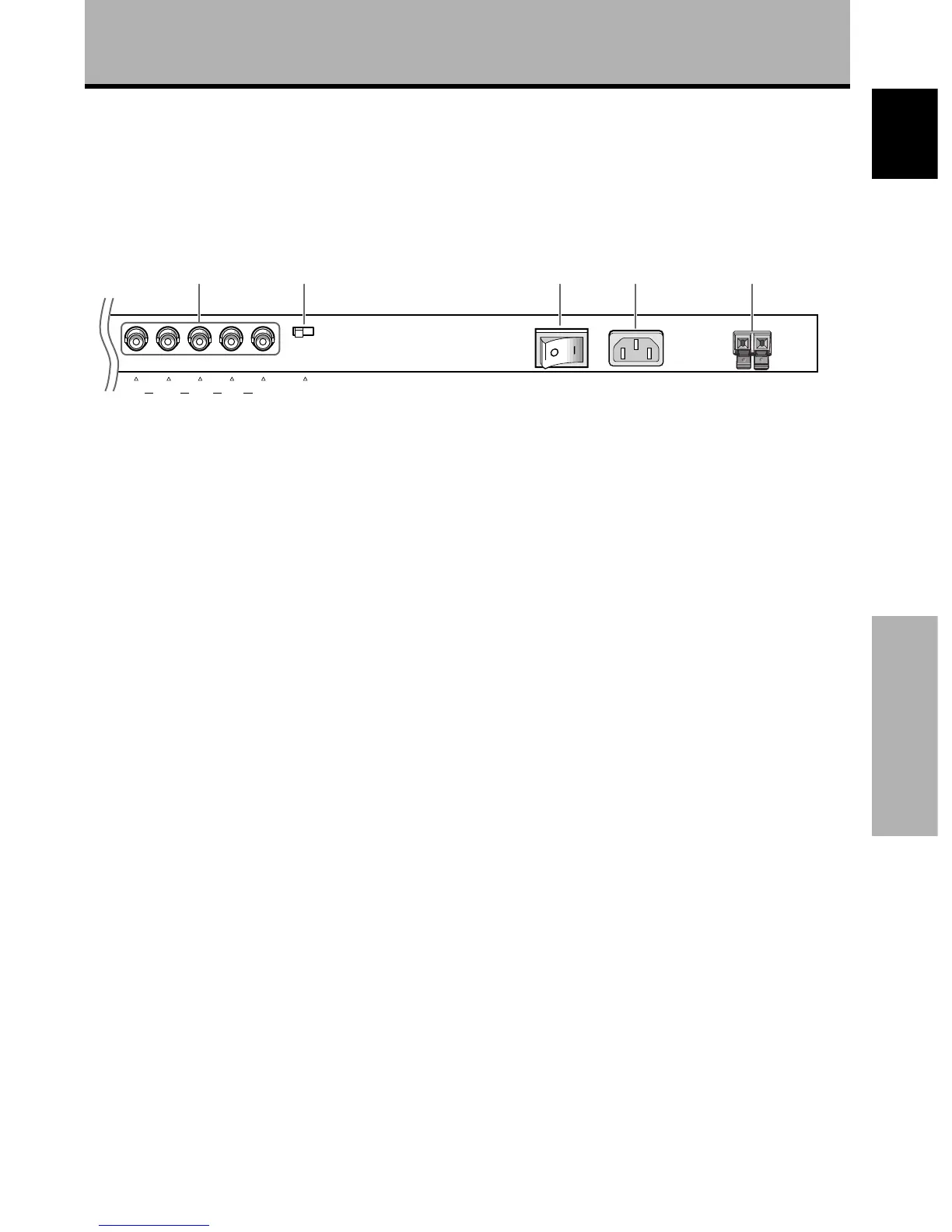

Part Names and Functions
9 INPUT3
For connection of a personal computer (page 10).
0 Synchronizing signal impedance selector switch
Depending on the connections made at INPUT3, it
may be necessary to set this switch to match the
output impedance of the personal computer’s
synchronization signal.
When the output impedance of the personal
computer’s synchronization signal is above 75 Ω, set
this switch to the 2.2 kΩ position (page 10).
- MAIN POWER switch
Use to switch the main power of the unit on and off.
= AC INLET
Use to connect a power cord to an AC outlet (page
12).
~ SPEAKER (L) terminal
For connection of an external left speaker. Connect a
speaker that has an impedance of 8 -16 Ω.
(page 11)
