Operations
English
Operations

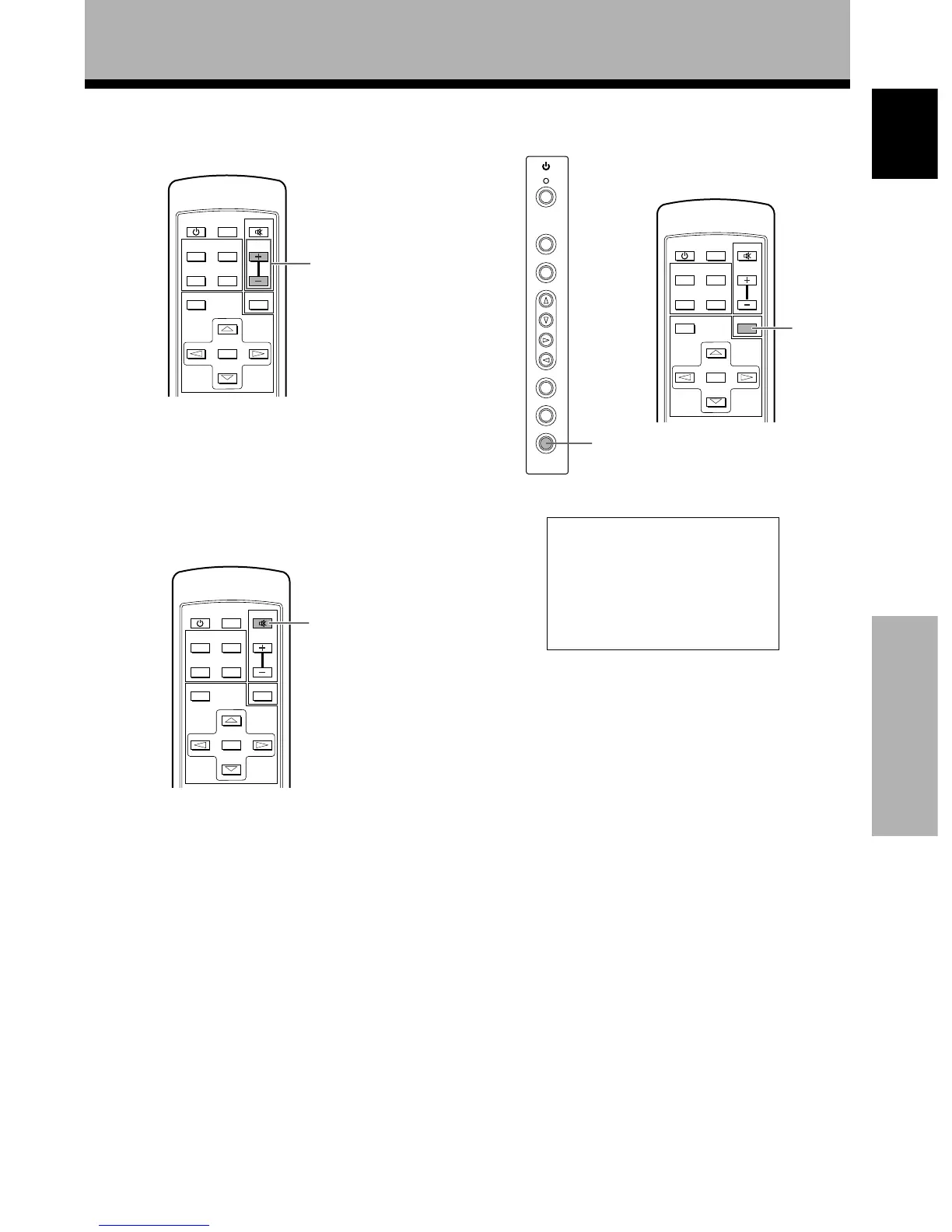

To adjust the volume
Use VOL + or VOL – to adjust the volume of the
connected speakers.
To mute the sound
Press MUTING on the remote control unit.
Press MUTING again to restore the sound.
Muting is automatically canceled in about 8 minutes if no
operations are performed during that time, and the
volume level is adjusted to the minimum level.
Press VOL + or VOL – to adjust the volume at a desired
level.
To confirm display settings
Press DISPLAY.
The currently selected input, screen size and vertical and
horizontal frequencies will be displayed for approximately
3 seconds.
Note
The displayed vertical and horizontal frequencies are
approximations, and may be slightly different from the actual
values.
