Pioneer PDP-502MXE - Supplement 2; Explanation of Terms

Additional Information
27
<ARE1350> En
English
Additional Information
Explanation of Terms
Aspect ratio
The TV screen’s width to height ratio is referred to as its aspect
ratio. The aspect ratio on standard TVs is 4:3 and on wide TVs or
High Definition TVs it is 16:9.
G ON SYNC
This indicates a video signal in the form of a synchronization
signal added to the G (GREEN) signal of the R.G.B signal.
VGA
VGA is short for “Video Graphics Array”.
Generally this indicates a 640 dot x 480 line resolution.
XGA
General term for “eXtended Graphics Array”.
Generally this indicates a 1024 dot x 768 line resolution.
Supplement 2

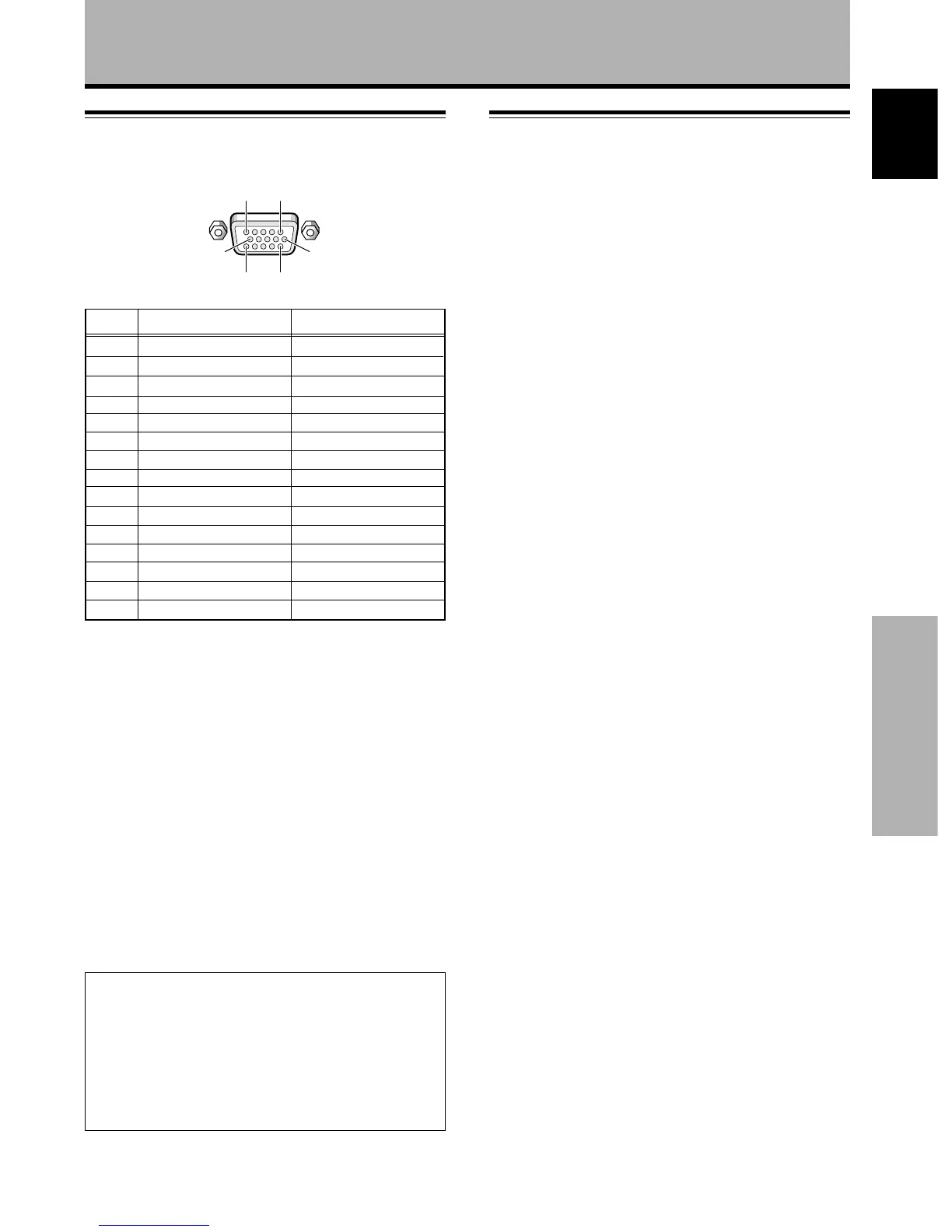

Signal assignment of INPUT 4 (Mini D-sub 15 pin
socket connector)
Input Output
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
R
G
B
NC (No connection)
GND
GND
GND
GND
DDC + 5V
GND
NC (no connection)
DDC SDA
HD or H/V SYNC
VD
DDC SCL
+
+
+
+
NC (No connection)
+
+
+
NC (No connection)
+
+
NC (No connection)
+
+
NC (No connection)
5 1
15 11
6
10
Pin No.
Macintosh is a registered trademark of Apple Computer, Inc.
Microsoft is a registered trademark of Microsoft Corporation.
PC-9800 is a trademark of NEC Corporation.
NEC is a trademark of NEC Corporation.
VESA is a registered trademark of Video Electronics
Standards Association.
Sun Microsystems is a registered trademarks of Sun
Microsystems, Inc.
