Pioneer RX-310 - Page 4

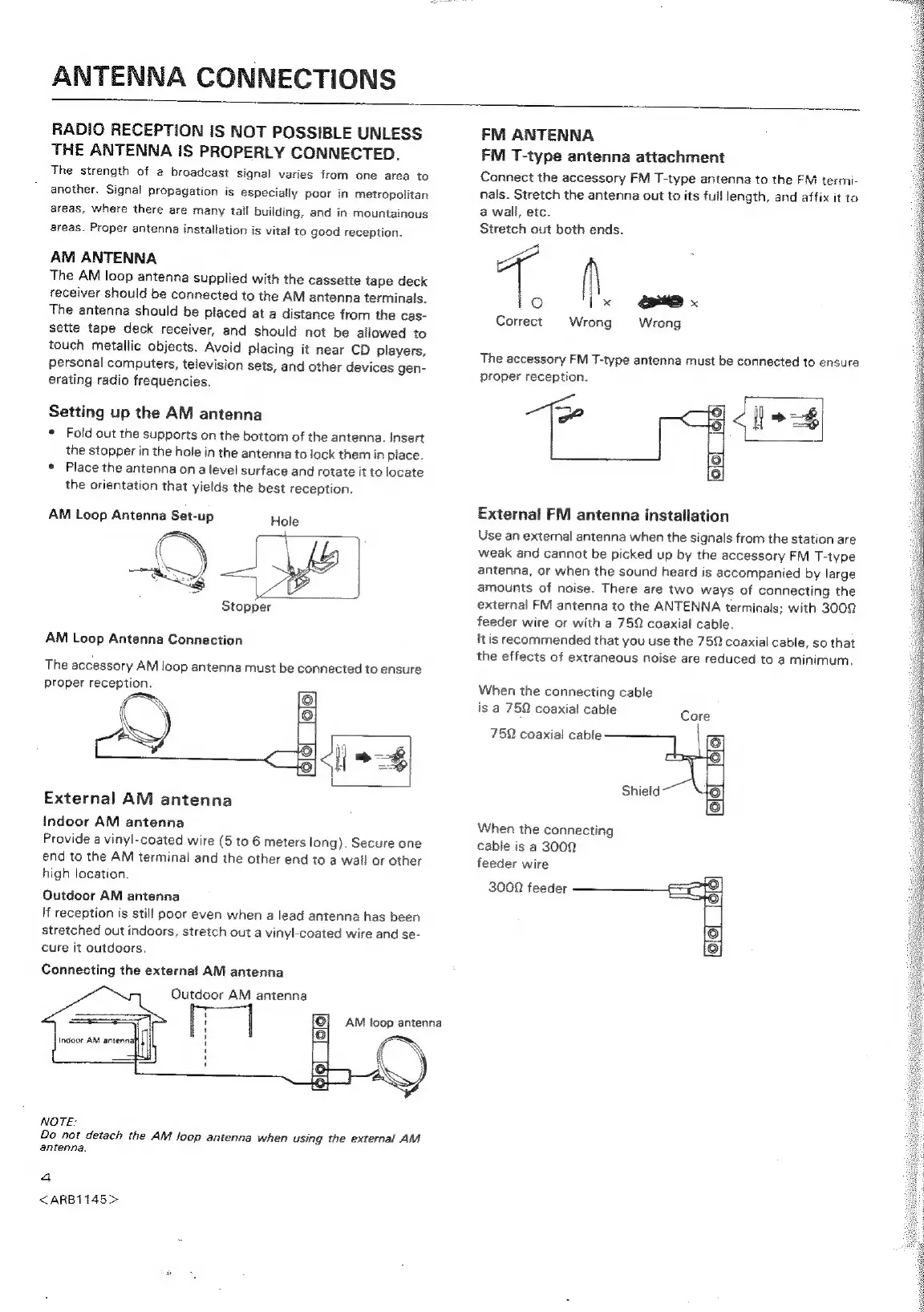

ANTENNA
CONNECTIONS
RADIO
RECEPTION
IS
NOT
POSSIBLE
UNLESS
THE
ANTENNA
IS
PROPERLY
CONNECTED.
The
strength
of
a
broadcast
signal
varies
from
one
area
to
another.
Signal
propagation
is
especially
poor
in
metropolitan
areas,
where
there
are
many
tall
building,
and
in
mountainous
areas.
Proper
antenna
installation
is
vital
to
good
reception.
AM ANTENNA
The
AM
loop
antenna
supplied
with
the
cassette
tape
deck
receiver
should
be
connected
to
the
AM
antenna
terminals.
The
antenna
should
be
placed
at
a
distance
from
the
cas-
sette
tape
deck
receiver,
and
should
not
be
allowed
to
touch
metallic
objects.
Avoid
placing
it
near
CD
players,
personal
computers,
television
sets,
and
other
devices
gen-
erating
radio
frequencies.
Setting
up
the
AM
antenna
°
Fold
out
the
supports
on
the
bottom
of
the
antenna.
Insert
the
stopper
in
the
hole
in
the
antenna
to
lock
them
in
place.
*
Place
the
antenna
on
a
level
surface
and
rotate
it
to
locate
the
orientation
that
yields
the
best
reception.
AM Loop Antenna Set-up Hole
Stopper
AM Loop Antenna Connection
The
accessory
AM
loop
antenna
must
be
connected
to
ensure
proper
reception.
External AM antenna
indoor AM antenna
Provide
a
vinyl-coated
wire
(5
to
6
meters
long).
Secure
one
end
to
the
AM
terminal
and
the
other
end
to
a
wail
or
other
high
location,
Outdoor AM antenna
{f
reception
is
still
poor
even
when
a
lead
antenna
has
been
stretched
out
indoors,
stretch
out
a
vinyl-coated
wire
and
se-
cure
it
outdoors.
Connecting the external AM antenna
Outdoor AM antenna
indoor AM antennal
NOTE:
Do
not
detach
the
AM
foop
antenna
when
using
the
external
AM
antenna.
4
<ARB1145>
AM loop antenna
FM ANTENNA
FM T-type antenna attachment
Connect
the
accessory
FM
T-type
antenna
to
the
FM
termi-
nals.
Stretch
the
antenna
out
to
its
full
length,
and
affix
it
to
@
wall,
etc.
Stretch out both ends.
ro) x Ge x
Correct Wrong Wrong
The
accessory
FM
T-type
antenna
must
be
connected
to
ensure
proper
reception.
External FM antenna installation
Use
an
external
antenna
when
the
signals
from
the
station
are
weak
and
cannot
be
picked
up
by
the
accessory
FM
T-type
antenna,
or
when
the
sound
heard
is
accompanied
by
large
amounts
of
noise.
There
are
two
ways
of
connecting
the
external
FM
antenna
to
the
ANTENNA
terminals;
with
3009
feeder
wire
or
with
a
750
coaxial
cable.
:
It
is
recommended
that
you
use
the
752
coaxial
cable,
so
that
the
effects
of
extraneous
noise
are
reduced
to
a
minimum.
When the connecting cable
is
a
752
coaxial
cable
Core
75
coaxial
cable
©
When
the
connecting
cable
is
a
3000
Shield
(3)
feeder wire
3000
feeder
——_ex]
aca
[elo]
