Controls and displays
02
14
En

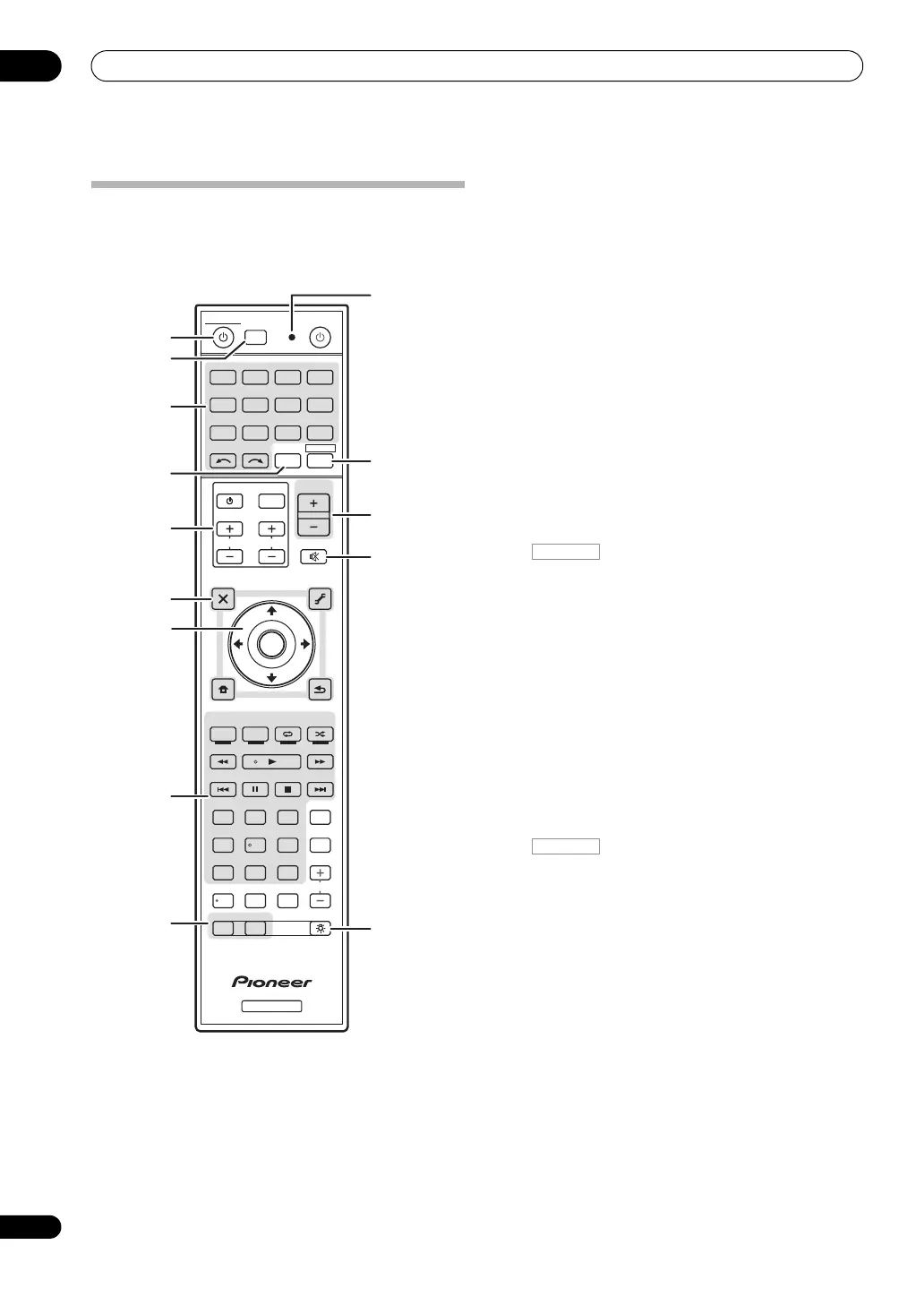

Remote control (In case of SC-LX73)
This section explains how to operate the remote control
for the receiver.
The remote has been conveniently color-coded according
to component control using the following system:
• White – Receiver control, TV control
• Blue – Other controls (See page 47, 48, 51, 52, 53 and
96.)
1 RECEIVER
This switches between standby and on for this receiver.
2
MULTI OPERATION – Use to perform multi
operations (page 94).
R.SETUP – Use to input the preset code when making
remote control settings and to set the remote control
mode (page 78).
3 Input function buttons
Press to select control of other components (page 78).
Use INPUT SELECT to select the input function (page 46).
4
TV CTRL
Set the preset code of your TV’s manufacturer when
controlling the TV (page 92).
5
TV CONTROL
buttons
These buttons are dedicated to control the TV assigned to
the TV CTRL button.
6 Receiver setting buttons
Press first to access:
AUDIO PARAMETER – Use to access the Audio
options (page 71).
VIDEO PARAMETER – Use to access the Video
options (page 73).
HOME MENU – Use to access the Home Menu
(pages 42, 45, 68, 99, 109 and 112).
RETURN – Press to confirm and exit the current
menu screen.
7
///
/
ENTER
Use the arrow buttons when setting up your surround
sound system (see page 99) and the Audio or Video
options (page 71 or 73).
8 Receiver Control buttons
Press first to access:
AUTO/ALC/DIRECT –
Switches between Auto
Surround
(page 55)
, Auto Level Control mode and
Stream Direct mode
(page 58).
STEREO – Switches between stereo playback and
Front Stage Surround Advance modes (page 57).
STANDARD – Press for Standard decoding and to
switch various modes (2 Pro Logic, Neo:6, etc.)
(page 55).
ADV SURR – Use to switch between the various
surround modes (page 57).
THX – Press to select a Home THX listening mode
(page 56).
PHASE CTRL – Press to switch on/off Phase Control
(page 58).
STATUS – Press to check selected receiver settings
(page 76).
PQLS – Press to select the PQLS setting (page 70).
