Pioneer SC-LX73 Operating Instructions

Connecting your equipment
03
34
En

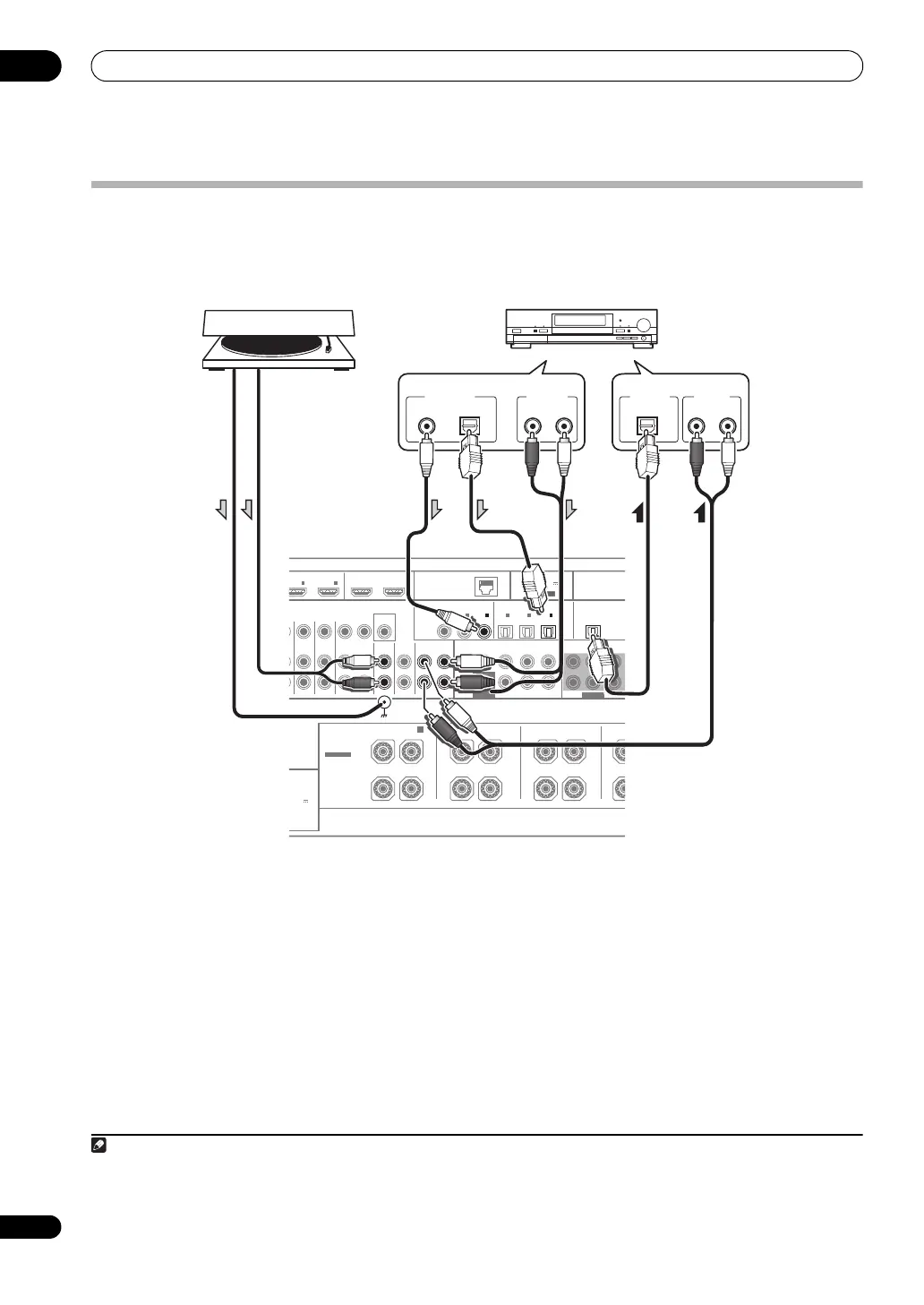

Connecting other audio components
This receiver has both digital and analog inputs, allowing you to connect audio components for playback.
When you set up the receiver you’ll need to tell the receiver which input you connected the component to (see also The
Input Setup menu on page 45).
•If you’re connecting a recorder, connect the analog
audio outputs to the analog audio inputs on the
recorder.
• You can’t hear HDMI audio through this receiver’s
digital out jack.
Turntables only:
•If your turntable has a grounding wire, secure it to the
ground terminal on this receiver.
•If your turntable has line-level outputs (i.e., it has a
built-in phono pre-amp), connect it to the CD inputs
instead.
About the WMA9 Pro decoder
This unit has an on-board Windows Media™ Audio 9
Professional
1
(WMA9 Pro) decoder, so it is possible to
playback WMA9 Pro-encoded audio using HDMI, coaxial
or optical digital connection when connected to a WMA9
Pro-compatible player. However, the connected DVD
player, set-top box, etc. must be able to output WMA9 Pr o
format audio signals through a coaxial or optical digital
output.
COAXIAL OPTICAL
ASSIGNABLEASSIGNABLE
CD-R/TAPE
IN
CD
IN
VIDEO
MONITOR
OUT
OUT
TV/SAT
IN
VIDEO
IN
DVR/BDR PHONO
IN
OUT IN
IN
3
OUT 1
(
CONTROL
)
OUT 2
IN
1
(
DVD
)
IN
1
(
TV/SAT
)
IN
2
(
DVR/BDR
)
IN
OUT
FRONT CENTER SURROUND SURR BACK
(Single)
FH/FW
3
(
VIDEO
)
IN
2
(
CD
)
IN
3
(
CD-R
)
12 V
TRIGGER
1
2
(OUTPUT
12 V
TOTAL
150 mA MAX)
SUBWOOFER
IN
4
LAN
(
10/100
)
(
OUTPUT 5 V
100 mA MAX
)
ADAPTER PORT
PRE OUT
SPEAKERS
SIGNAL
GND
FRONT CENTER
SUBWOOFER
SURROUND
CAUTION:
SPEAKER IMPEDANCE
6 Ω - 16 Ω .
SURROUND BACK
(Single)
B
R
FRONT HEIGHT/WIDE/
LR L R L R
SURROUND
SEE INSTRUCTION
MANUAL
SELECTABLE
DIGITAL OUT
COAXIAL OPTICAL
ANALOG
RL
AUDIO OUT
ANALOG
RL
AUDIO IN
DIGITAL IN
OPTICAL
CD-R, MD, DAT, etc.
Select one Select one
Turntable
Note
1• Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other
countries.
• With WMA9 Pro, sound problems may occur depending on your computer system. Note that WMA9 Pro 96 kHz sources will be
downsampled to 48 kHz.
SC-LX83_73_DLPW.book 34 ページ ２０１０年５月１９日 水曜日 午後２時７分
