About the audio connection
Transferable audio
signals
Sound signal priority
HDMI HD audio
Digital (Coaxial)Conventional digital audio
RCA (Analog)
(White/Red)
Conventional analog audio
Digital (Optical)
Types of cables and
terminals
! With an HDMI cable, video and audio signals
can be transferred in high quality over a single
cable.
About the video converter
The video converter ensures that all video
sources are output through all of the MONITOR
VIDEO OUT jacks. The only exception is HDMI:
since this resolution cannot be downsampled,
you must connect your monitor/TV to the
receiver’s HDMI output when connecting this
video source.
If several video components are assigned to the
same input function (see The Input Setup menu
on Operating Instructions in CD-ROM), the
converter gives priority to HDMI, component,
then composite (in that order).
VIDEO IN
VIDEO
MONITOR OUT
COMPONENT
VIDEO IN
Y
P
B
P
R
YP
B
P
R
COMPONENT VIDEO
MONITOR OUT
HDMI IN HDMI OUT
High picture quality
Video signals can be output
Terminal for connection with
source device
Terminal for connection
with TV monitor
Note
! If the video signal does not appear on your
TV, try adjusting the resolution settings on
your component or display. Note that some
components (such as video game units) have
resolutions that may not be converted. In this
case, try switching Digital Video Conversion
(in Setting the Video options on Operating
Instructions in CD-ROM) OFF.
! The signal input resolutions that can be
converted from the component video input
for the HDMI output are 480i/576i, 480p/576p,
720p and 1080i. 1080p signals cannot be
converted.
! Only signals with an input resolution
of 480i/576i can be converted from the
component video input for the composite
MONITOR OUT terminals.
! For optimal video performance, THX
recommends switching Digital Video
Conversion (in Setting the Video options on
Operating Instructions in CD-ROM) OFF.
This item incorporates copy protection technol-
ogy that is protected by U.S. patents and other
intellectual property rights of Rovi Corporation.
Reverse engineering and disassembly are
prohibited.
En
18
02
Connecting your equipment

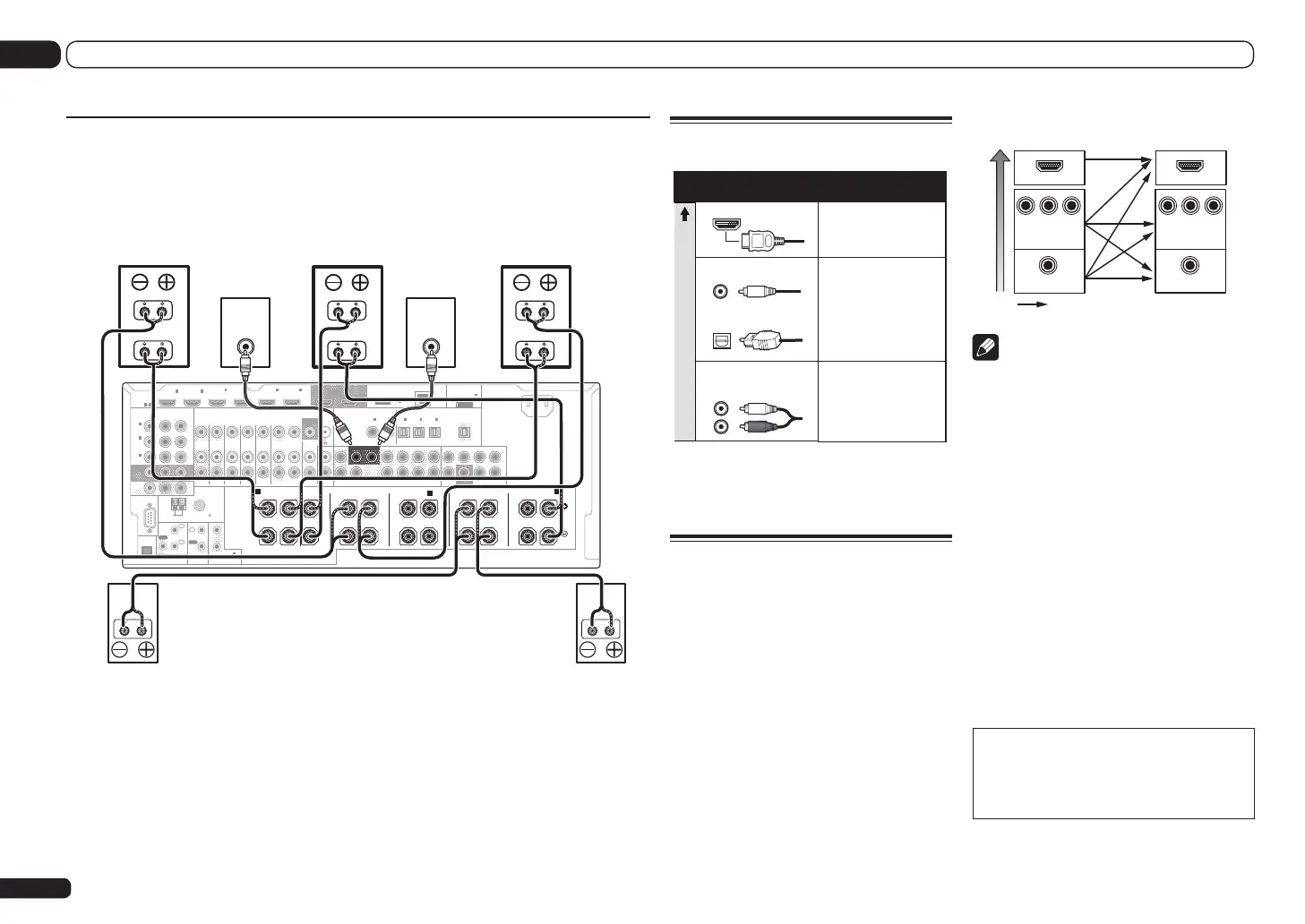

[J] 5.2 channel surround system & Front and Center Bi-amping
connection (High quality surround)
SC-LX85 only
! Select ‘5.1ch F+C Bi-Amp’ from the Speaker System menu.
See Speaker system setting on Operating Instructions in CD-ROM to do this.
RS-232C
ZONE 2
IN IN IN IN
DVR/BDR
OUTOUT
ZONE 3
OUT
TV/SAT VIDEO
IN
PHONO
GND
SIGNAL
CD IN
DVD
OUT 1
(CONTROL)
OUT 2
PRE OUT MULT I CH IN
SUBWOOFER
12
COMPONENT VIDEO
YP
B
P
R
ASSIGNABLE
MONITOR
OUT
ZONE2
OUT
(
DVD
)
IN
1
(
DVR/
BDR
)
IN
2
(
VIDEO
)
IN
3
FRONT
CENTER
SURROUND SURR BACK F HEIGHT F WIDE
L
R
CENTERFRONTSURROUNDSURR BACK
(
CD
)(
DVD
)
COAXIAL
ASSIGNABLE
IN
1
IN
2
(
DVR/BDR
)(
TV/SAT
)
OPTICAL
ASSIGNABLE
IN
1
IN
2
IN
3
OUT
(
VIDEO
)
(
OUTPUT 5
V
0.1 A MAX
)
ADAPTER PORT
CU-RF100
DC OUTPUT
for WIRELESS LAN
(
10/100
)
LAN
(
OUTPUT
5 V
0.6 A MAX
)
FRONT CENTER
SURROUND
SURROUND BACK
RL RLRLRLRL
(
Single
)
(
Single
)
SPEAKERS
FRONT WIDE /
B
FRONT HEIGHT
A A
AC IN
FM UNBAL 75
AM LOOP
ANTENNA
(
OUTPUT 5 V
150 mA MAX
)
CONTROL
IR
OUT
IN
OUT
IN
1
IN
2
2
1
12 V TRIGGER
(OUTPUT 12 V
TOTAL 150 mA MAX)
VIDEO
AUDIO
MONITOR
OUT
HDMI
BD IN
(VIDEO)
IN
1
IN
2
IN
4
(DVD)
IN
5
(DVR/BDR)
IN
6
ASSIGNABLE
1 6
SUBWOOFER
High
Low
LINE LEVEL
INPUT
LINE LEVEL
INPUT
High
Low
High
Low
Subwoofer 2Subwoofer 1
Surround leftSurround right
Bi-amp compatible speaker
Front right
Bi-amp compatible speaker
Front left
Bi-amp compatible speaker
Center
