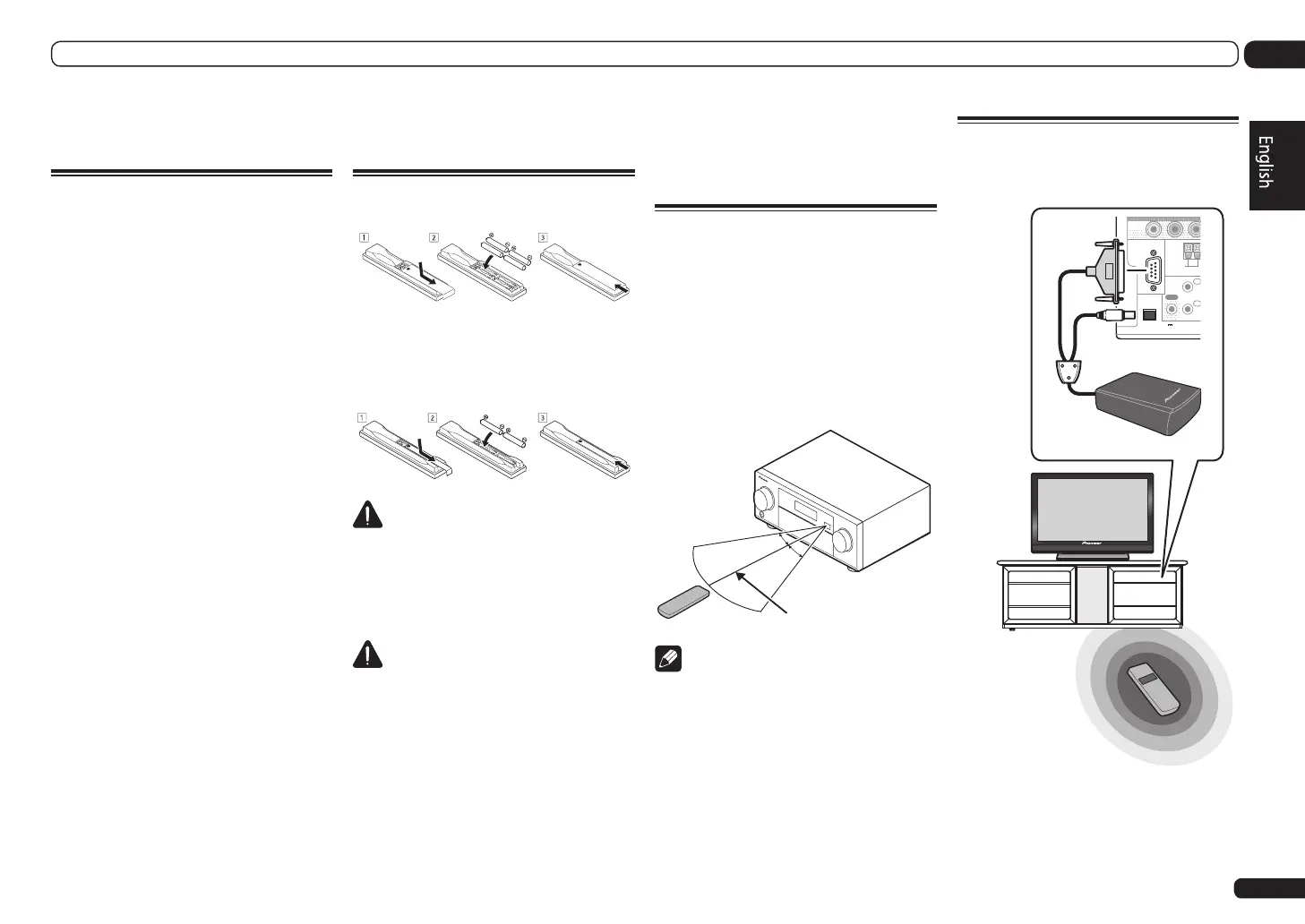

En
5
01
Before you start
Before you start
Checking what’s in the box
Please check that you’ve received the following
supplied accessories:
In case of SC-LX85
! Setup microphone (cable: 5 m)
! Omni-directional remote control (CU-RF100)
! RF adapter
! IR blaster cable x2
! AA/LR6 dry cell batteries x4
! AM loop antenna
! FM wire antenna
! iPod cable
! Wireless LAN converter (AS-WL300)
Quick start guide
CD-ROM (Operating instructions)
Connecting cable
! Power cord
! CD-ROM (AVNavigator)
! Warranty card
! These quick start guide
In case of SC-LX75
! Setup microphone (cable: 5 m)
! Remote control unit
! AAA size IEC R03 dry cell batteries (to confirm
system operation) x2
! AM loop antenna
! FM wire antenna
! iPod cable
! Wireless LAN converter (AS-WL300)
Quick start guide
CD-ROM (Operating instructions)
Connecting cable
! Power cord
! CD-ROM (AVNavigator)
! Warranty card
! These quick start guide
Loading the batteries
In case of SC-LX85
In case of SC-LX75
The batteries included with the unit are to check
initial operations; they may not last over a long
period. We recommend using alkaline batteries
that have a longer life.
WARNING
! Do not use or store batteries in direct sunlight
or other excessively hot place, such as inside a
car or near a heater. This can cause batteries
to leak, overheat, explode or catch fire. It
can also reduce the life or performance of
batteries.
CAUTION
Incorrect use of batteries may result in such
hazards as leakage and bursting. Observe the
following precautions:
! Never use new and old batteries together.
! Insert the plus and minus sides of the
batteries properly according to the marks in
the battery case.
! Batteries with the same shape may have
different voltages. Do not use different
batteries together.
! When disposing of used batteries, please
comply with governmental regulations or
environmental public institution’s rules that
apply in your country/area.
Operating range of remote
control unit
The remote control may not work properly if:
! There are obstacles between the remote
control and the receiver’s remote sensor.
! Direct sunlight or fluorescent light is shining
onto the remote sensor.
! The receiver is located near a device that is
emitting infrared rays.
! The receiver is operated simultaneously with
another infrared remote control unit.
30°
30°
7 m
Note
By connecting an RF adapter to the RS-232C
and CU-RF100 terminals (SC-LX85) /
EXTENSION terminals (SC-LX75), the CU-RF100
omni-directional remote control can be used for
RF two-way communications with the receiver.
For details, see Using the RF communications
function on page 5.
! The RF adapter and CU-RF100 omni-
directional remote control are included with
the SC-LX85, sold separately with the SC-LX75.
Using the RF communications
function
SC-LX85 only
RS-232C
ZONE2
OUT
CU-RF100
AM LOOP
ANTENNA
(
OUTPUT 5 V
150 mA MAX
)
IR
OUT
IN
IN
Receiver
RF Adapter
Operation of the
receiver or other
components placed in
a rack is possible
Operation is possible
in any direction the
remote control is
pointed (360°)
Remote control
operation
With RF two-way communications, the informa-
tion of the receiver’s display can be displayed
on the remote control in your hands and
the remote control can be operated without
