g
!
ecorder,
e
VIDEO
all
outlet.
connection
Set
olarity,
&
n
polarity
ation,
be
he
width

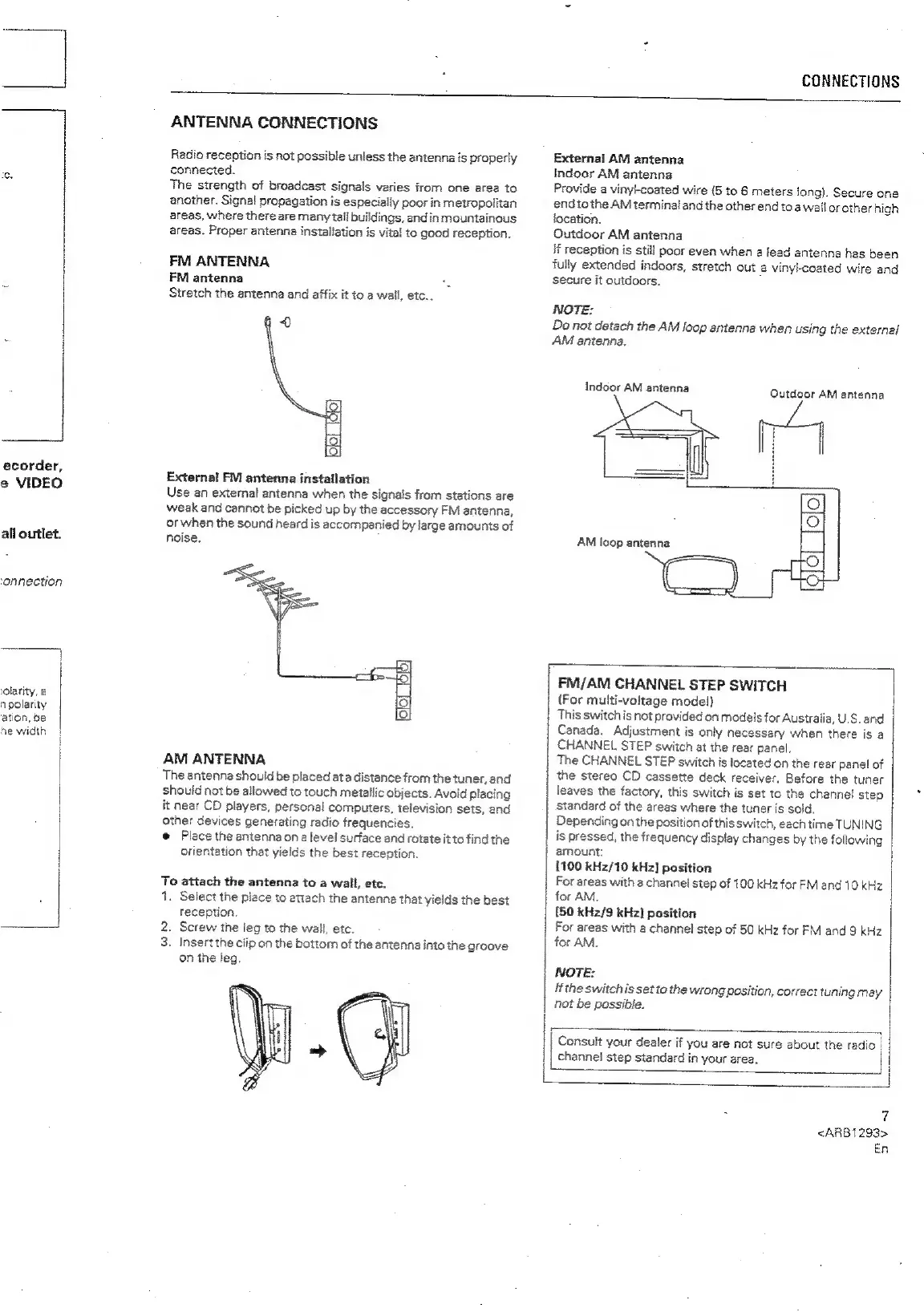

CONNECTIONS
ANTENNA
CONNECTIONS
Radio
reception
is
not
possible
unless
the
antenna
is
properly
connected.
The
strength
of
broadcast
signals
varies
from
one
area
to
another.
Signal
propagation
is
especially
poor
in
metropolitan
areas,
where
there
are
many
tail
buildings,
andin
mountainous
areas.
Proper
antenna
installation
is
vita!
to
good
reception.
FM
ANTENNA
FM
antenna
oe
Stretch
the
antenna
and
affix
it
to
a
wall,
etc..
<0
External
FM
antenna
installation
Use
an
external
antenna
when
the
signals
from
stations
are
weak
and
cannot
be
picked
up
by
the
accessory
FM
antenna,
or
when
the
sound
heard
is
accompanied
by
large
amounts
of
noise.
(olo[To15)
AM
ANTENNA
The
antenna
should
be
placed
ata
distance
from
the
tuner,
and
should
not
be
aliowed
to
touch
metallic
objects.
Avoid
placing
it
near
CD
players,
personal
computers,
television
sets,
and
other
devices
generating
radio
frequencies.
@
Place
the
antenna
on
a
level
surface
and
rotate
itto
find
the
orientation
that
yields
the
best
reception.
To
attach
the
antenna
to
a
wall,
etc.
1,
Select
the
piace
to
attach
the
antenne
that
yields
the
best
reception.
2.
Screw
the
leg
to
the
wall,
etc.
3.
Insert
the
clip
on
the
bottom
of
the
antenna
into
the
groove
on
the
leg.
External
AM
antenna
Indoor
AM
antenna
Provide
a
viny-coated
wire
(5
to
6
meters
long).
Secure
one
end
to
the
AM
terminal
and
the
other
end
toa
wall
or
other
high
location.
Outdoor
AM
antenna
f
reception
is
still
poor
even
when
a
lead
antenna
has
been
fully
extended
indoors,
stretch
out
a
vinyl-coated
wire
and
secure
it
outdoors.
NOTE:
Do
not
detach
the
AM
Joop
antenna
when
using
the
external
AM
antenna.
Indoor
AM
antenna
Outdoor
AM
antenna
FM/AM
CHANNEL
STEP
SWITCH
(For
multi-voltage
model)
This
switch
is
not
provided
on
models
for
Australia,
U.S.
and
Canada.
Adjustment
is
only
necessary
when
there
is
a
CHANNEL
STEP
switch
at
the
rear
panel.
The
CHANNEL
STEP
switch
is
located
on
the
rear
panel
of
the
stereo
CD
cassette
deck
receiver.
Before
the
tuner
leaves
the
factory,
this
switch
is
set
to
the
channel
step
Standard
of
the
areas
where
the
tuner
is
sold.
Depending
on
the
position
of
this
switch,
each
time
TUNING
is
pressed,
the
frequency
display
changes
by
the
following
amount:
{100
kHz/10
kHz]
position
|
For
areas
with
a
channel
step
of
100
kHz
for
FM
and
10
kHz
for
AM.
{50
kHz/9
kHz]
position
For
areas
with
a
channel
step
of
50
kHz
for
FM
and
9
kHz
|
for
AM.
NOTE:
if
the
switch
is
set
to
the
wrong
position,
correct
tuning
may
not
be
possible.
Consult
your
dealer
if
you
are
not
sure
about
the
radio
channel
step
standard
in
your
grea.
|
|
L
7
|
<ARB1293>
En
