Pit Boss 71240 - Assembly; Parts List

ENGLISH


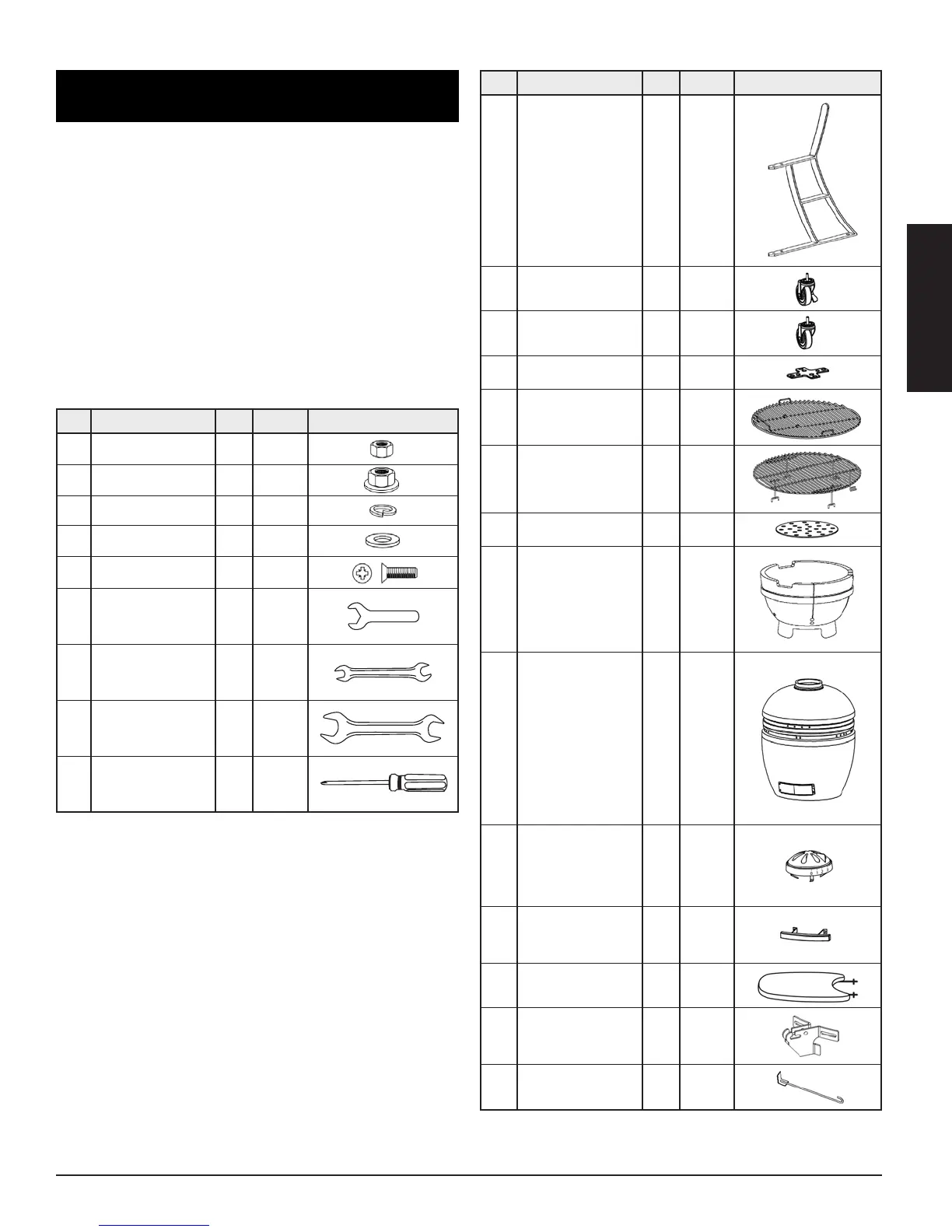

PARTS LIST
Prior to assembly, check all parts against the parts list. Carry out
assembly on a soft surface to avoid scratching the paint. For ease
of assembly, only loosely tighten bolts and then tighten fully when
assembly is complete.
 Do not over-tighten bolts. Only tighten all bolts with
moderate pressure to avoid damaging the bolts or components of
the ceramic charcoal barbecue.
 Remove all packaging before use, but retain the safety
instructions and store them with this product. Ensure that the lid is
closed prior to assembly.
    #  
A Nut - Small 16 76350
B Nut - Large 4 76351
C Locking Washer 16 76352
D Washer 16 76353
E Bolt 16 76354
F Flat Wrench 1 76355
G Wrench 9/11 1 76356
H Wrench 17/19 1 76357
I Screwdriver 1 76358
    #  
1 Support Bracket 4 76201
2 Locking Caster Wheel 2 76202
3 Caster Wheel 2 76203
4 Bracket Crosspiece 2 76204
5 Main Cooking Grid 1 76205
6 Upper Cooking Grid 1 76206
7 Charcoal Plate 1 76207
8 Firebox 1 76208
9 Ceramic Body 1
Lid:76209
Base:76210
Lid Ring:
76211
Base Ring:
76212
Bolt:76213
Washer:
76214
Locking
Washer:
76215
Nut:76216
10 Top Damper Vent 1
Damper:
76217
Bolts:
76218
Nuts:
76219
11 Lid Handle 1
Brackets:
76220
Handle:
76221
12 Side Shelf 2 76222
13 Side Shelf Brackets 4
LFnt/RBck:
76223
LBck/RFnt:
76224
14 Ash Tool 1 76225
