Pit Boss PB0820D3 - Grill Replacement Parts

ENGLISH
25
  
1
2
4
3
9
8
10
11
13
14
15
16
17
18
19
20
22
21
23
24
25
7
6
5
12

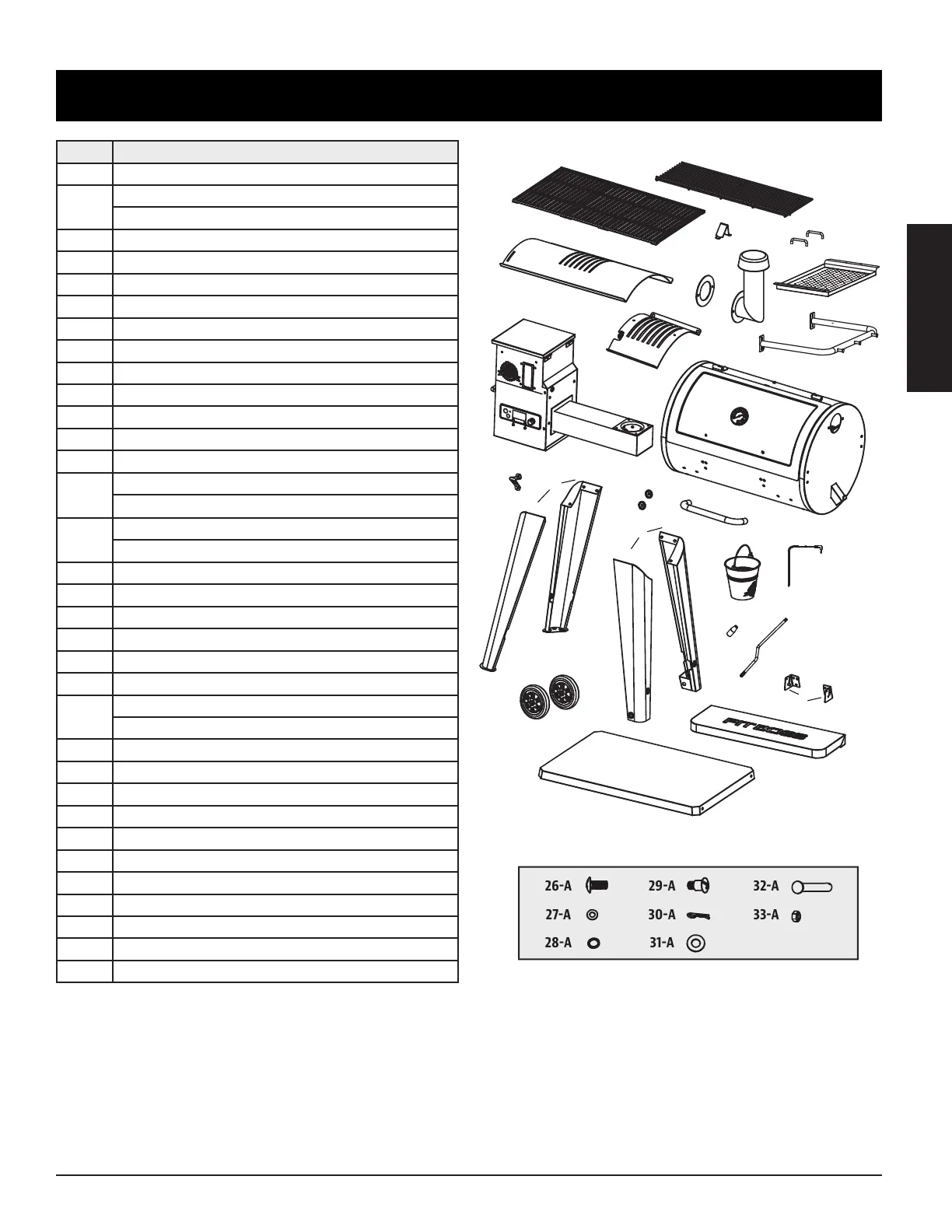

Part# Description
1 Porcelain-Coated Steel Upper Cooking Rack (x1)
2 Porcelain-Coated Cast-Iron Cooking Grid - A (x2)
Porcelain-Coated Cast-Iron Cooking Grid - B (x1)
3 Lid Stopper (x1)
4 Flame Broiler Main Plate (x1)
5 Flame Broiler Slider (x1)
6 Chimney Gasket (x1)
7 Chimney (x1)
8 Serving Tray Handle (x2)
9 Serving Tray (x1)
10 Side Shelf Handle (x1)
11 Hopper Assembly (x1)
12 Main Barrel (x1)
13 Bottle Opener (x1)
14 Stationary Leg - front (x1)
Stationary Leg - back (x1)
15 Leg with Wheel - front (x1)
Leg with Wheel - back (x1)
16 Lid Handle Bezel (x2)
17 Lid Handle (x1)
18 Grease Bucket (x1)
19 Meat Probe (x1)
20 Flame Broiler Adjusting Bar Handle (x1)
21 Flame Broiler Adjusting Bar (x1)
22 Front Shelf Bracket - left (x1)
Front Shelf Bracket - right (x1)
23 Front Shelf (x1)
24 Bottom Shelf (x1)
25 Wheel (x2)
26 Screw (x28)
27 Washer (x28)
28 Locking Washer (x28)
29 Screw (x2)
30 Wheel Cotter Pin (x2)
31 Wheel Washer (x2)
32 Wheel Axle Pin (x2)
33 Nut (x2)
NOTE: Due to ongoing product development, parts are subject to change without notice.
