Pit Boss PB150PPB - Control Board Functions; Control Board Overview

.. 7  ® 
EN
ENGLISH
 OFF
When the temperature control dial is turned to
off, the display screen will remain off.
 SMOKE
This preset temperature operates the grill at the
lowest temperature, without the fire going out.
 Temperature Presets
Using a temperature preset is the easiest way
to cook. Select the desired preset by turning the
temperature control dial.
 Prime Button
Press and hold to activate an extra feed of pellets
to the burn pot.
 Temperature Switch Button
Press to change the temperature unit between
Celsius (ºC) and Fahrenheit (ºF). The default is set
to Fahrenheit (ºF).
 Temperature Control Dial
Turn the temperature control dial (knob) and
select the desired preset temperature.
 HIGH
This preset temperature operates the grill at the
highest temperature.
 Meat Probe Connection Port
Plug-in the adapter end of a meat probe to a
connection port and insert the stainless steel
probe into the thickest potion of the meat. The
readout will appear on the display under MP1.
This give the internal temperature of the meat.
 Component Readouts
Each icon becomes visible while in operation or
blinking if there is an error. See troubleshooting
for error codes. Left-right: Auger, Igniter, Fan, No
Pellets
 ACTUAL Temperature
Displays the actual temperature from inside the
main barrel. Readout is taken by the grill probe
(sensor).
 Meat Probe Readout
Displays the temperature reading of the meat
probe that is connected. The readout corresponds
with the plug-in connection port.
 Temperature Intensity Meter
These bars display the intensity of the set
temperature. Color changes from blue to red as
the temperature increases.
 Temperature Unit Display
The default is set to Fahrenheit (ºF). Press the
Temperature Switch button to switch between
Celsius (ºC) and Fahrenheit (ºF).
 SET Temperature
When a temperature preset is selected by turning
the temperature control dial, the ACTUAL readout
will change to the SET readout momentarily.

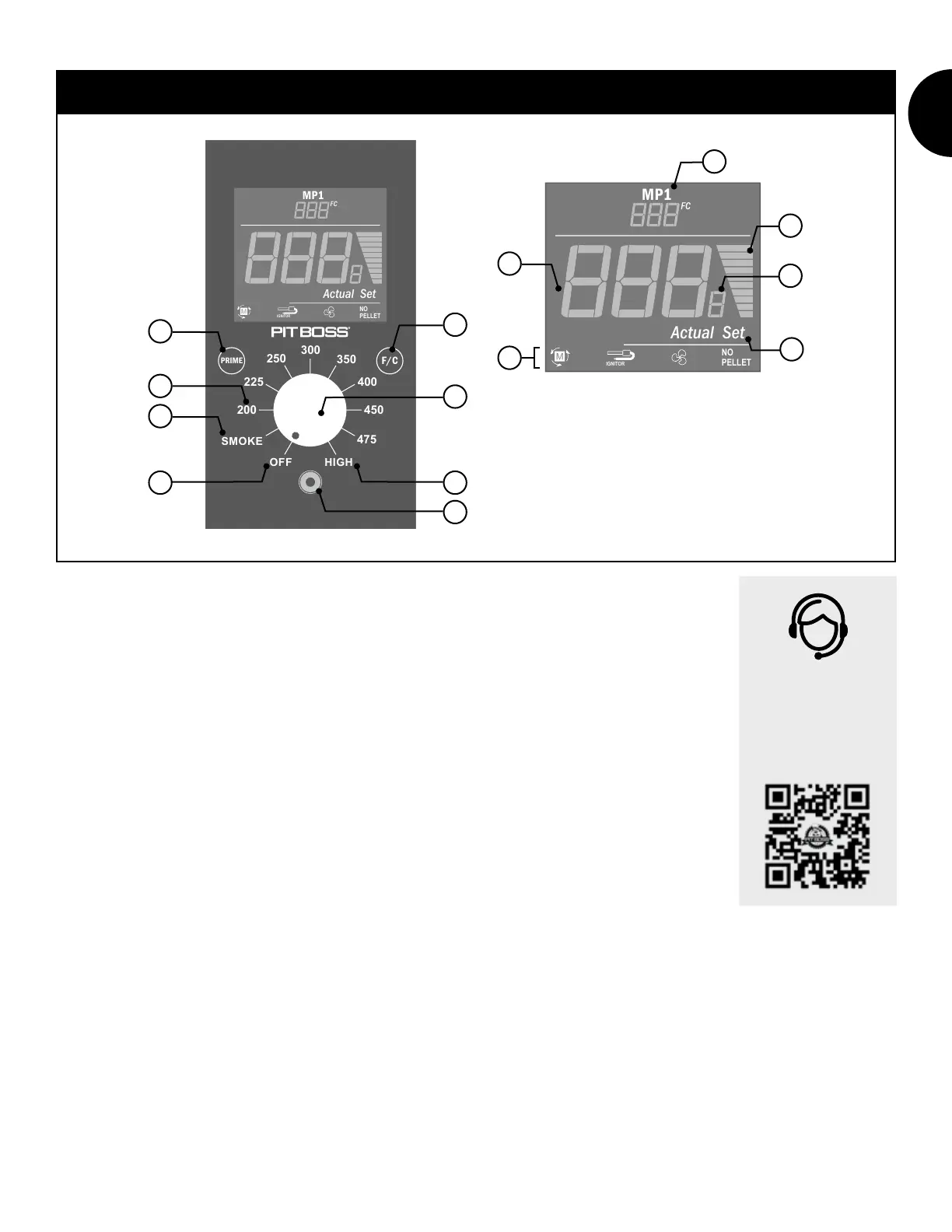

CONTROL BOARD
