6.

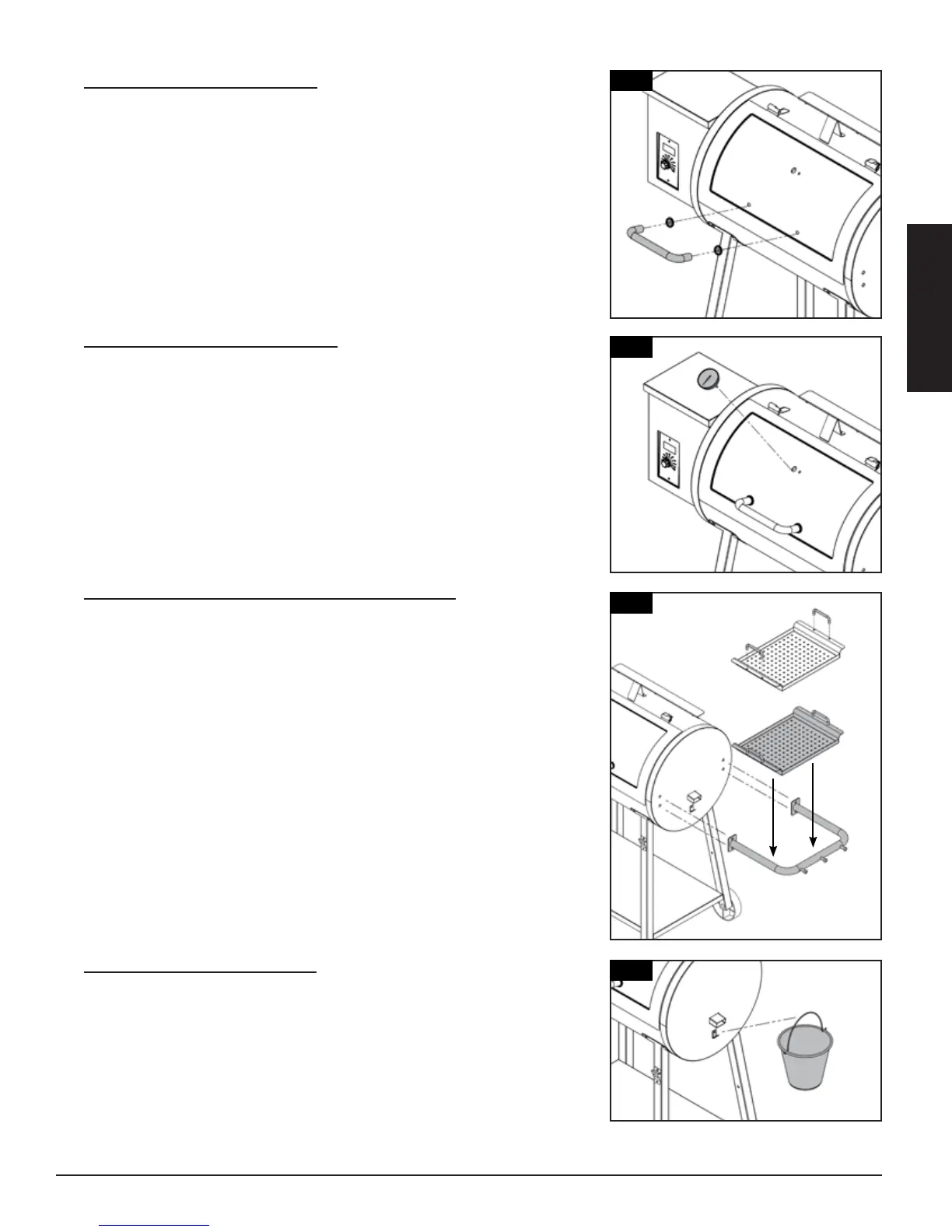

Parts Required:
1 x Lid Handle
(#11)
2 x Lid Handle Bezel
(#10)
Installation:
• Remove the pre-installed hardware from the lid handle. From inside
the barrel lid, insert one screw to protrude to the outside. Add a bezel
on the screw, then hand-tighten the screw, locking washer, and washer
(from the inside) into the lid handle.
• Repeat same installation for other end of lid handle.
7.
Parts Required:
1 x Thermometer Kit
(#9)
Installation:
• Remove the pre-installed nut from the thermometer.
• Insert the thermometer into the hole provided on the top of the lid on
the main barrel, then secure by re-installing the nut from the inside.
Rotate the thermometer so the text is level and upright.
NOTE: If rotation is askew, this will result in incorrect readings.
8. ,
Parts Required:
1 x Side Shelf Handle
(#18)
1 x Serving Tray
(#17)
1 x Serving Tray Handles
(#16)
Installation:
• Remove the four pre-installed screws from the side of the main barrel.
Mount the side shelf handle onto the main barrel using four screws
previously removed.
• Mount serving tray handles to serving tray using the two pre-installed
screws on each handle. Place the serving tray onto the side shelf
handle. It will rest directly on the frame of the side shelf handle.
IMPORTANT: Avoid using the side shelf handle to move or lift the
grill. The weight of the unit will cause the side shelf handle to bend
or break, which is not covered by warranty.
9.
Parts Required:
1 x Grease Bucket
(#15)
Installation:
• Place the grease bucket on the spout hook on the end of the main
barrel. Ensure it is level to avoid grease spills.
