ENGLISH
11

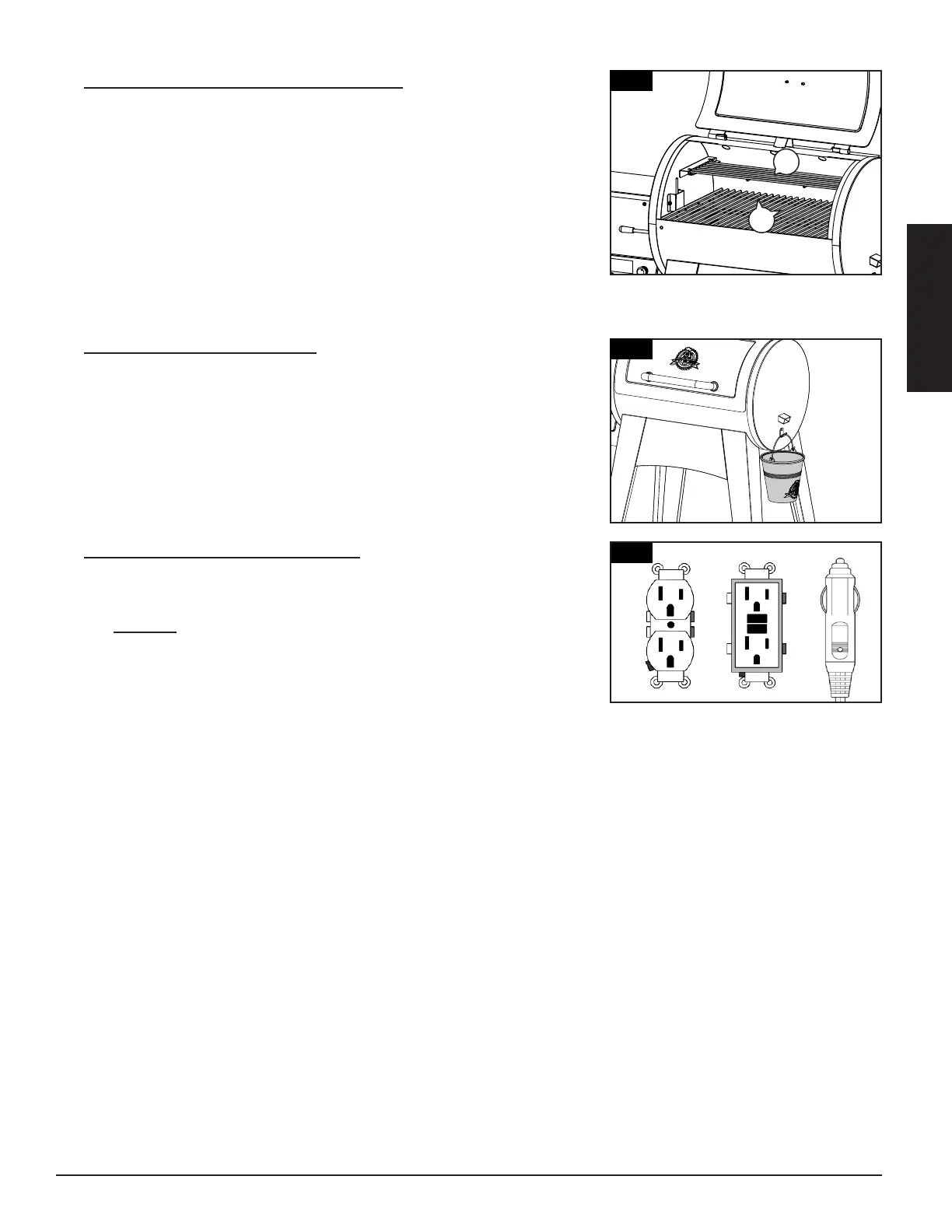

9.
Parts Required:
2 x Cooking Grids (#3)
1 x Upper Cooking Rack (#4)
Installation:
• Place the Cooking Grids, side-by-side, on the grid ledges inside the
Main Barrel. Place the pper ooking ack on the upper ledge inside
the Main Barrel. The cooking rack will lock into place.
NOTE: To maintain the searing and grilling performance of your
Cooking Grids, regular care and maintenance is required.
10.
Parts Required:
1 x Grease Bucket (#22)
Installation:
• Place the grease bucket on the spout hook on the end of the Main
Barrel. Ensure it is level to avoid grease spills.
• The unit is now completely assembled.
11.
•
This appliance requires 110-120 volt, 60 Hz, 250 W. It must be a 3-prong
grounded plug. Ensure grounded end is not broken off before use. The
control uses a 110-120 volt, fast-blow fuse to protect the board from
the ignitor.
•
This appliance will work on most GFCI outlets, with a recommended
size of 15 amp service. If your GFCI outlet is highly sensitive to power
surges, it will likely trip during the start-up phase of operation. During
the start-up phase, the ignitor draws 200-700 watts of electricity
which can be too much power for a GFCI outlet to handle. Each time it
trips, it increases in sensitivity. If the GFCI keeps tripping, replace the
outlet or change to a non-GFCI outlet.
•
Disconnect the ignitor from the main wiring harness. Use the manual
start-up procedure. A Pit Boss® unit can operate using a 12 volt,
100 watt inverter plugged into your automobile outlet. To use the
automatic ignitor, it is recommended to use a minimum of a 1000
watt inverter.
IMPORTANT: Disconnect unit from power source when not in use.
10
11
22
9
4
3
